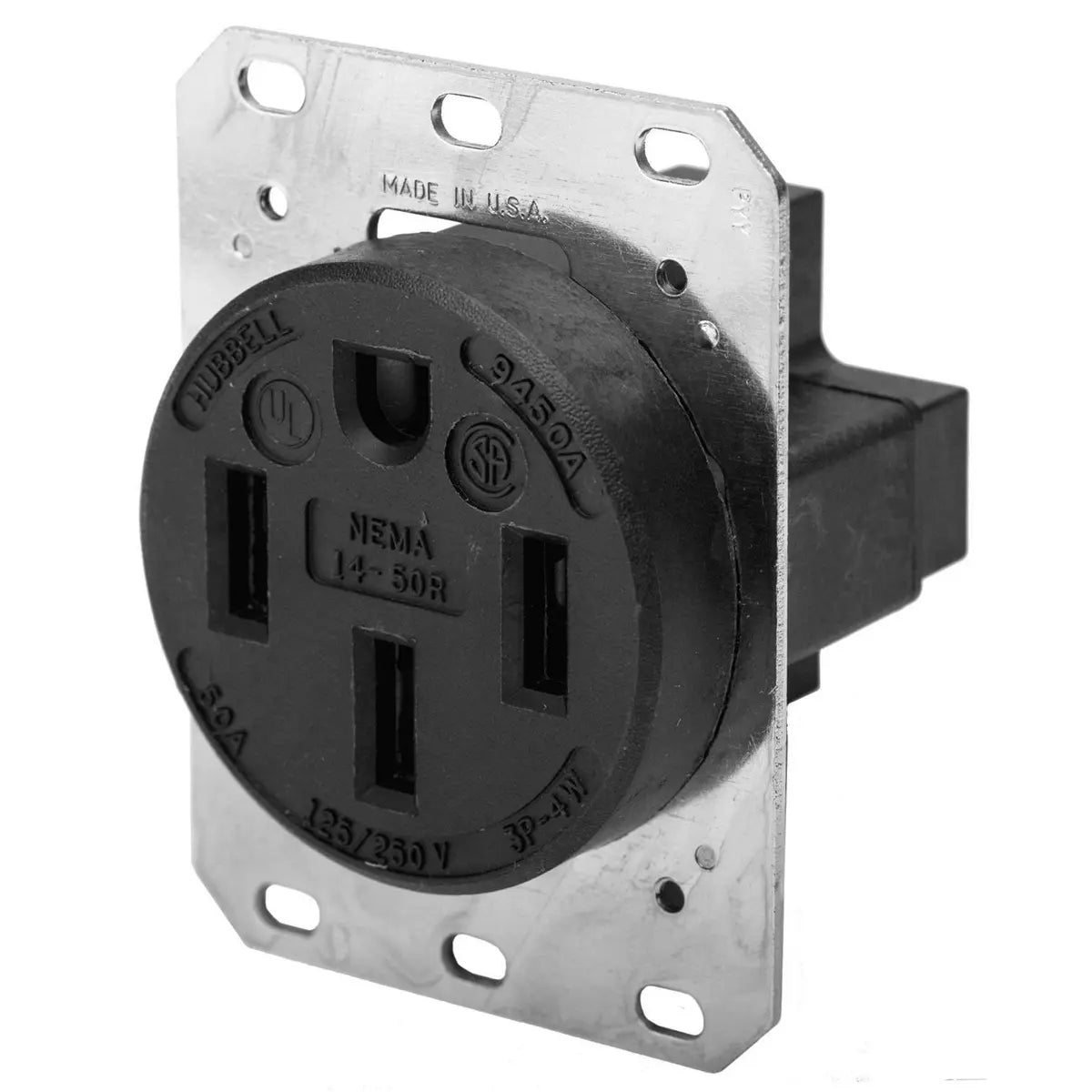

Wiring HBL9450A Straight Blade Power Receptacle 50 Ampere

Product Description

The WIRING HBL9450A is a straight blade power receptacle designed for robust performance. Rated at 125/250 V and 50 Ampere, this single receptacle features a 14-50R configuration, 3 poles, and 4 wires with grounding. Constructed from reinforced thermoplastic polyester, it ensures durability in demanding environments. Ideal for EV charging and other high-power applications.

• Configuration: 14-50R
• Current Rating: 50 Ampere
• Operating Temperature: -40 to 75 Deg C

Product Highlights

Durable power receptacle with a 14-50R configuration, suitable for EV charging and high-power applications.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBL9450A

Technical Specifications

• Type: Single
• Configuration: 14-50R
• Voltage Rating: 125/250 V
• Current Rating: 50 Ampere
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Material: Reinforced Thermoplastic Polyester
• Face Outer Diameter: 2.44 Inch
• Mounting Depth: 1.81 Inch
• Approval: UL, CSA
• Blade Material: 0.04 Inch Brass
• Enclosure: IP20
• Operating Temperature: -40 to 75 Deg C
• Amps: 50
• Wires: 4-wire grounding
• Voltage: 125/250
• NEMA rating: 14-50R
• Grade: Industrial grade
• Usage: Indoor-rated unless in an outdoor enclosure
• Wiring: 12AWG through 6AWG
• Wired: Back and side wired
• Phase: Single
• Wattage: 12500
