Wiring HBL7301A Rcpt Nema18-60r

Brand: WIRING
SKU: HBL7301A
Availability: Out Of Stock
$230.03
$230.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

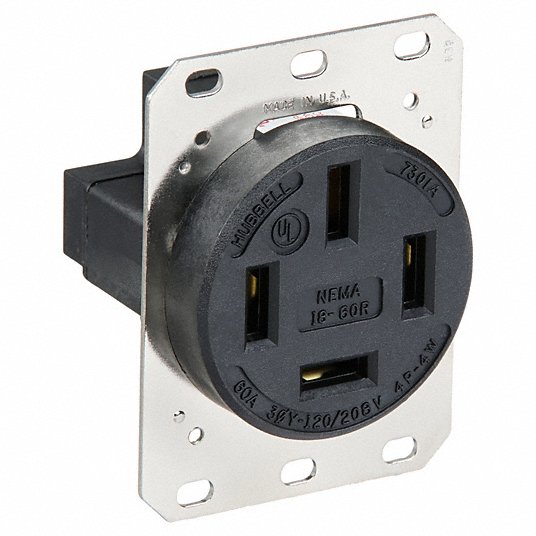

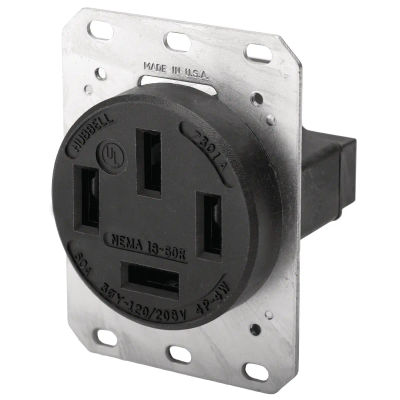

The WIRING HBL7301A is a straight blade receptacle with a NEMA 18-60R configuration. Rated for 120/208 Volt AC 3-Phase and 60 Amp, this heavy-duty industrial grade receptacle features a non-grounding design with 4 poles and 4 wires. Constructed from reinforced thermoplastic polyester, it is suitable for temperatures ranging from -40 to 75 Deg C.

  • Straight Blade Receptacle
  • NEMA 18-60R Configuration
  • Heavy Duty Industrial Grade

Product Highlights

Ideal for industrial applications requiring a robust and reliable power connection, ensuring consistent power delivery and enhanced safety.

Product Information

Standard Information

  • Brand: WIRING
  • Manufacturer Part Number: HBL7301A
  • Country of Origin: USA
Technical Specifications
Configuration
NEMA 18-60R
Voltage Rating
120/208 Volt AC 3-Phase
Current Rating
60 Amp
Number of Poles
4
Number of Wires
4
Ground Type
Non-Grounding
Material
Reinforced Thermoplastic Polyester
Approval
UL, CSA
Power Rating
7.5 HP, 12480 Watt
Dielectric Voltage
2000 Volt
Wire Size
12 to 4 AWG
Grade
Heavy Duty Industrial
Temperature Rating
-40 to 75 Deg C
Applicable Standard
NEMA WD-6
Application
Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Length
3.28 in
Width
1.81 in
Phase
Three Phase
Wattage
12480 W
Nema Rating
18-60R
Receptacle Type
Single
NEMA Receptacle Configuration
18-60R
Wire Connection Types
Screw
Polarized
Yes
Housing Color
Black
Grounding
Non-Grounded
Surge Protection
No
Connection Orientation
Straight
Contact Material
Brass
Housing Material
Thermoplastic
IP Rating
IP20
Maximum Operating Temperature
167 °F
Minimum Operating Temperature
-40 °F
Mount Type
Flush
Number of Gangs
1
Overall Depth
2.4 in
UL 94 Flammability Rating
HB
Wire Connection Type
Screw Terminals
Amperage
60 Amp
Poles and Wires
3 Pole, 4 Wire
Receptacle
NEMA 18-60
Voltage
3 Phase Wye 120/208 Volts
