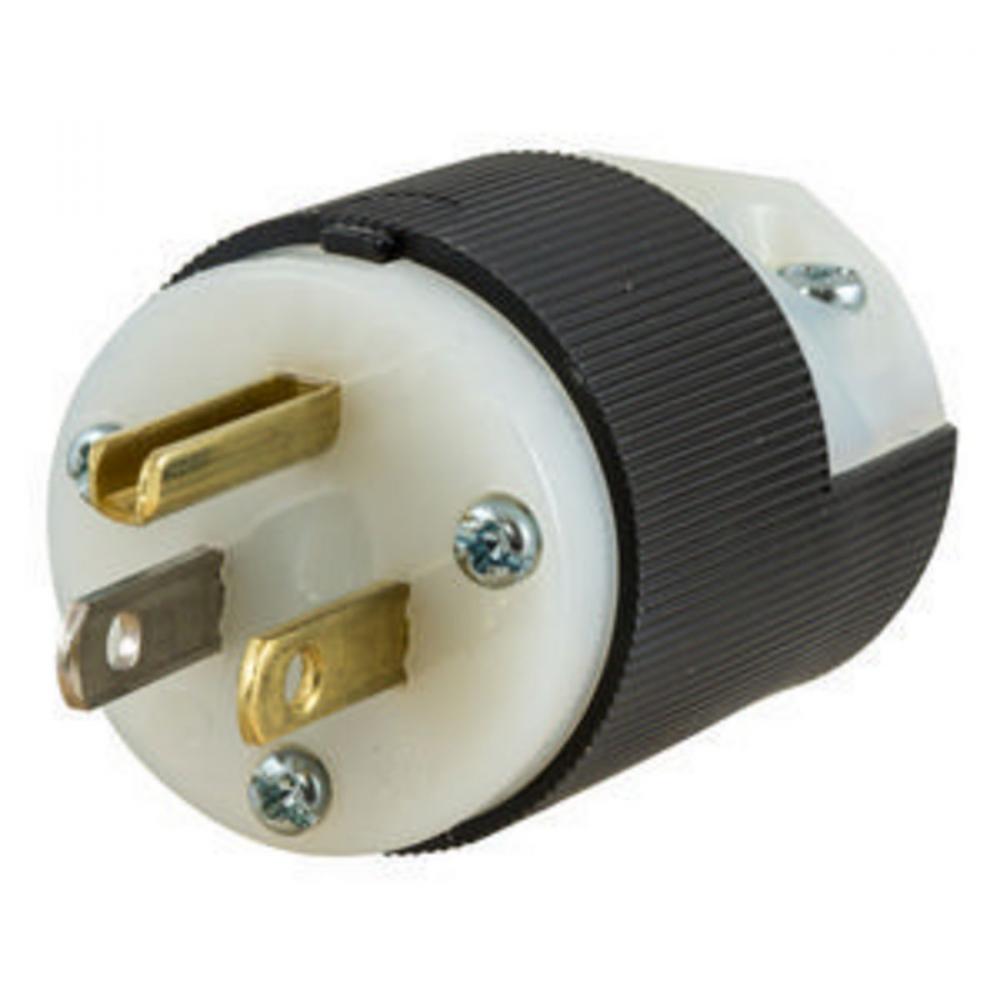

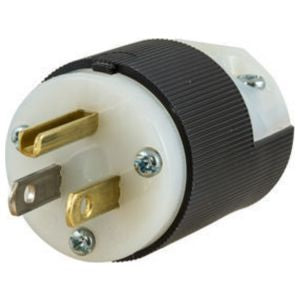

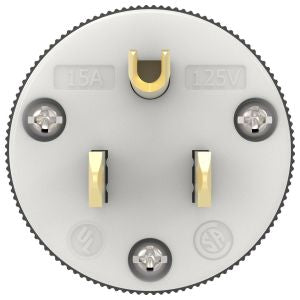

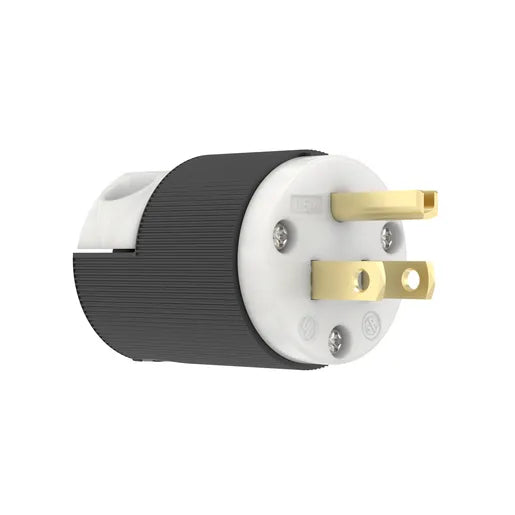

WIRING HBL5266C Straight Blade Male Plug 15A 125V NEMA 5-15P

Product Description

The WIRING HBL5266C is a straight blade male plug designed for industrial and commercial use. It is rated for 15A at 125V and utilizes a NEMA 5-15P configuration. The plug is made from ribbed nylon, which provides durability against impacts and chemical exposure. It accommodates wire sizes ranging from #18 AWG to #10 AWG. This plug is ideal for all portable cord applications.

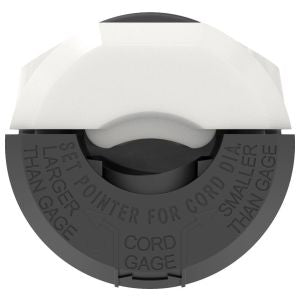

• Includes a VARI-SIZE adjustable cord clamp.
• Features fast lead assembly screws for easy installation.
• Beveled housing design minimizes the chance of snagging.

Product Highlights

The WIRING HBL5266C provides secure connections for various electrical needs.

Product Information

Standard Information

• Brand: WIRING DEVICE-KELLEMS
• MPN: HBL5266C

Technical Specifications

• Type: Plug
• Amperage Rating: 15A
• Voltage Rating: 125V AC
• NEMA Rating: 5-15P
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG
• Material: Polycarbonate
