Wiring HBL430MI7W Rcpt-3p4w30a480v

Brand: WIRING
SKU: HBL430MI7W
Availability: Out Of Stock
$2,068.85
$2,068.85
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

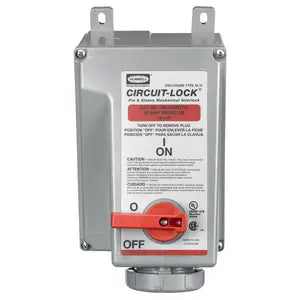

The WIRING HBL430MI7W is a pin and sleeve mechanical interlock with a watertight construction. Rated at 480 V 3-Phase and 30 Ampere, it features a spring-loaded cover and a 1 Inch NPT hub. Constructed from Valox material with a NEMA 4X/12, IP67 enclosure, it is suitable for use in temperatures ranging from -40 to 75 Deg C.

  • Pin and Sleeve Mechanical Interlock
  • Watertight construction
  • Valox material
  • NEMA 4X/12, IP67 enclosure

Product Highlights

This mechanical interlock is ideal for high ampacity watertight connections and meets UL and CSA standards.

Product Information

Standard Information

  • Brand: WIRING
  • Manufacturer Part Number: HBL430MI7W
Technical Specifications
Type
Mechanically Interlocked
Constructional Feature
Watertight
Voltage Rating
480 V 3-Phase
Current Rating
30 Ampere
Number of Poles
3
Number of Wires
4
Door Type
Spring Loaded Cover
Hub Type
1 Inch NPT
Material
Valox
Enclosure
NEMA 4X/12, IP67
Power Rating
15 HP at 480 VAC 3 Phase
Operating Temperature
-40 to 75 Deg C
Approval
UL, CSA
Application
High Ampacity Watertight Connections
Catalog Number
HBL430MI7W
Environmental Conditions
Watertight
EU RoHS Indicator
No
Item Type
Mechanically Interlocked Single
Material - Mounting Hardware
Screw Mounting
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V AC Min Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 Classification Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Outdoor - 4X (Watertight, Washdown) Indoor - 12 (Dust-tight, Falling Dirt and Noncorrosive Liquids). Environmental - Operating Temperature - Max. Continuous +75°C Min. Continuous -40°C Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External adjustable feet Mechanical - Product Identification - Identification and ratings are part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Series
Non-Fused
Specifications
Base - Valox® Conduit Hub - Zinc Enclosure Gasket - Neoprene Face - Valox® Shaft Seal - Neoprene
Style
Standard Service
UPC
783585405971
Amperage Rating
30 A
Connectivity
Pressure Terminal Screws
Phase
Three Phase
Voltage Rating Description
3 Phase 480 VAC
Wattage
14400
Number Of Poles
3-Pole
Number Of Wires
4-Wire
Wire Size
#12 AWG to #8 AWG
Industry Standard(s)
UL Listed
Nema Rating
Non-NEMA
