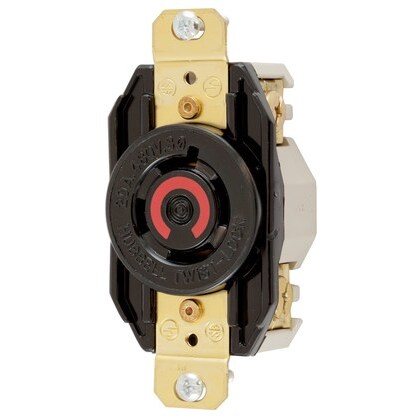

Wiring HBL2430 Hubw Hbl2430 Lkg Rcpt-Nma L16-20R

Product Description

The WIRING HBL2430 is a locking receptacle with corrosion resistant construction. Rated at 480 VAC 3-Phase and 20 Ampere, this single locking receptacle features a nylon face and back/side wiring options. It is designed for flush mounting and is UL 94/498 and CSA C22.2 approved. The contact material is brass and the temperature rating is -40 to 60 Deg C.

• Locking Receptacle
• Corrosion Resistant
• Flush Mount

Product Highlights

Durable locking receptacle with nylon face, suitable for industrial applications requiring secure and reliable power connections.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBL2430

Technical Specifications

• Type: Single Locking
• Constructional Feature: Corrosion Resistant
• Configuration: L16-20R
• Voltage Rating: 480 VAC 3-Phase
• Current Rating: 20 Ampere
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Material: Nylon Face
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Contact Material: Brass
• Temperature Rating: -40 to 60 Deg C
• Horsepower: 5 hp
• NEMA Rating: NEMA 4X/12
• Grade: Industrial
• Enclosure: IP20
• Terminal Type: Screw
• Terminal Clamp Material: 0.04 in brass
• Terminal Screw Material: 10 to 32 bronze (white finish on neutral screw when used)
• Ground Screw Material: 10-32 bronze (green)
• Contact Spring: 0.04 in brass
• Mounting Screw: steel zinc plated
• Cover (Top) Material: Black nylon
• Base Material: nylon polyester
• Ground Contact: 0.04 in brass
• Bridge (Mounting Strap): 0.05 in brass
• Back Plate: 0.04 in brass
• Rivet: brass
• Auto Ground Clip: Stainless steel
• Dielectric Voltage Withstand: 2000 V minimum
• Terminal Accommodation: 20 A, 12 AWG
• Flammability: HB or better per UL 94 or CSA 22.2 no. 0.6
• NEMA Configuration: L16-20R
