Wiring HBL20403 Hubbellock Grd Rcpt 3P4W30A600V

Product Description

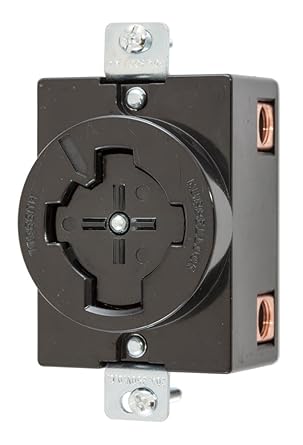

The WIRING HBL20403 Hubbellock grounding receptacle is a single-type power interrupting receptacle with a rating of 600 VAC 30 Ampere and 250 VDC 20 Ampere. It features 3 poles and 4 wires with a grounding configuration. Constructed with phenolic material and an IP30 enclosure, it is UL and CSA approved.

• Power Interrupting Receptacle
• 3 Poles and 4 Wires
• Rated for 600 VAC 30 Ampere, 250 VDC 20 Ampere

Product Highlights

The HBL20403 is ideal for industrial applications requiring a robust and safe power connection.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBL20403

Technical Specifications

• Type: Receptacle
• Rating: 600 VAC 30 Ampere, 250 VDC 20 Ampere
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Material: Phenolic
• Face Outer Diameter: 1.94 Inch
• Approval: UL, CSA
• Enclosure: IP30
• Catalog Number: HBL20403
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: No
• Item Type: 20A/30A Hubbellock® Grounding Receptacle
• Material - Mounting Hardware: Screw Mounting
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 2,000V minimum Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors Environmental - Moisture Resistance - IP30 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #10 AWG - #6 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Specifications: Bridge - Zinc plated steel Contacts - Bronze Device Color - Black Housing - Thermoset Shutter - Thermoset Terminal Screws - Zinc plated steel
• Amperage Rating: 20/30 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 20/30 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 250 VDC/600 VAC
• Voltage Rating Description: 250 VDC/600 VAC
• Number Of Poles: 3-Pole
• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG
• Voltage: 250 Volts, 600 Volts
