Wiring Device-Kellems USB20AC5 USB Charger Receptacle 125 VAC 20 A 2500 W

Product Description

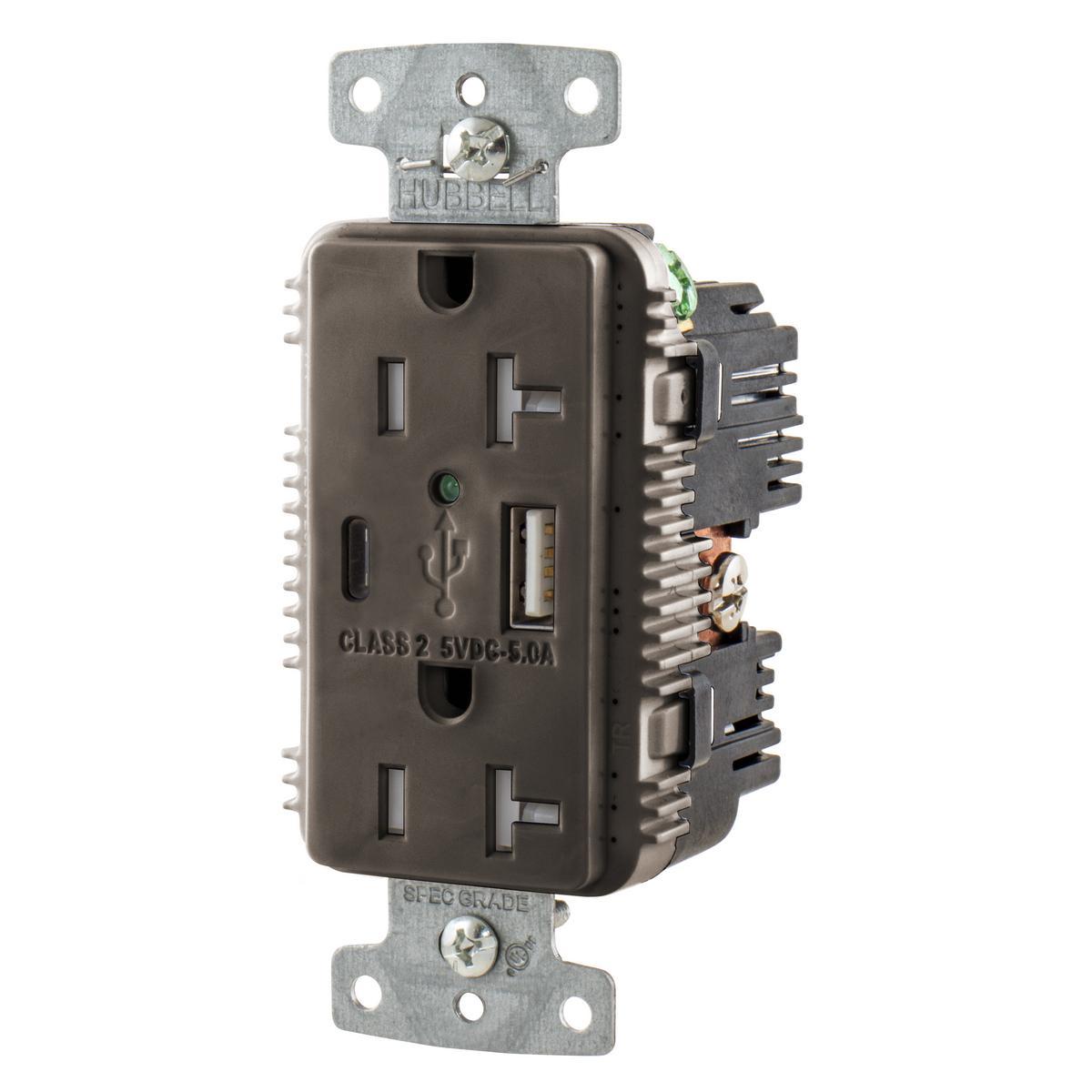

The Wiring Device-Kellems USB20AC5, manufactured by Hubbell, is a duplex grounding tamper-resistant standard USB charger receptacle. It is designed to provide reliable charging capacity for devices.

• Type-A USB 2.0 and USB-C compatibility
• Rated for heavy-duty use with a minimum of 10,000 insertions
• Environmental rating of -40 to 75 degrees C

Product Highlights

This receptacle supports quick and efficient charging of several devices simultaneously, ensuring users can stay powered while utilizing the latest USB technology.

Product Information

Standard Information

• Manufacturer: Hubbell
• Part Number: USB20AC5 HW

Technical Specifications

• Connection: Screw Terminal
• Environmental Conditions: -40 to 75 degrees C Operating, NEMA 5-20R Enclosure
• Grade: Commercial
• Material: Composite
• Mounting: Threaded
• Size: 1.75 inches W x 1.82 inches D x 3.28 inches H
• Type: Duplex Grounding Tamper-Resistant Standard
• USB Quantity: 1
• USB Rating: 5 A, 5 VDC
• USB Type: Type-A USB 2.0/C
• Wire Size: 14 to 10 AWG
• Electrical Ratings: 125 VAC, 20 A, 2500 W
• Phase: 1
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
