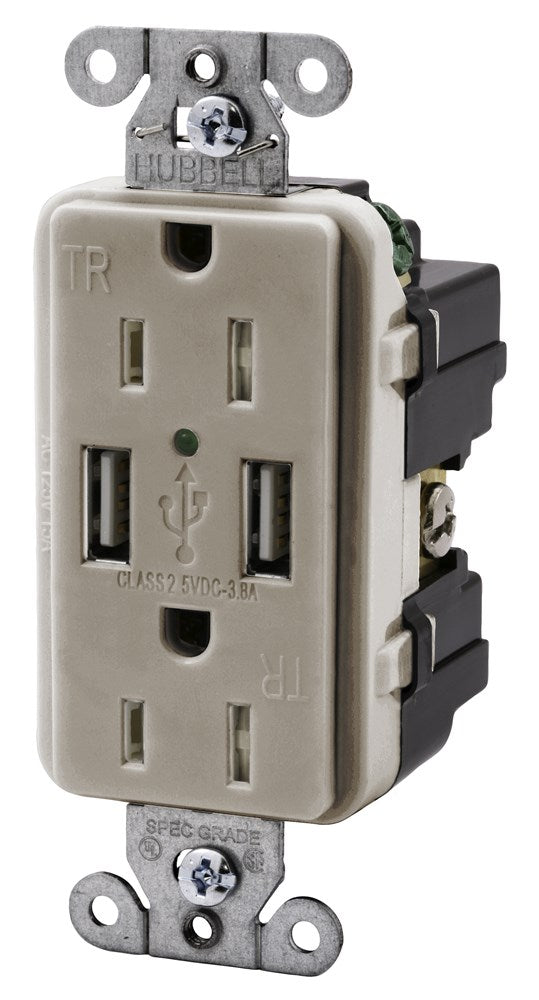

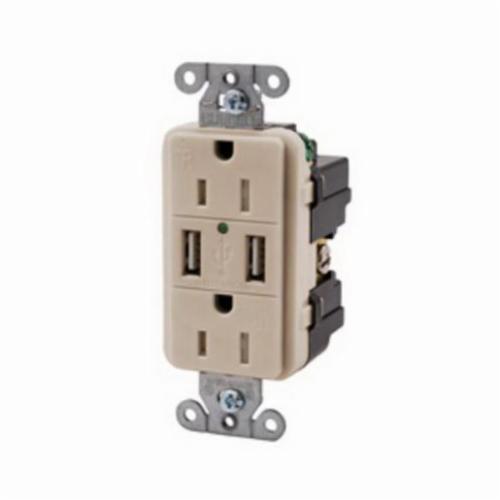

Wiring Device-Kellems USB15X2LA USB Charger Receptacle 15 A at 125 VAC Decorator Duplex Self-Grounding

Product Description

Hubbell Wiring Device-Kellems USB15X2LA provides USB and AC power in a single gang opening. This model is suitable for renovations and new constructions, enhancing capacity for USB charging. It is ideal for hotels, hospitals, and various residential and commercial locations.

• Dual USB ports with a total output of 3.8 A at 5 VDC.
• Rated for 15 A at 125 VAC, capable of handling standard loads.
• Compatible with USB 1.1/2.0/3.0 devices.

Product Highlights

This receptacle is designed for convenience, providing an easy solution for charging personal electronics.

Product Information

Standard Information

• Brand: Hubbell
• Part Number: USB15X2LA HW

Technical Specifications

• Connection: Thread
• Environmental Conditions: -40 to 75 deg C Operating Temperature
• Grade: Commercial/Specification
• Material: Composite/Thermoplastic
• Mounting: Threaded
• Size: 4.12 in H x 1.3 in W x 1.96 in D
• Type: Decorator Duplex Self-Grounding
• USB Quantity: 2
• USB Rating: 3.8 A at 5 VDC
• USB Type: 1.1/2.0/3.0
• Wire Size: 14 to 12 AWG
• Wiring Method: Back/Side Wired
• Electrical Ratings: 15 A at 125 VAC
• Phase: 1
• Number of Poles: 2
• Number of Wires: 3
• Color: Light Almond
