Wiring Device-Kellems USB15A5I USB Charger Receptacle 125 VAC 20 A 1875 W

Product Description

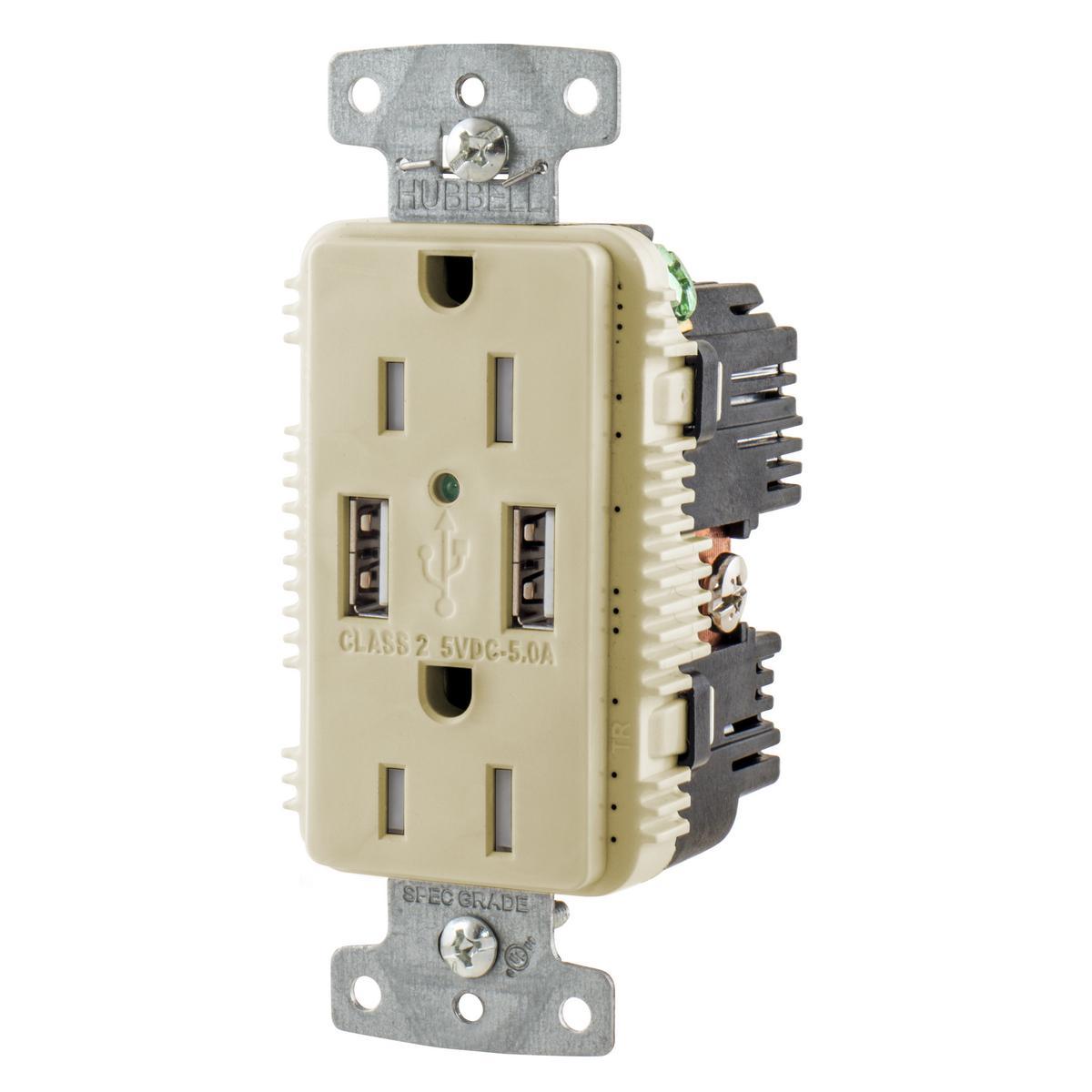

The Wiring Device-Kellems USB15A5I is a USB charger receptacle built by Hubbell. This device features a duplex grounding design that is heavy duty and tamper-resistant. It operates at 125 volts alternating current and supports up to 20 amperes and 1875 watts. The receptacle offers two USB ports, each rated at 5 amps, which can charge multiple devices simultaneously.

• Duplex grounding design for safety.
• Two USB ports with a total output of 5 A.
• Compatible with various devices, including those using Type-C and Type A connectors.

Product Highlights

This receptacle supports 14 to 10 AWG wire and features a screw terminal connection. It is suitable for commercial use and can operate in temperatures from -40 to 75 degrees Celsius. The product is designed for easy installation in various settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Part Number: USB15A5I HW

Technical Specifications

• Connection: Screw Terminal
• Environmental Conditions: -40 to 75 degrees Celsius Operating, NEMA 5-15R Enclosure
• Grade: Commercial
• Material: Composite
• Mounting: Threaded
• Size: 1.75 in W x 1.82 in D x 3.28 in H
• Type: Duplex Grounding Heavy Duty Tamper-Resistant Standard
• USB Quantity: 2
• USB Rating: 5 A, 5 VDC
• USB Type: Class A
• Wire Size: 14 to 10 AWG
• Electrical Ratings: 125 VAC, 20 A, 1875 W
• Phase: 1
• Number of Poles: 2
• Number of Wires: 3
• Color: Ivory
