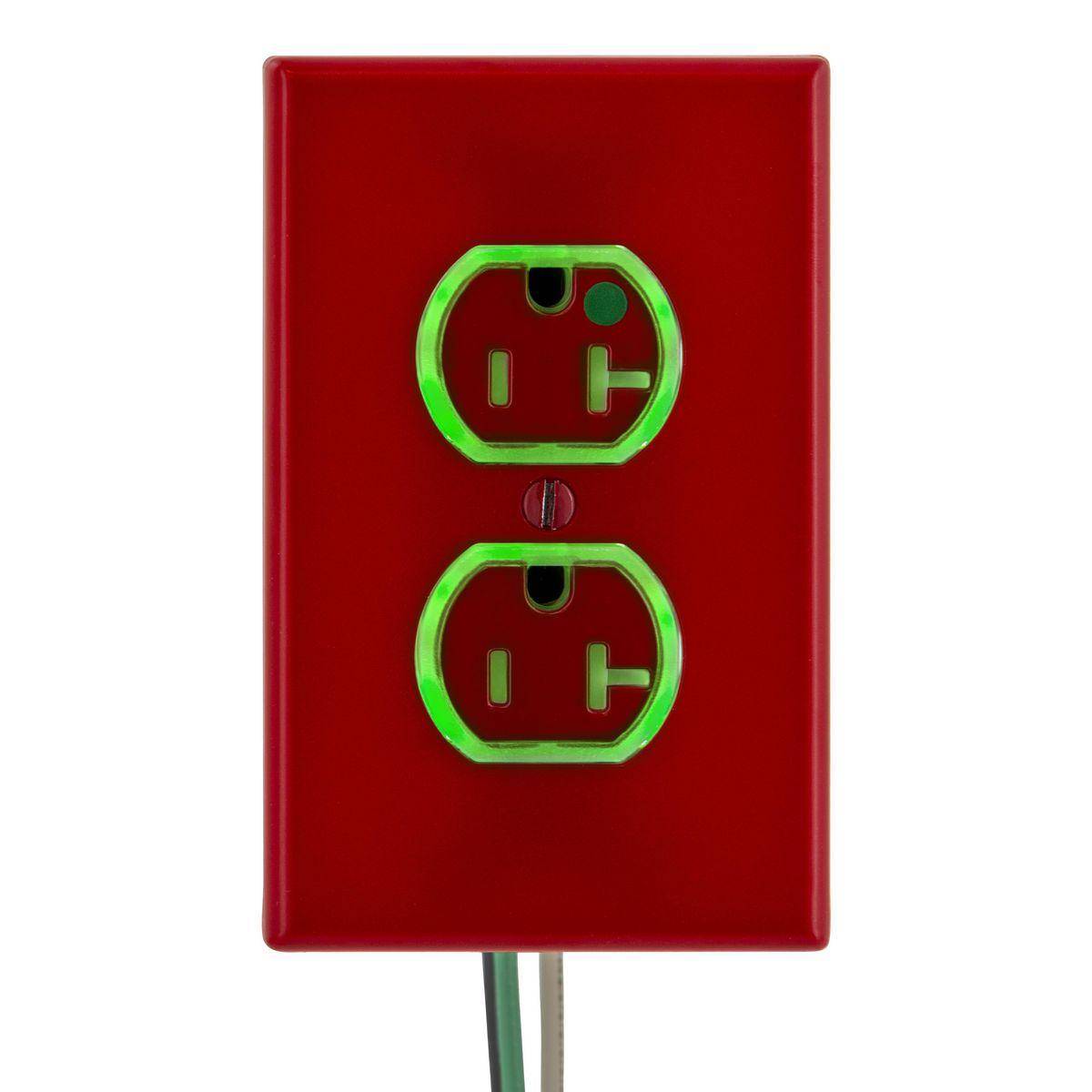

Wiring Device-Kellems SNAP8300RLTR Duplex Extra Heavy Duty Tamper-Resistant Straight Blade Receptacle With Power Indicating LED 125 VAC 20 A NEMA 5-20R

Product Description

The Wiring Device-Kellems SNAP8300RLTR is a duplex extra heavy-duty tamper-resistant straight blade receptacle designed for safety and efficiency. This device is suitable for commercial construction, healthcare facilities, and laboratory applications.

• Includes a power indicating LED for visibility.
• Features an audible snapping mechanism for solid connections.
• Reduces installation time and allows for easy replacement.

Product Highlights

The SNAPConnect® feature simplifies the installation process by using a modular connector that is installed during rough-ins. Once installed, the terminal can be snapped into place for reliable operation. This design enables maintenance personnel to easily swap devices as needed.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Type: Duplex Extra Heavy Duty Tamper-Resistant

Technical Specifications

• MPN: SNAP8300RLTR
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• NEMA Rating: NEMA 5-20R
• Dimensions: 3.28 in H x 1.64 in W x 1.1 in D
• Temperature Rating: -40 to 75 deg C
• Material: Nylon
• Enclosure: IP20
• Country of Origin: CN
