Wiring Device-Kellems SNAP8300GYA Wiring Device-Kellems SNAPConnect 1-Phase Duplex Grounding Standard Traditional Screw Mount Straight Blade Receptacle

Product Description

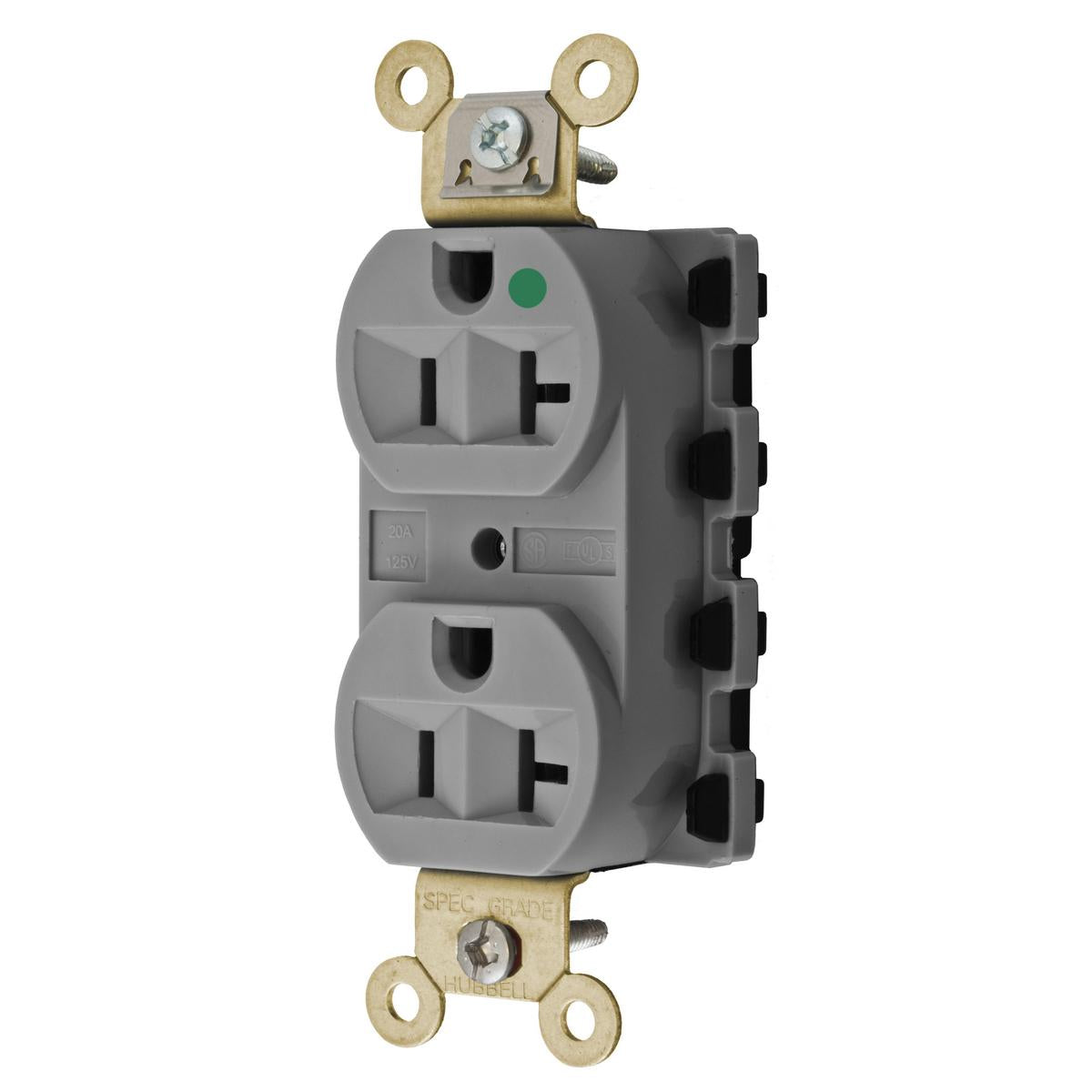

The Wiring Device-Kellems SNAP8300GYA is a straight blade receptacle. It is a one-phase duplex grounding standard traditional screw mount device rated for one hundred twenty-five volts and twenty amps. Designed for efficiency, SNAPConnect devices simplify installation during construction and renovations, making reliable connections easier. The modular connector replaces traditional pigtails and allows maintenance personnel to quickly change devices once the terminal is snapped into place.

• Rated for one hundred twenty-five volts and twenty amps.
• Constructed to withstand harsh conditions with a temperature rating of minus forty to seventy-five degrees Celsius.
• Connectorized terminal for easy installation and device replacement.

Product Highlights

The SNAP8300GYA receptacle features a hospital-grade design that meets stringent electrical safety standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: three point two eight x one point six four x one point one inches
• Enclosure: IP20
• Grade: Hospital
• Horsepower: one hp
• Material: Nylon
• NEMA Rating: 5-20R
• Temperature Rating: minus forty to seventy-five degrees Celsius
• Terminal Type: Connectorized
• Voltage Rating: one hundred twenty-five volts AC
• Amperage Rating: twenty amps
• Number of Poles: two
• Number of Wires: three
• Color: Gray
