Wiring Device-Kellems SNAP5362IA 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount

Product Description

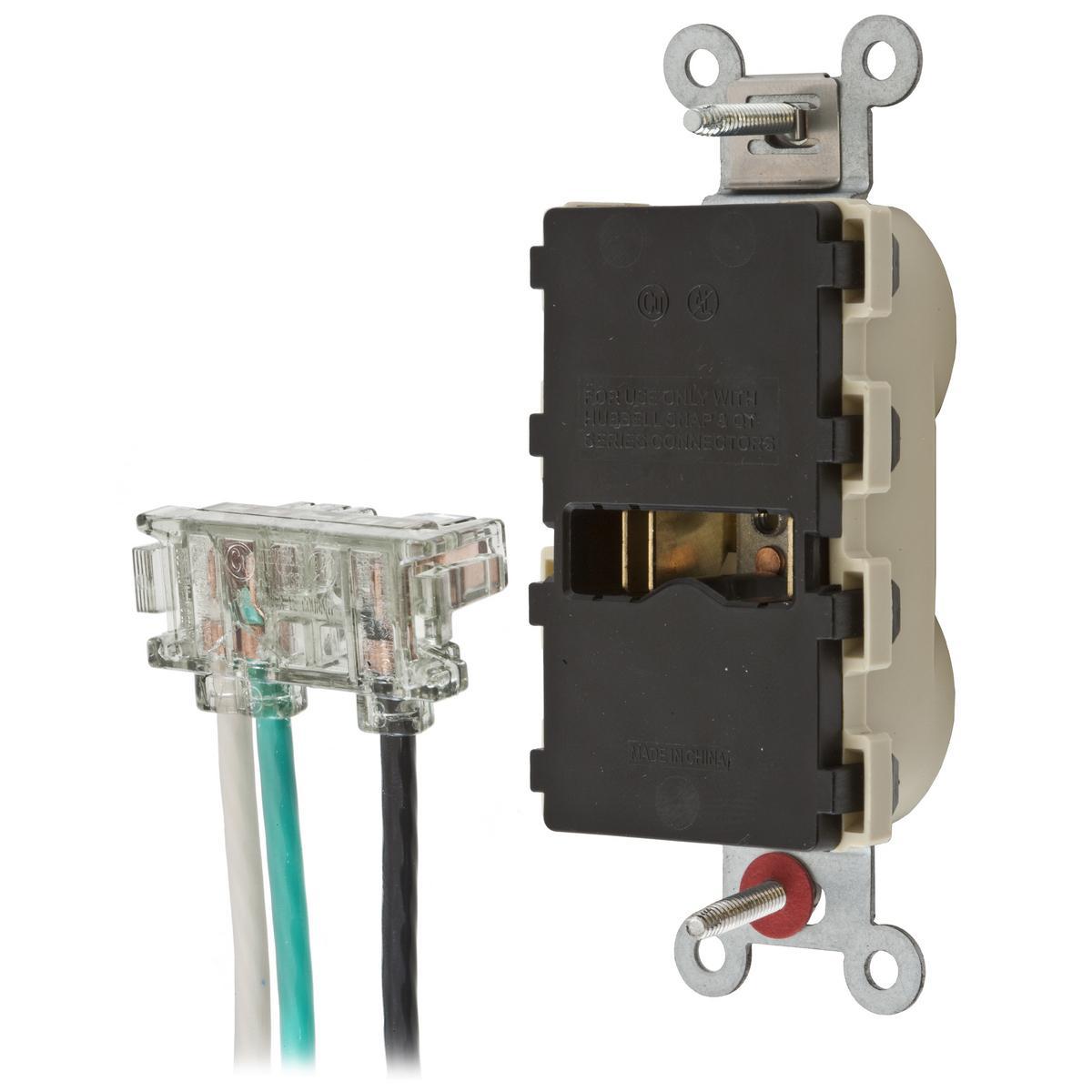

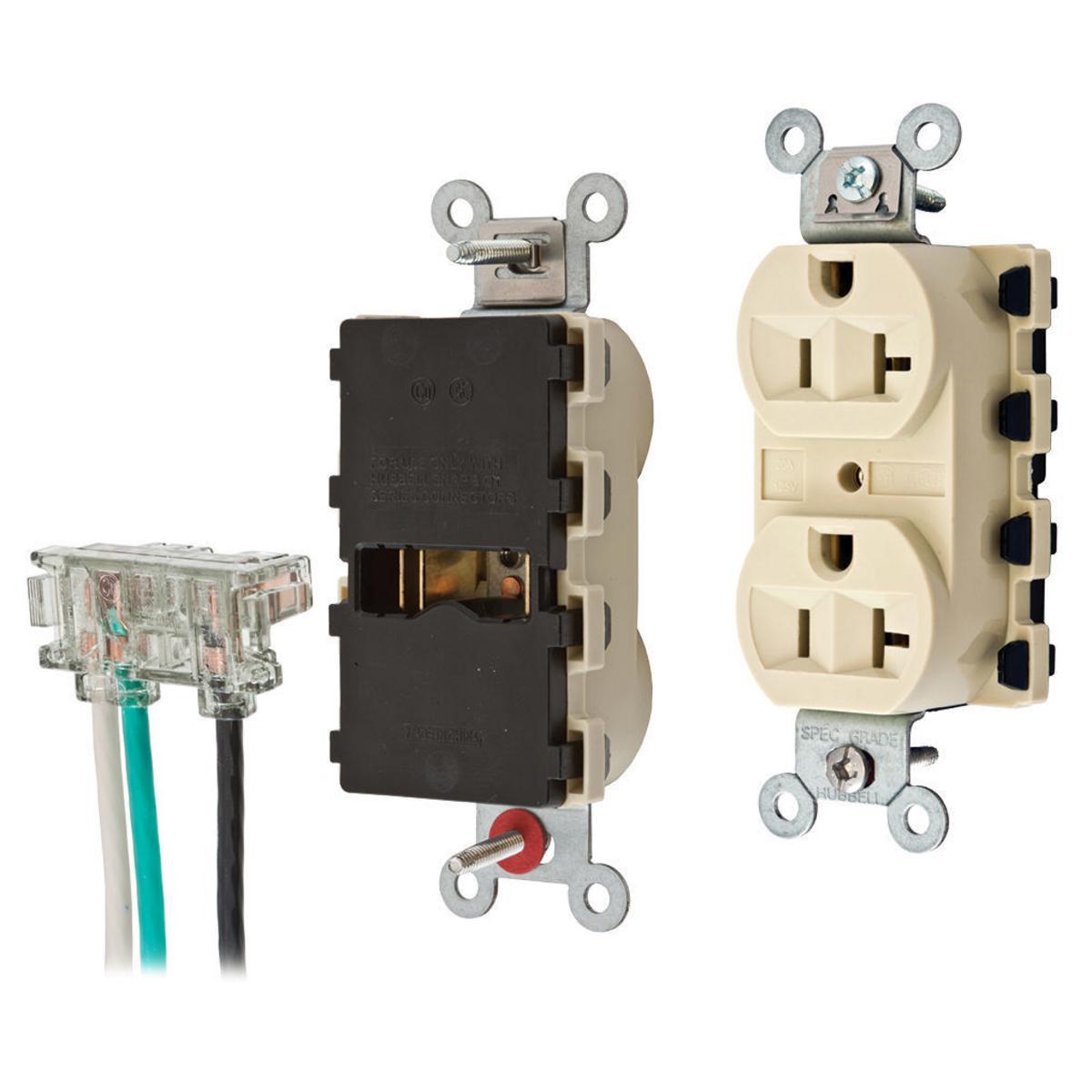

The Wiring Device-Kellems SNAP5362IA is a reliable straight blade receptacle designed for various applications. It features a SNAPConnect modular design that allows for quick installation and device changes.

• 1-Phase duplex, extra heavy-duty grounding
• Rated for 125 VAC and 20 A, suitable for 2 poles and 3 wires
• Constructed from nylon with a temperature range of -40 to 75 degrees Celsius

Product Highlights

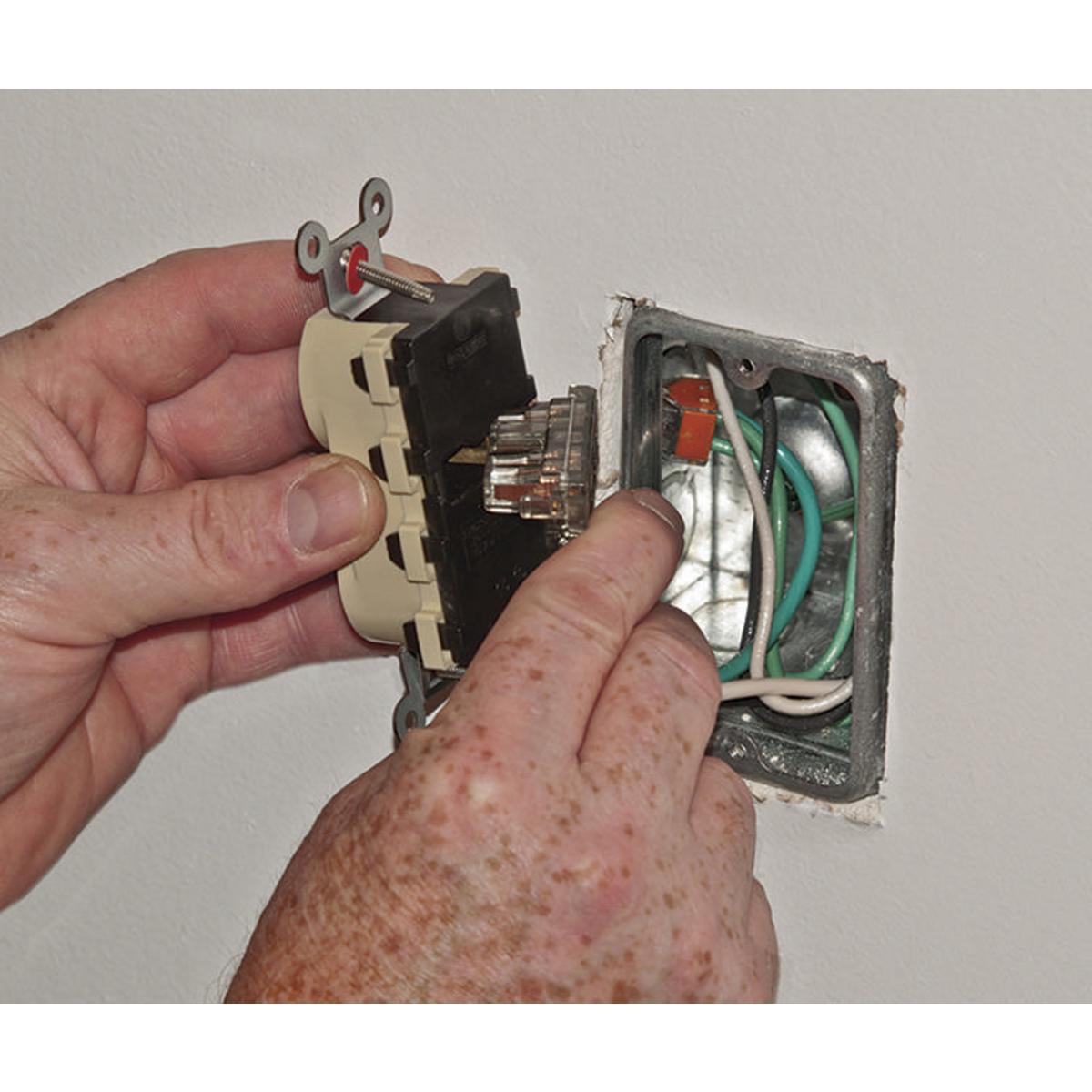

The SNAPConnect design enhances installation efficiency for renovations and new builds by using modular connectors instead of traditional wiring methods.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 1.64 x 1.1 inches
• Grade: Specification
• Horsepower: 1 hp
• Material: Nylon
• NEMA Rating: 5-20R
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Ivory
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Connectorized
• Type: 1-Phase Duplex Extra Heavy Duty Grounding Standard Traditional Screw Mount
