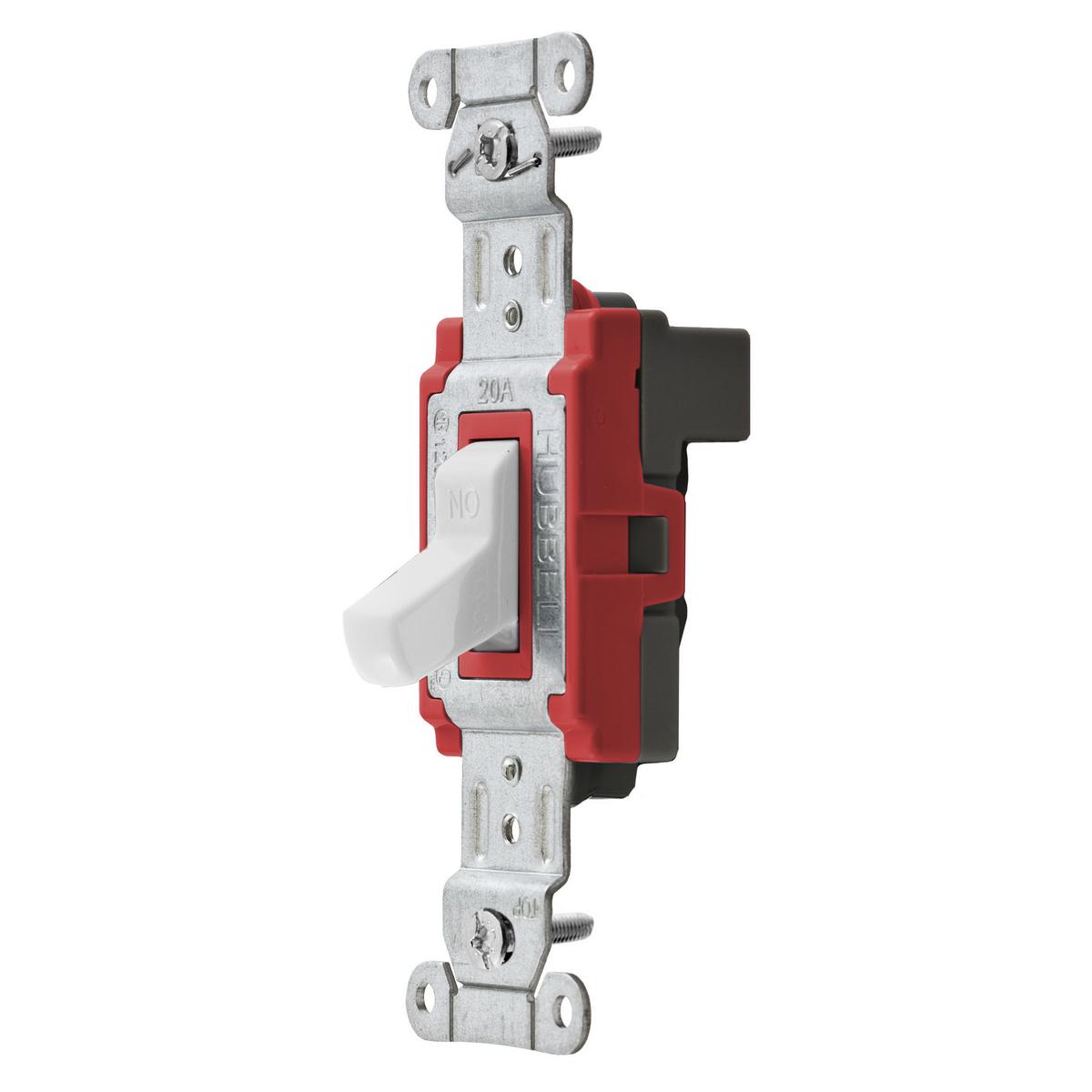

Wiring Device-Kellems SNAP1223WNA Toggle Switch 3-Way General Purpose 120 to 277 VAC

Product Description

The Wiring Device-Kellems SNAP1223WNA is a reliable toggle switch designed for general-purpose use. It operates between 120 to 277 VAC and can handle an amperage of twenty. This switch features a power rating of five thousand five hundred forty watts.

• 3-Way toggle switch for versatile applications.
• Features screw terminal for easy connections.
• Operating cycles up to fifty thousand for durability.

Product Highlights

The SNAP1223WNA is built to last, ensuring dependable service in residential and commercial settings. Its thermoplastic construction allows it to perform reliably under a range of environmental conditions from negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 3-Way General Purpose
• Actuator: Toggle
• Number of Poles: 1
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Environmental Conditions: -40 to 75 deg C
• Material: Thermoplastic
• Mounting: Threaded
• Operating Cycles: 50000 cycles
• Terminal Type: Screw
• Contact Configuration: 2-Position
• Dimensions: 4.18 x 1.3 x 1.74 in
