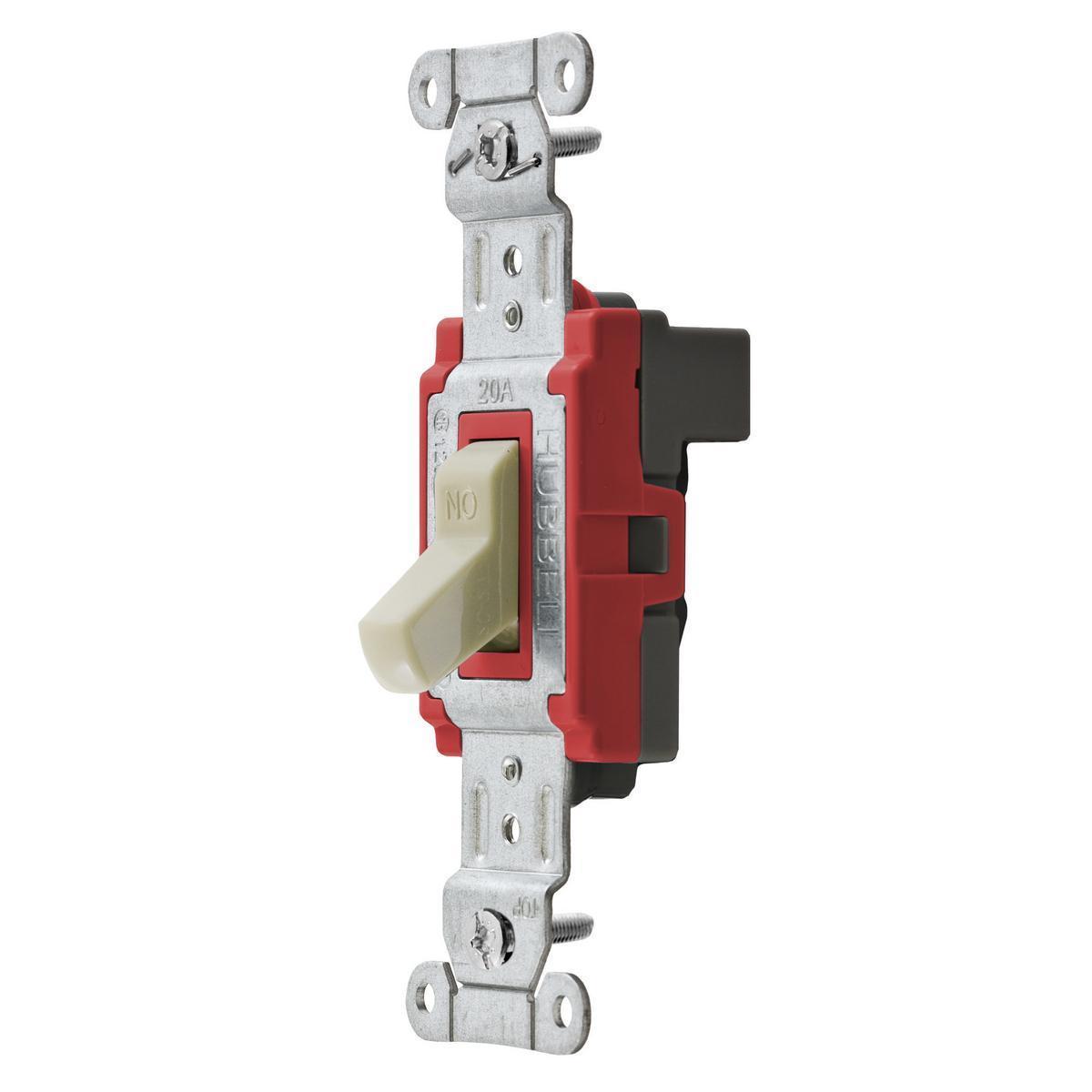

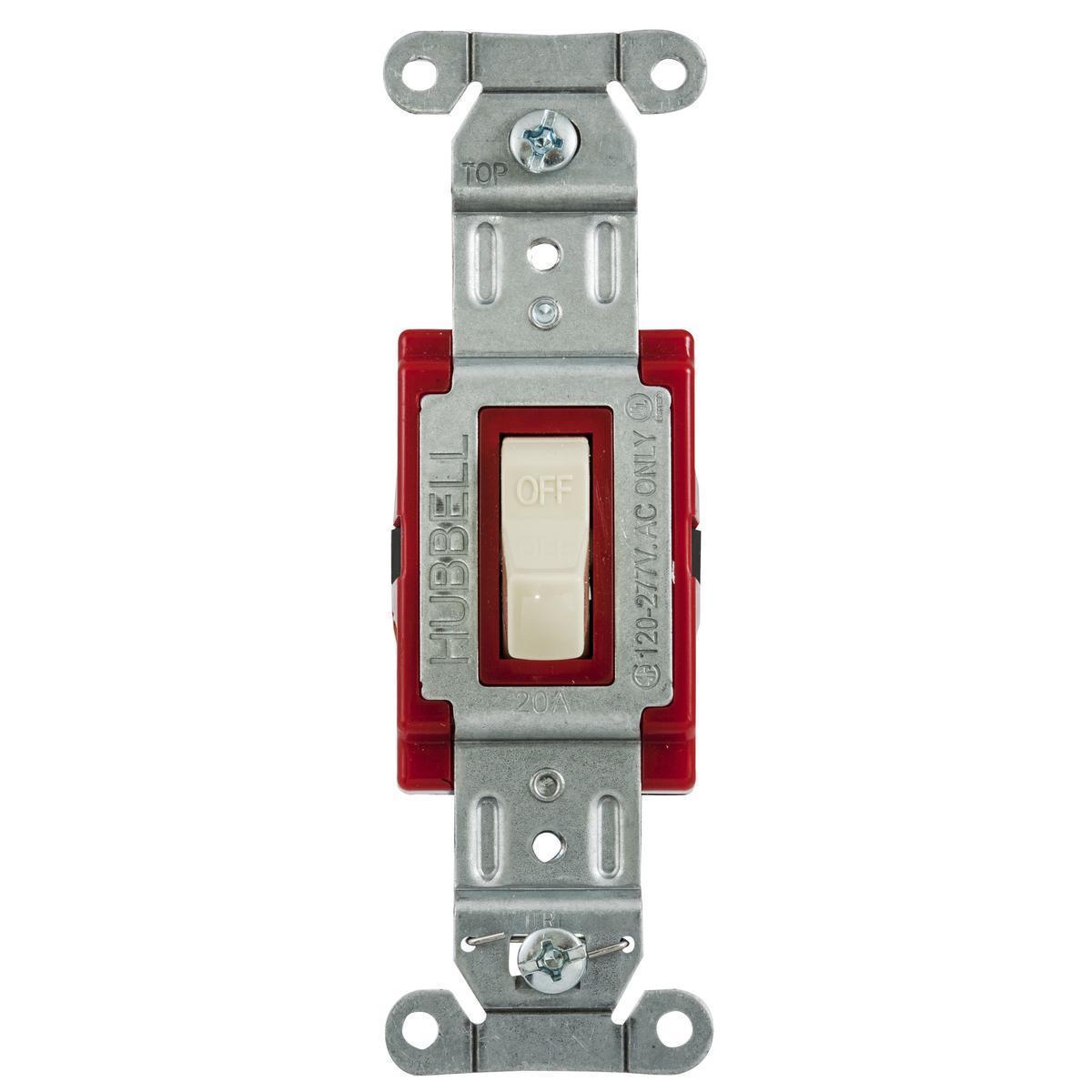

Wiring Device-Kellems SNAP1223INA 2-Position 3-Way Commercial/Industrial Grade General Purpose Heavy Duty Standard

Product Description

The Wiring Device-Kellems SNAP1223INA is a toggle switch designed for commercial and industrial applications. This switch operates at 120 to 277 VAC and supports up to 20 A and 5540 W power rating.

• Two-position, three-way toggle switch design
• Quick-connect terminal for easy installation
• Durable thermoplastic construction

Product Highlights

This product features a modular design for installation efficiency in both new construction and renovations. The SNAPConnect system allows for streamlined connections during installation, ensuring safety and reliability in operation.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Ivory
• Material: Thermoplastic
• Mounting Type: Threaded
• Dimensions: 4.18 x 1.3 x 1.74 inches
• Environmental Conditions: -40 to 75 deg C
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Quick-Connect
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
