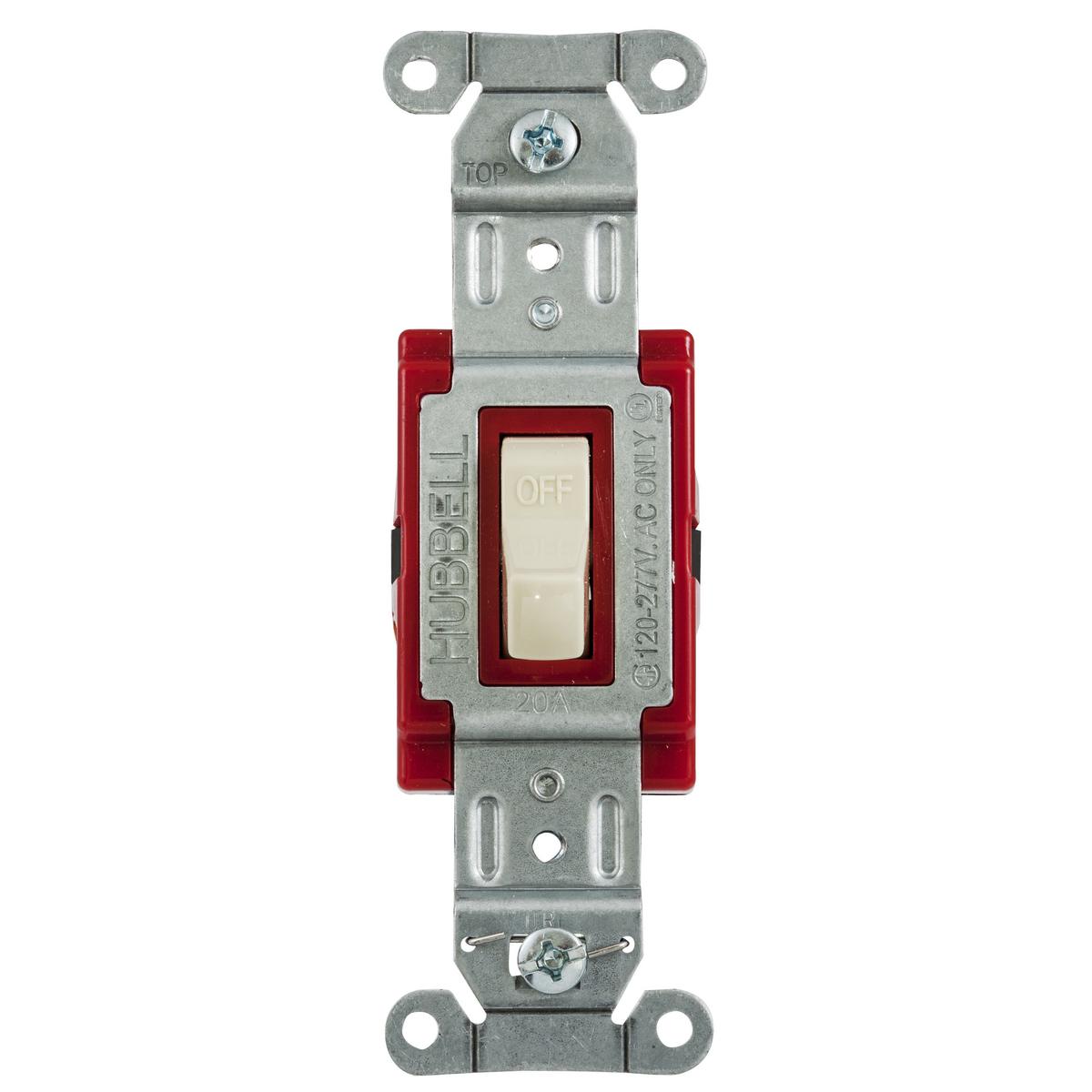

Wiring Device-Kellems SNAP1221INA Toggle Switch 120 to 277 VAC 2-Position Commercial/Industrial Grade Heavy Duty Standard

Product Description

The Wiring Device-Kellems SNAP1221INA is a toggle switch designed for commercial and industrial applications. This device operates efficiently between one hundred twenty to two hundred seventy-seven volts and supports a maximum current of twenty amps. Its heavy-duty design ensures reliability and durability in a variety of settings.

• Supports voltage ratings from one hundred twenty to two hundred seventy-seven VAC.
• Features a quick-connect terminal for easy installation.
• Rated for up to fifty thousand operating cycles.

Product Highlights

This toggle switch is ideal for both new constructions and renovations. Its modular design allows for quick and safe connections during installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 2-Position Commercial/Industrial Grade General Purpose Heavy Duty Standard
• Color: Ivory
• Actuator: Toggle
• Material: Thermoplastic
• Dimensions: 4.18 x 1.3 x 1.74 inches
• Environmental Conditions: -40 to 75 deg C
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Contact Configuration: 2-Position
• Terminal Type: Quick-Connect
