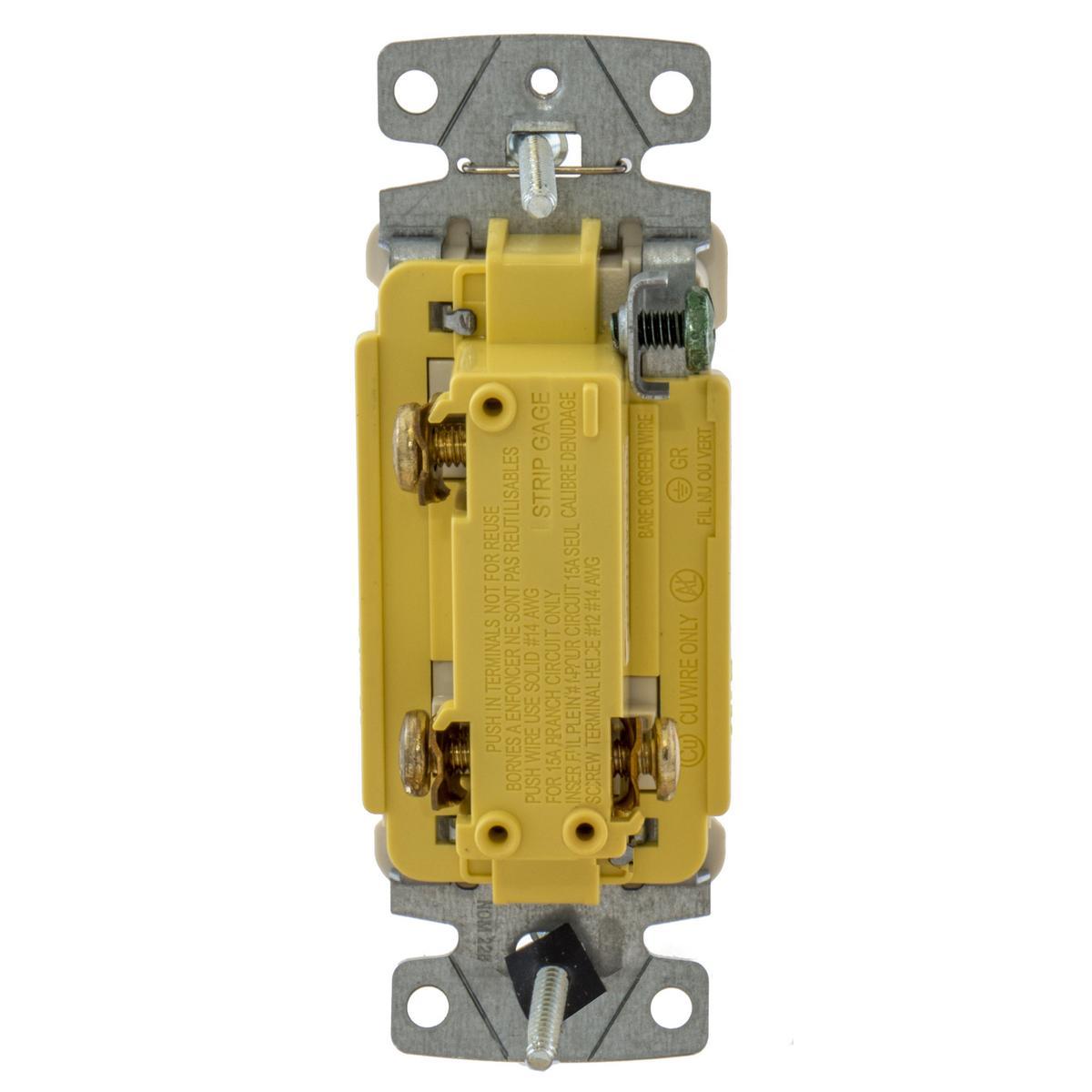

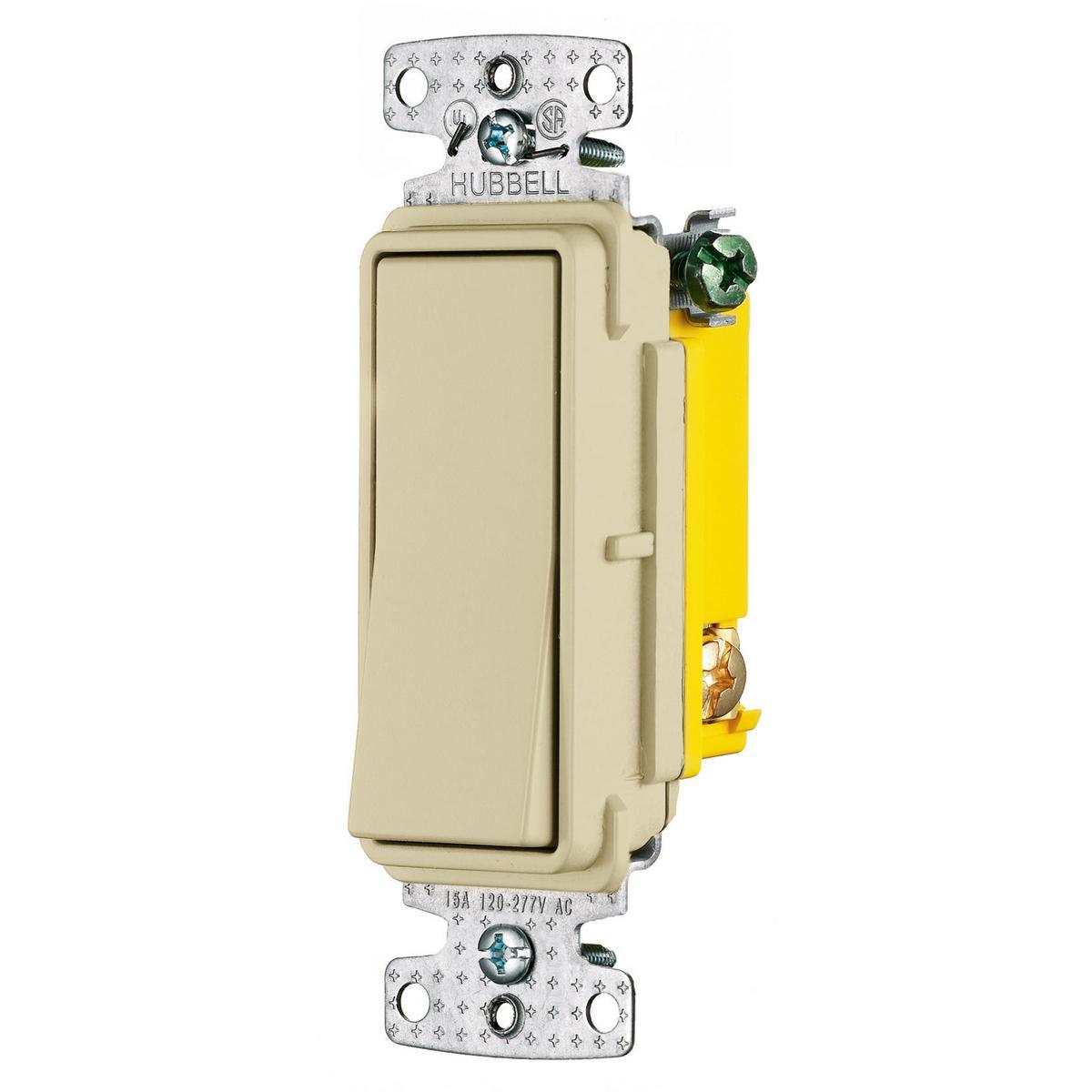

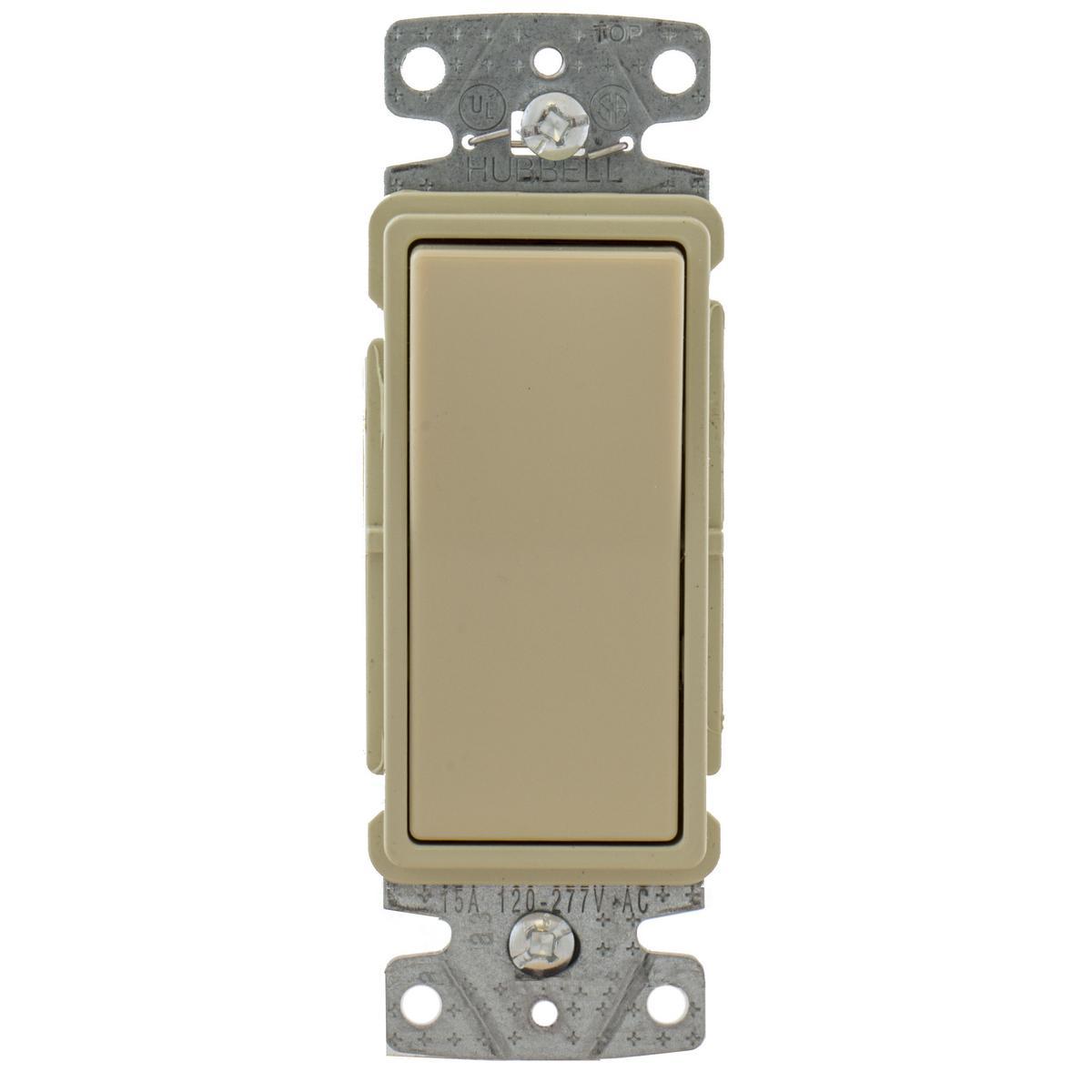

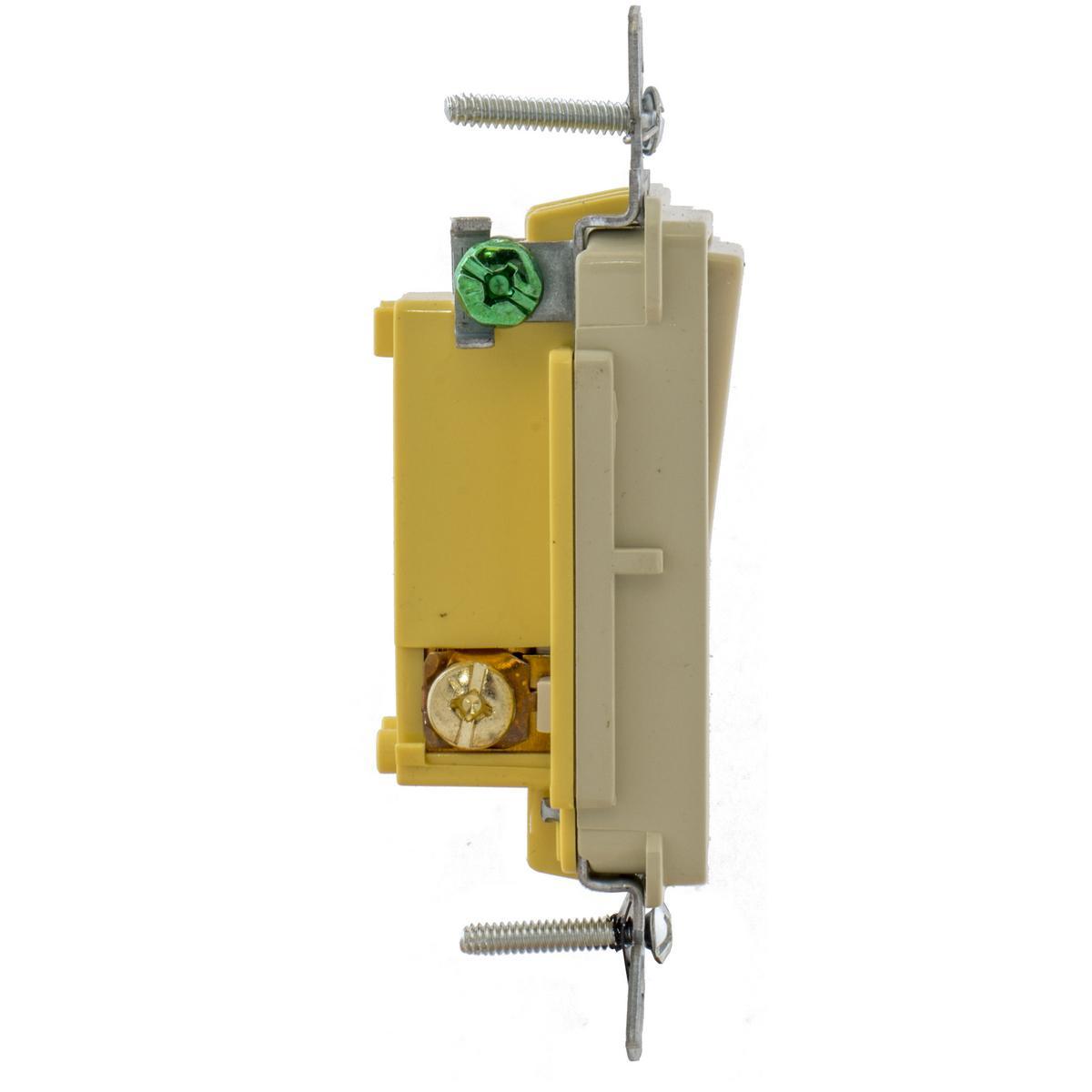

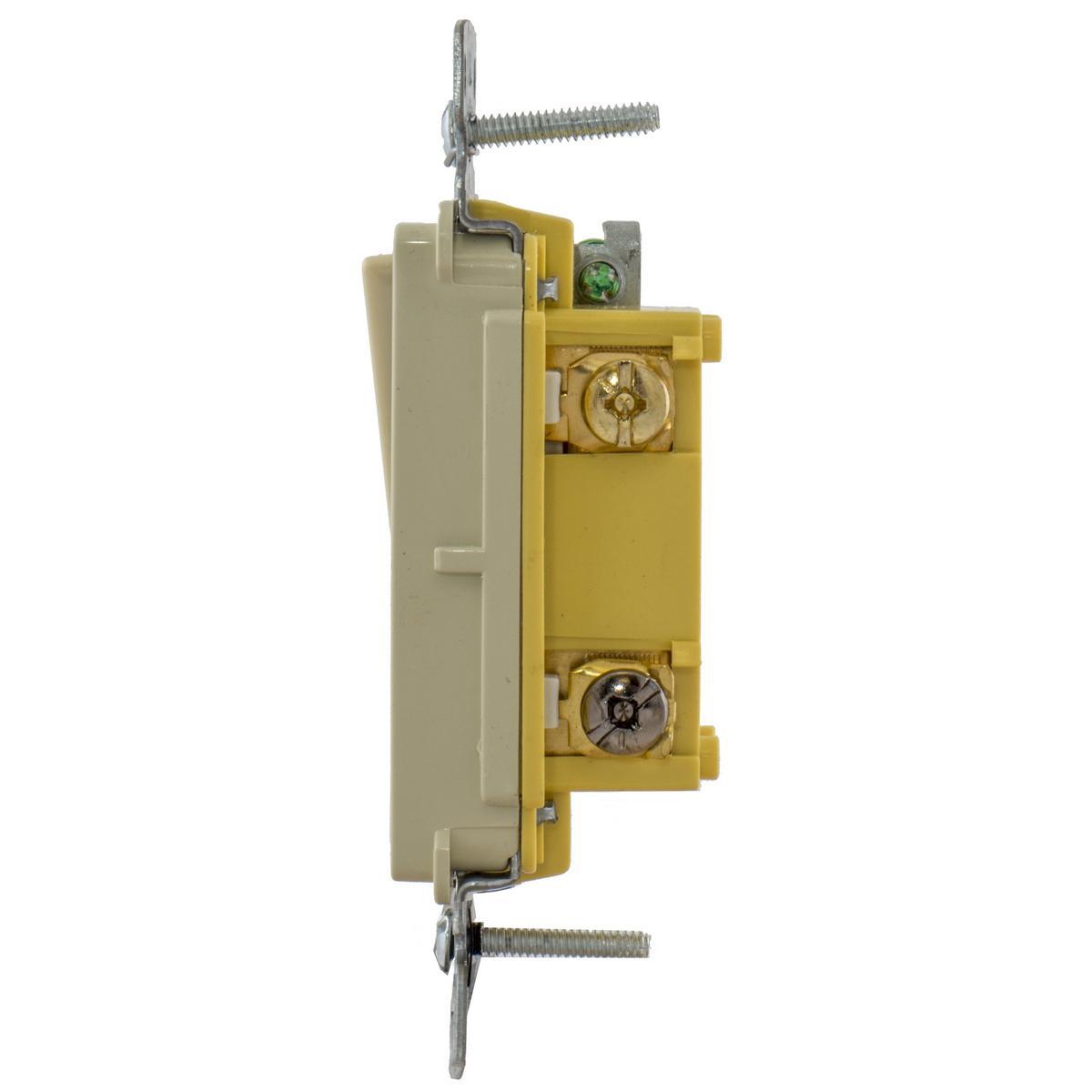

Wiring Device-Kellems RSD315I 3-Way General Purpose Self-Grounding Standard

Product Description

The Wiring Device-Kellems RSD315I is a 3-Way general purpose self-grounding decorator switch, designed to operate at 120/277 volts and handle up to 15 amps with a power rating of 4155 watts. Its simple rocker design makes it easy to use, providing a reliable solution for lighting control in various settings.

• 3-Way general purpose switch
• Positive snap action for reliable operation
• Durable construction with a composite material

Product Highlights

This switch features threaded mounting and a push-in/screw terminal for easier installation. Designed for a long life, it can handle up to thirty thousand operating cycles, making it suitable for frequent use.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 3-Way General Purpose Self-Grounding Standard
• Voltage Rating: 120/277 V
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2 Position
• Number of Poles: 3
• Operating Cycles: 30000 cycles
• Dimensions: 4.19 in L x 1.47 in W x 1.35 in H
• Color: Ivory
• Enclosure: NEMA WD-1
• Environmental Conditions: -20 to 60 deg C
• Material: Composite
• Mounting: Threaded
• Terminal Type: Push-In/Screw
• Action: Positive Snap
• Actuator: Rocker
