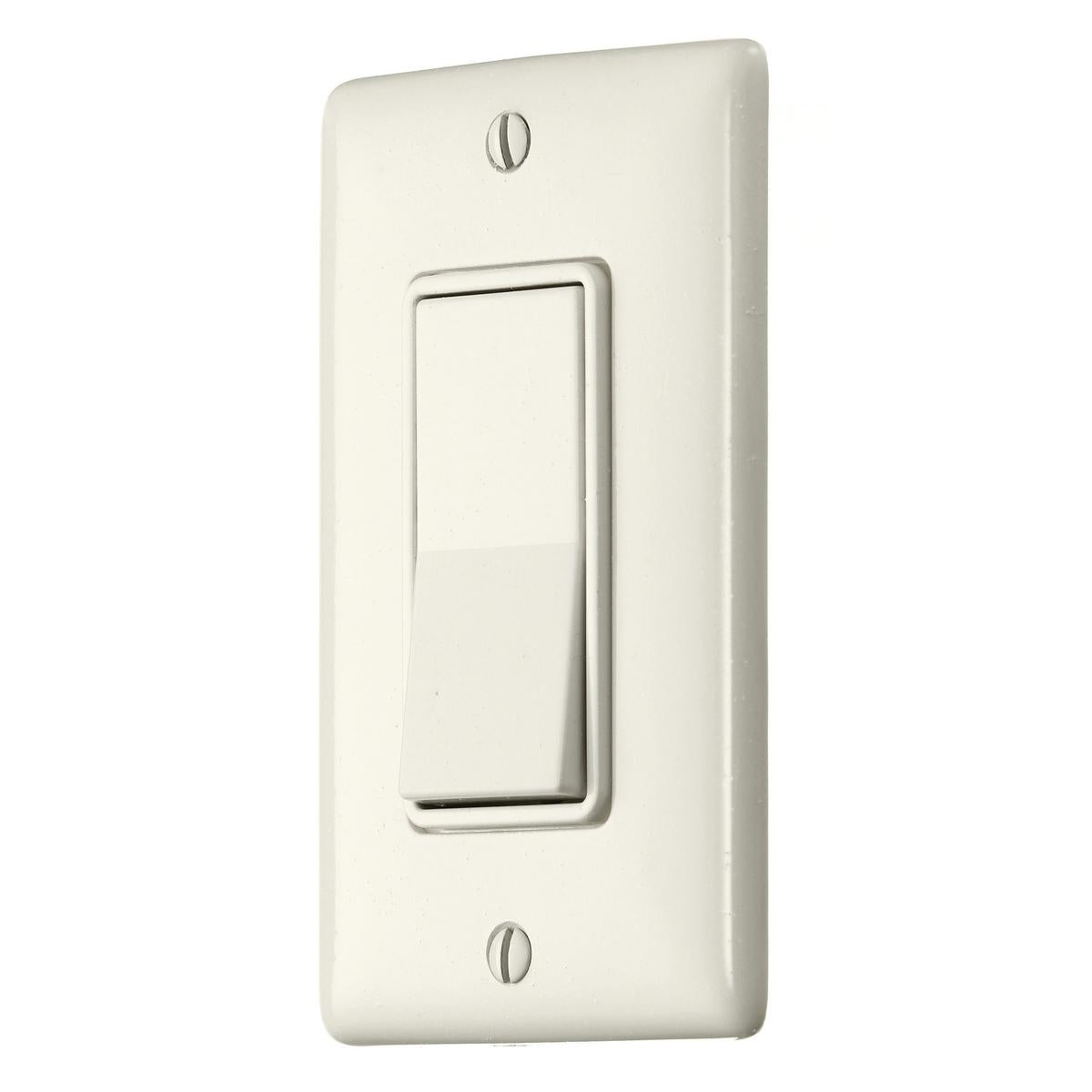

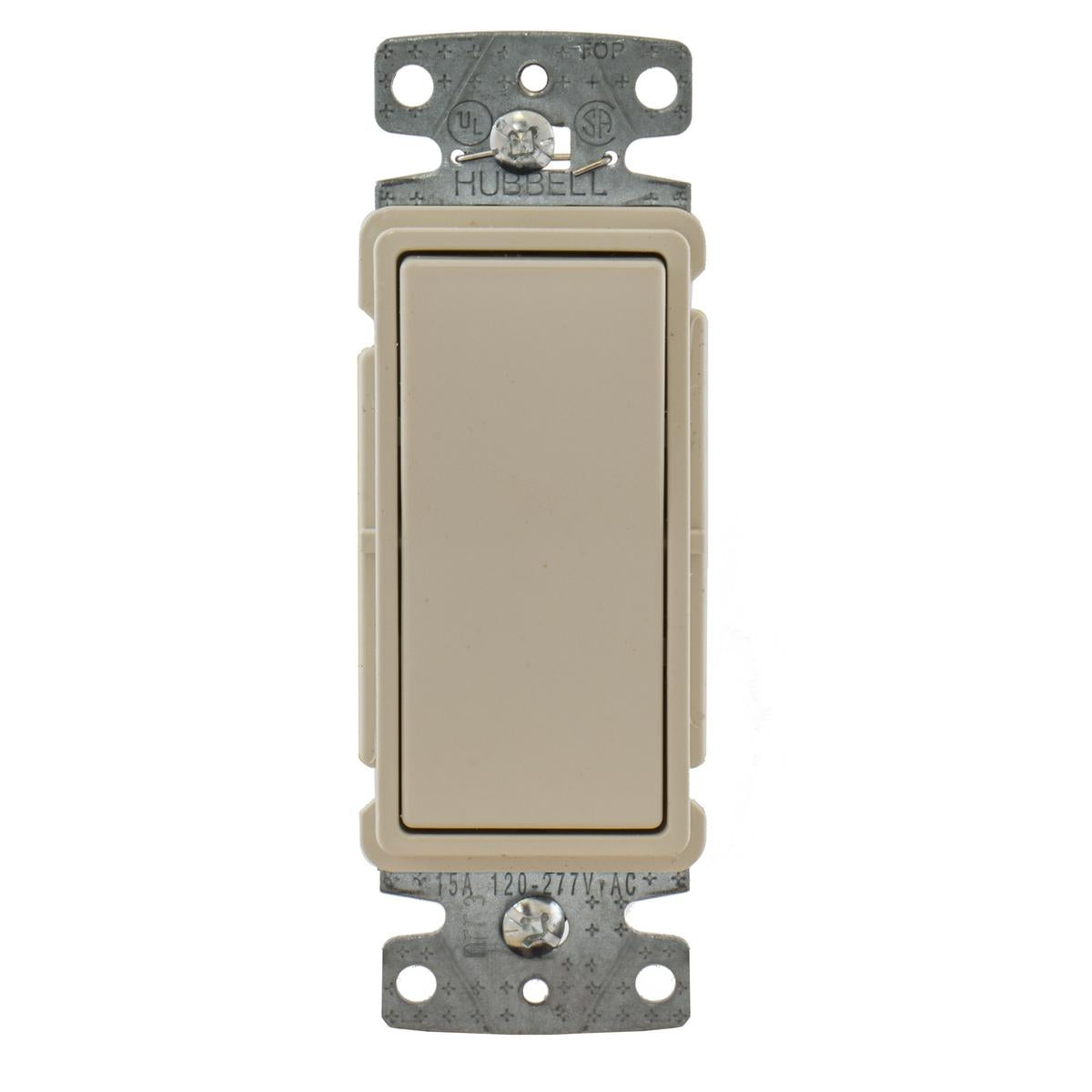

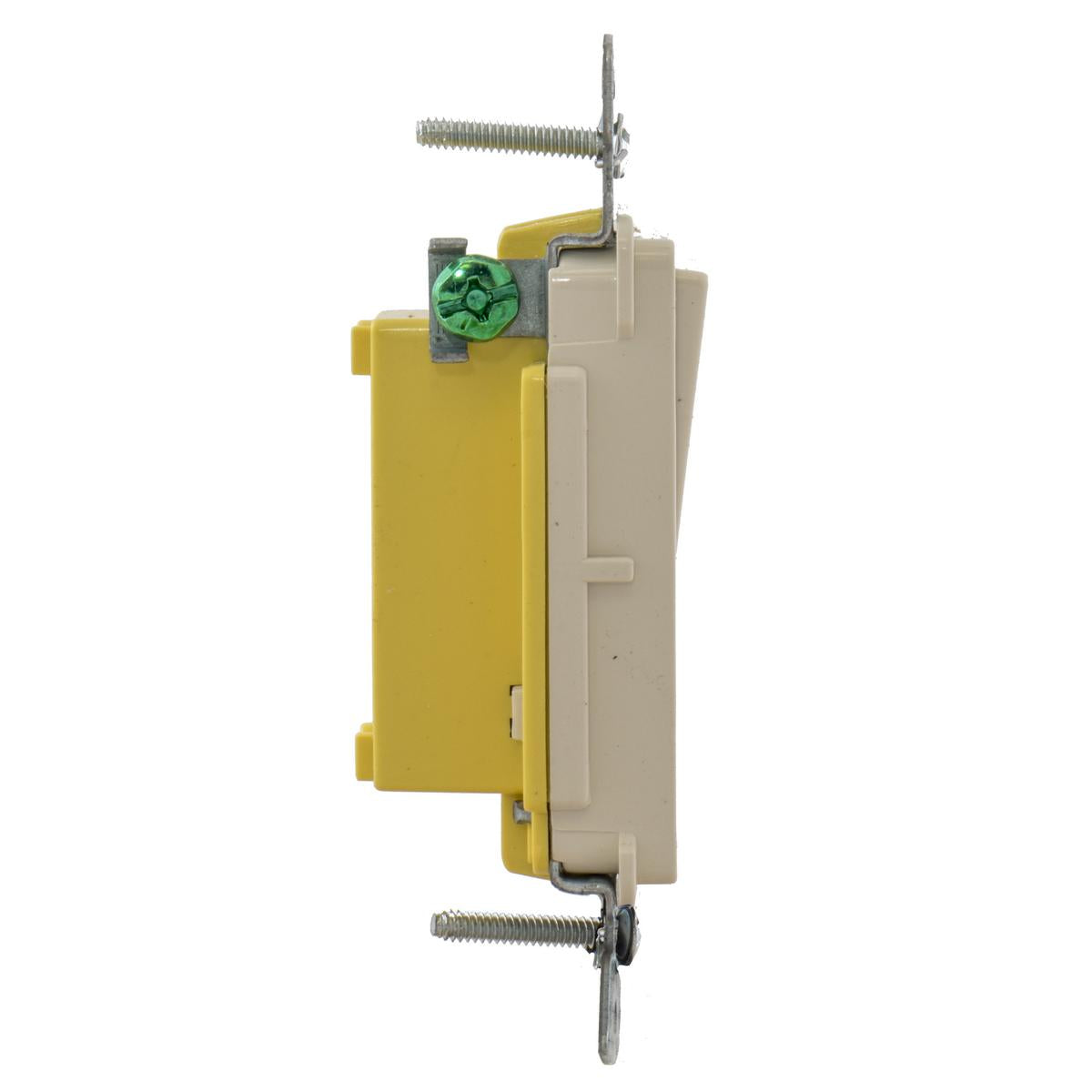

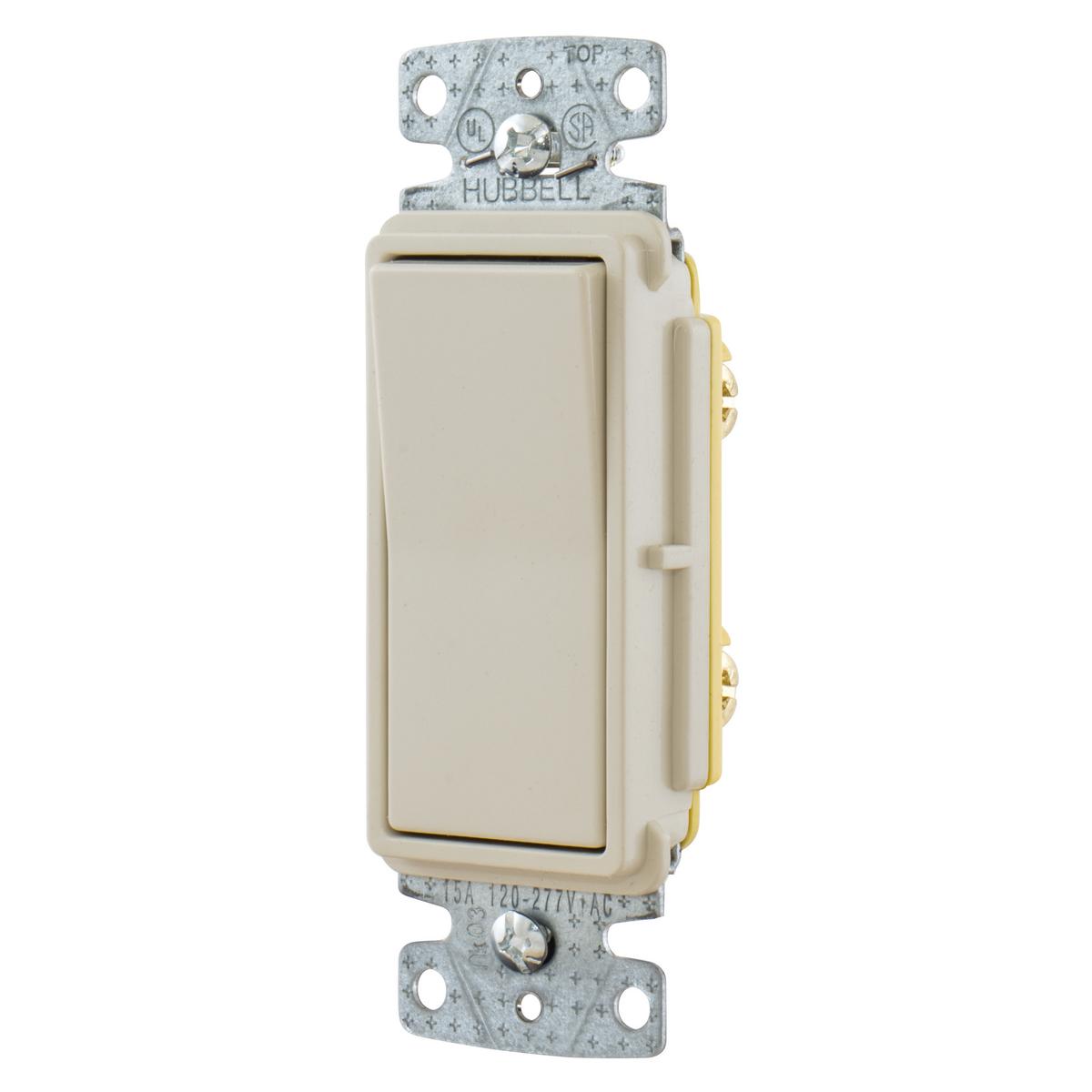

Wiring Device-Kellems RSD115LA Rocker Switch 120/277 V 15 A

Product Description

The Wiring Device-Kellems RSD115LA is a rocker switch designed for residential applications. It operates at 120/277 volts and has a power rating of 4155 watts. This switch features a self-grounding design with a two-position contact configuration. The positive snap action and rocker actuator provide reliable performance.

• Self-grounding feature included
• Usable in various environments from negative twenty to sixty degrees Celsius
• Threaded mounting with multiple wiring options

Product Highlights

Ideal for residential settings, this switch enhances any room with its functional design.

Product Information

Standard Information

• Type: Residential Grade Self-Grounding Standard
• Color: Light Almond

Technical Specifications

• Voltage Rating: 120/277 V
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Operating Cycles: 30000 cycles
• Dimensions: 1.47 in W x 1.35 in D x 4.91 in H
• Environmental Conditions: -20 to 60 deg C

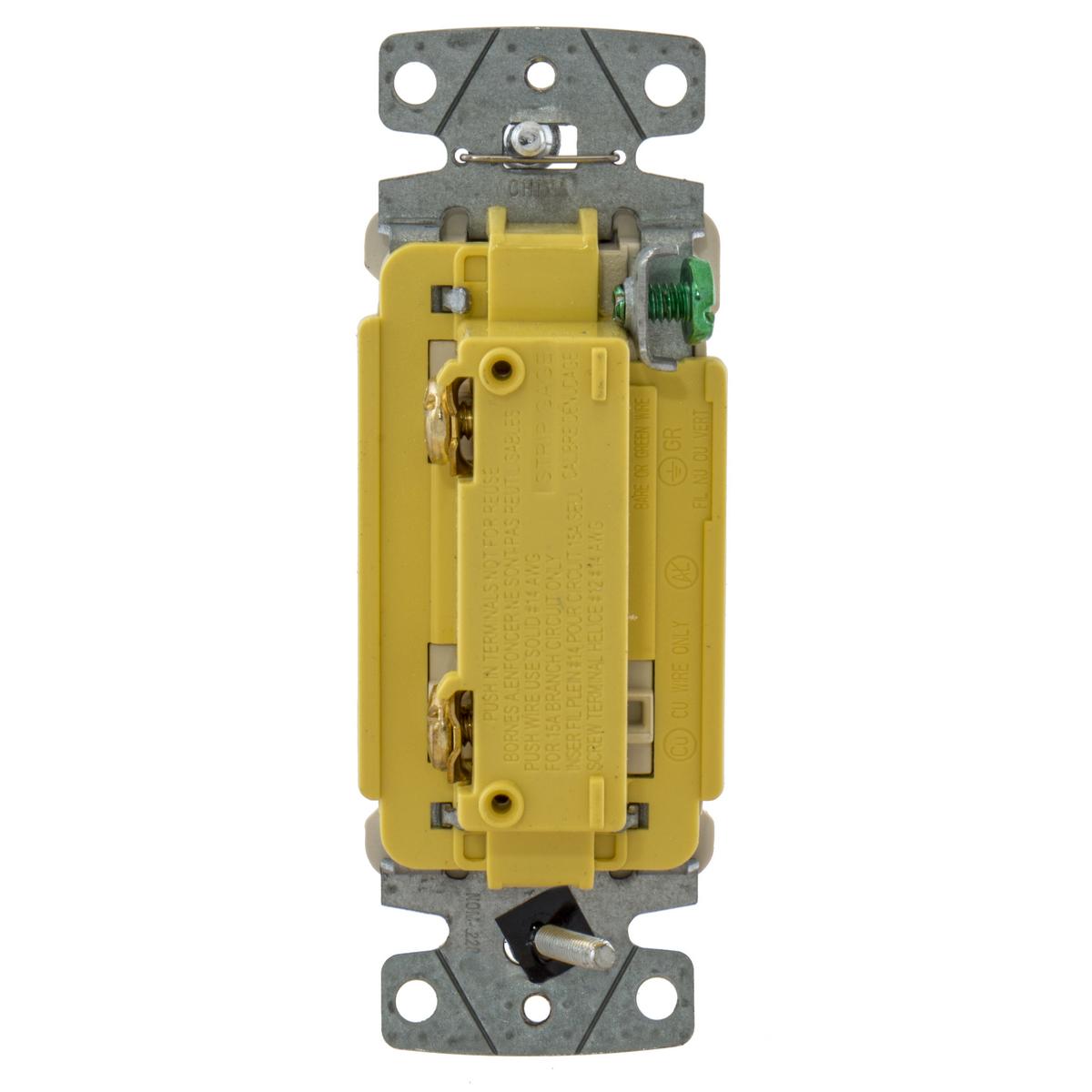

• Terminal Type: Back/Side Wire/Push-In
• Action: Positive Snap
• Mounting: Threaded
• Number of Poles: 1
• Actuator: Rocker
• Contact Configuration: 2 Position
• Material: Composite
