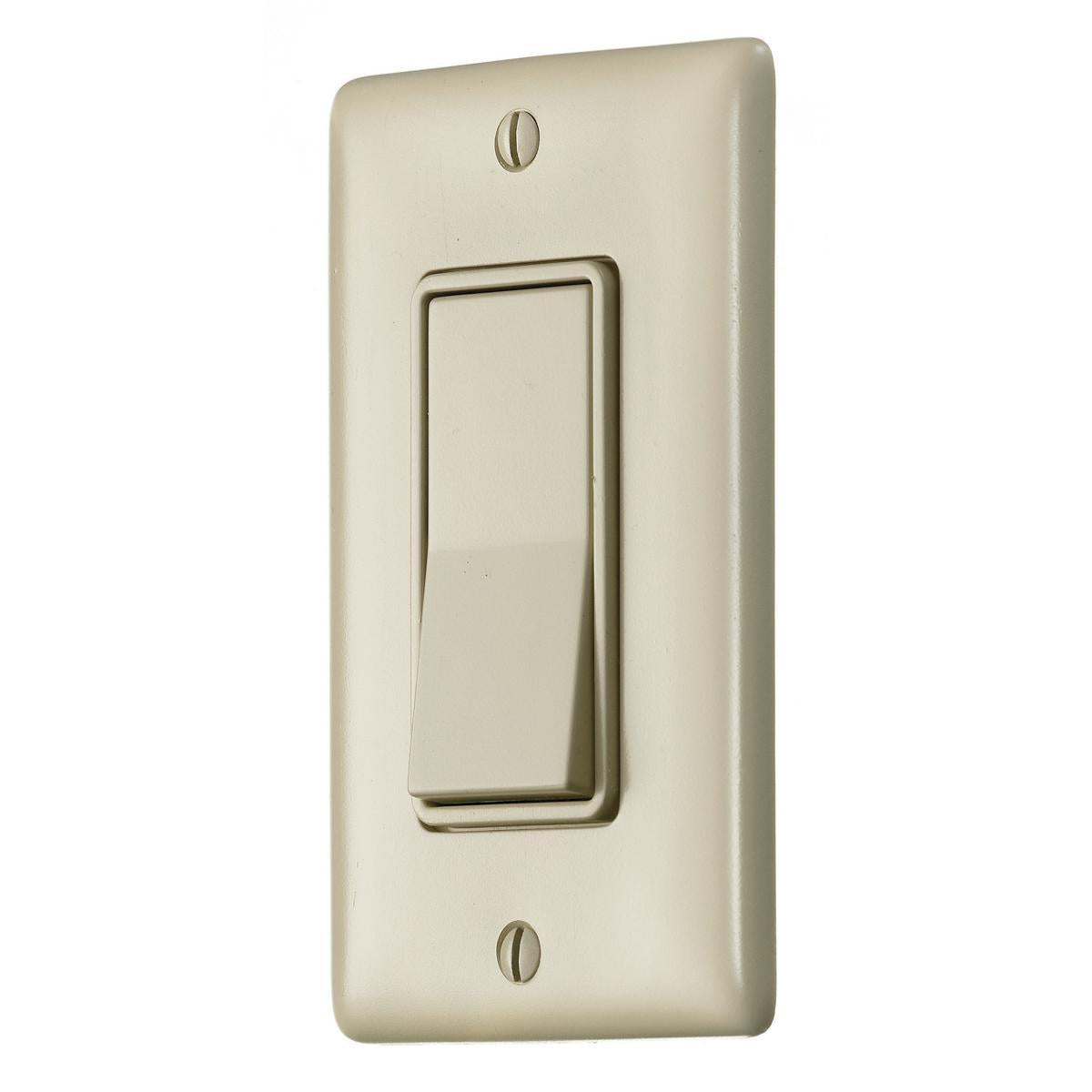

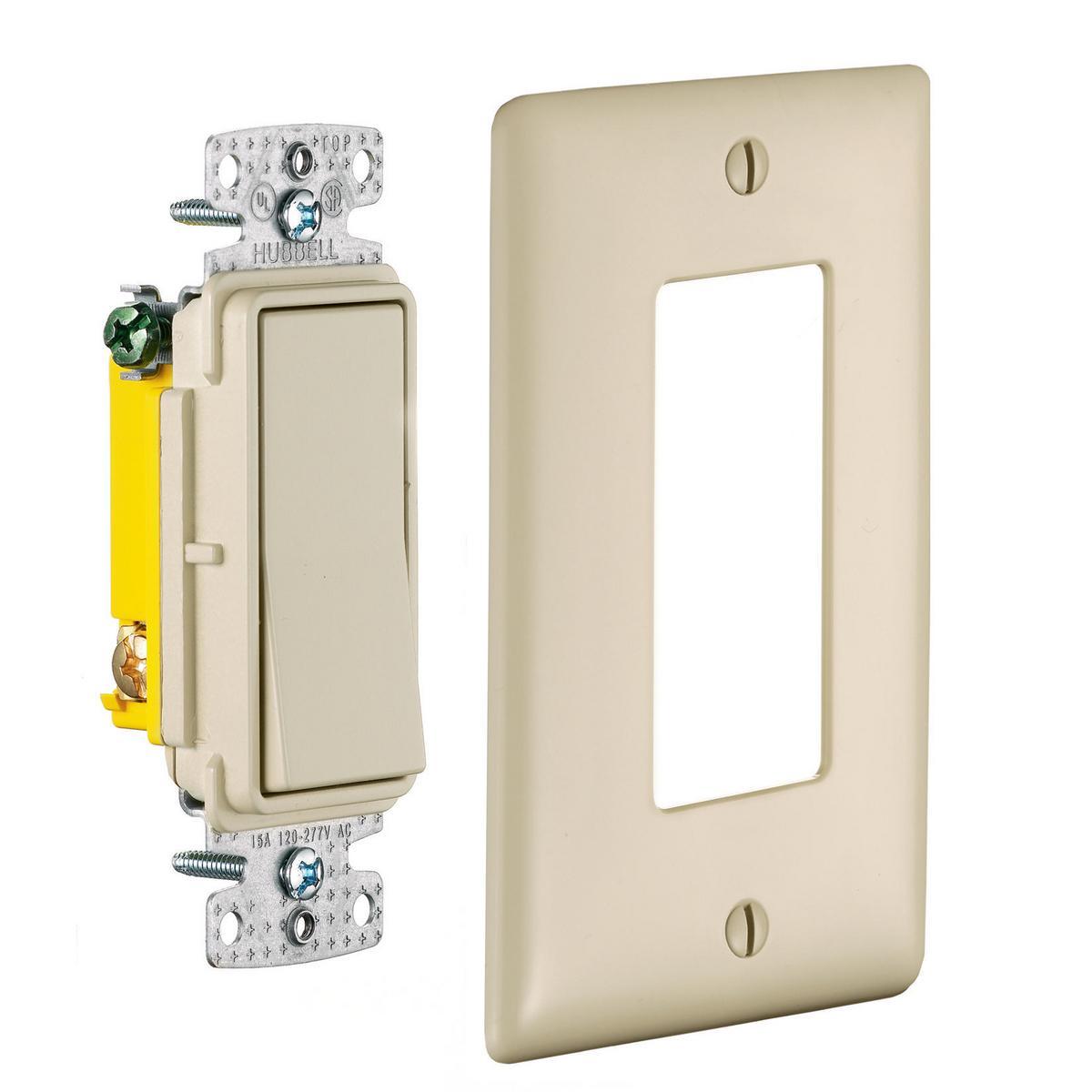

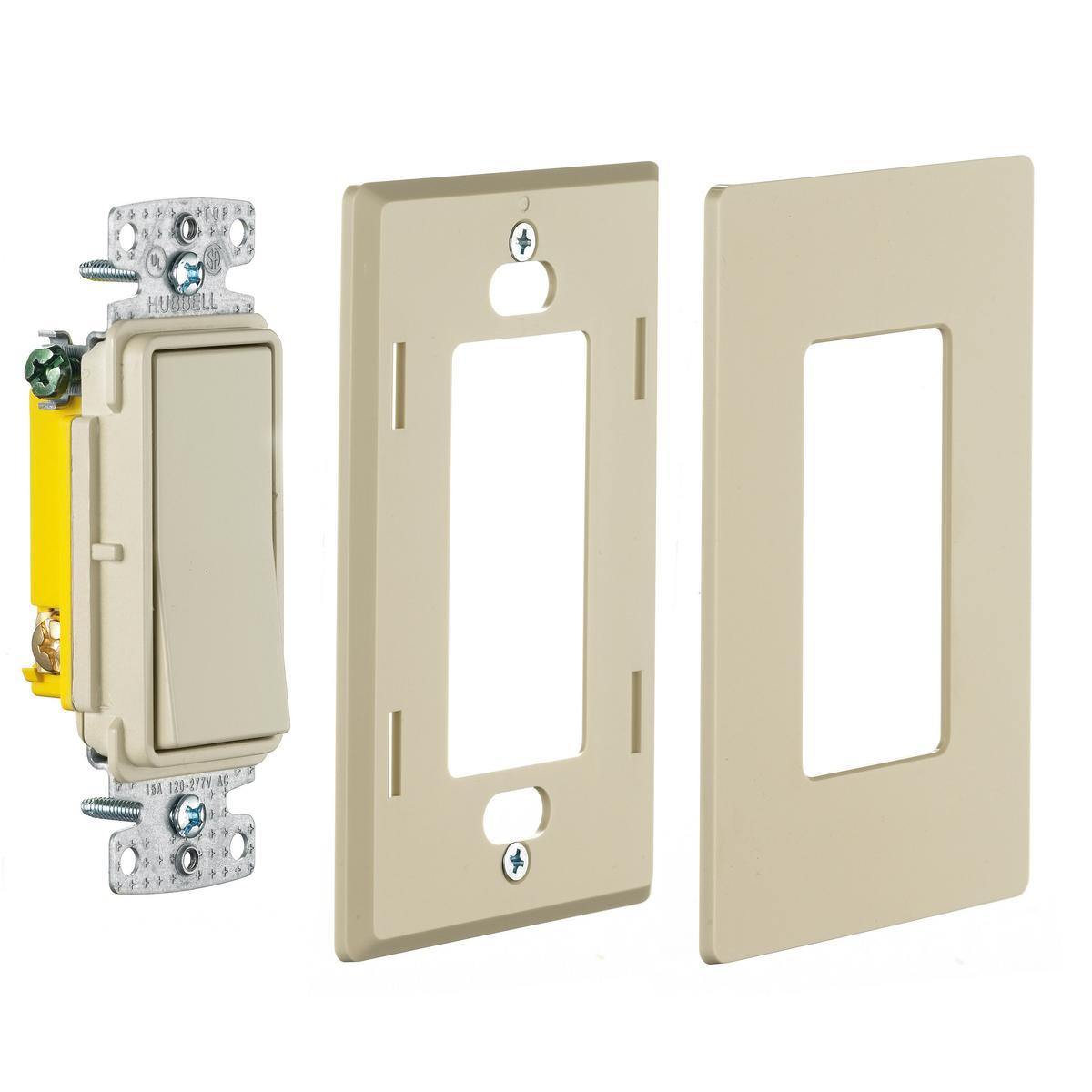

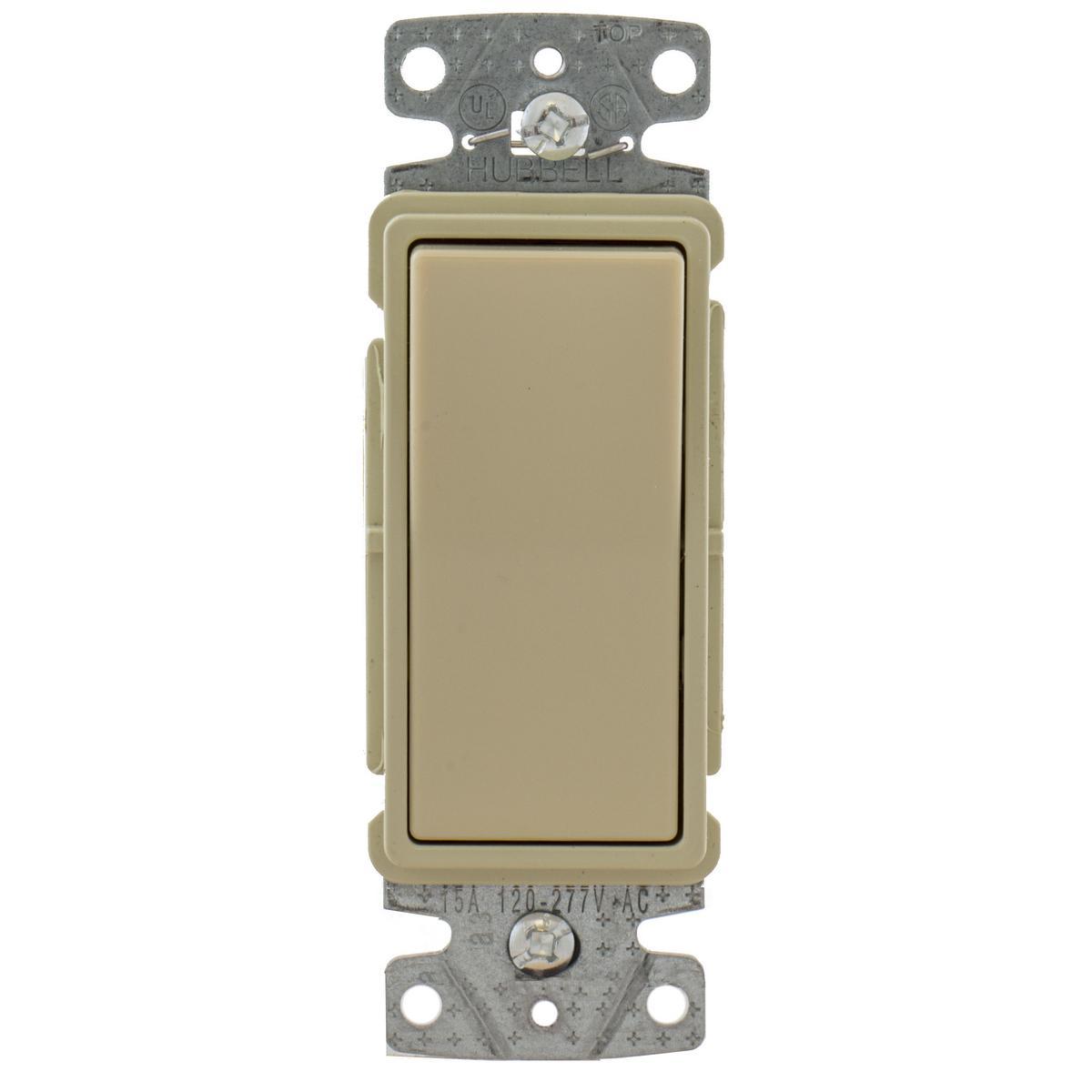

Wiring Device-Kellems RSD115I Rocker Switch 120/277 V 15 A 4155 W

Product Description

The Wiring Device-Kellems RSD115I is a residential grade self-grounding standard rocker switch designed for reliable performance. This switch operates at voltages of one hundred twenty to two hundred seventy-seven volts with a maximum amperage of fifteen amps. It provides a power rating of four thousand one hundred fifty-five watts, suitable for various home electrical applications.

• Positive snap action for smooth operation
• Threaded mounting with multiple terminal types
• Built to endure thirty thousand operating cycles

Product Highlights

This switch features a rocker actuator design, allowing for easy operation. The switch is constructed from composite material and is ideal for use in temperature conditions ranging from minus twenty to sixty degrees Celsius. The external dimensions are one point forty-seven inches wide, one point thirty-five inches deep, and four point ninety-one inches high.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 120/277 V
• Amperage Rating: 15 A
• Operating Cycles: 30000 cycles
• Power Rating: 4155 W
• Environmental Conditions: -20 to 60 deg C
• Color: Ivory
• Action: Positive Snap
• Actuator: Rocker
• Dimensions: 1.47 in W x 1.35 in D x 4.91 in H
• Material: Composite
• Mounting: Threaded
• Number of Poles: 1
• Contact Configuration: 2 Position

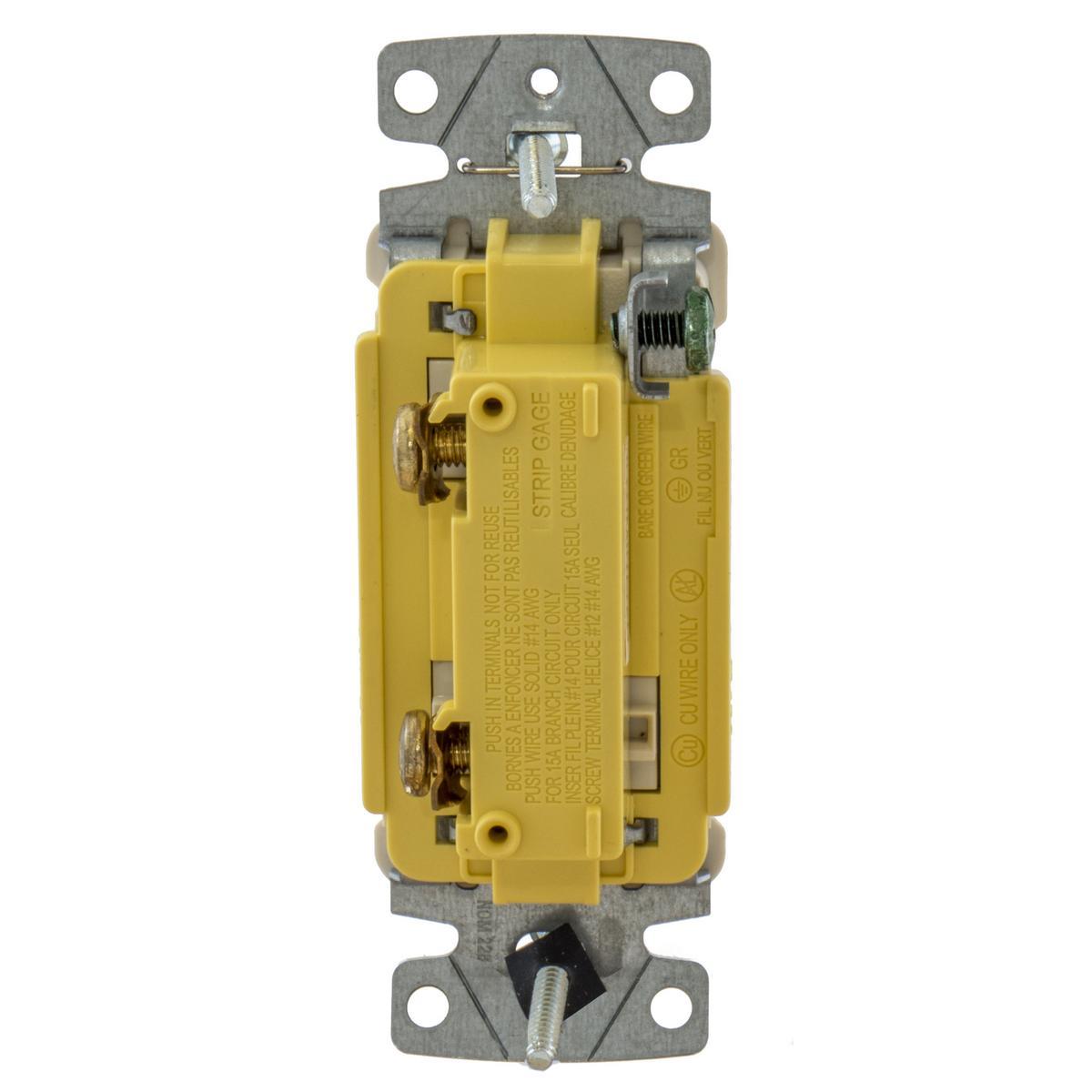

• Terminal Type: Back/Side Wire/Push-In
