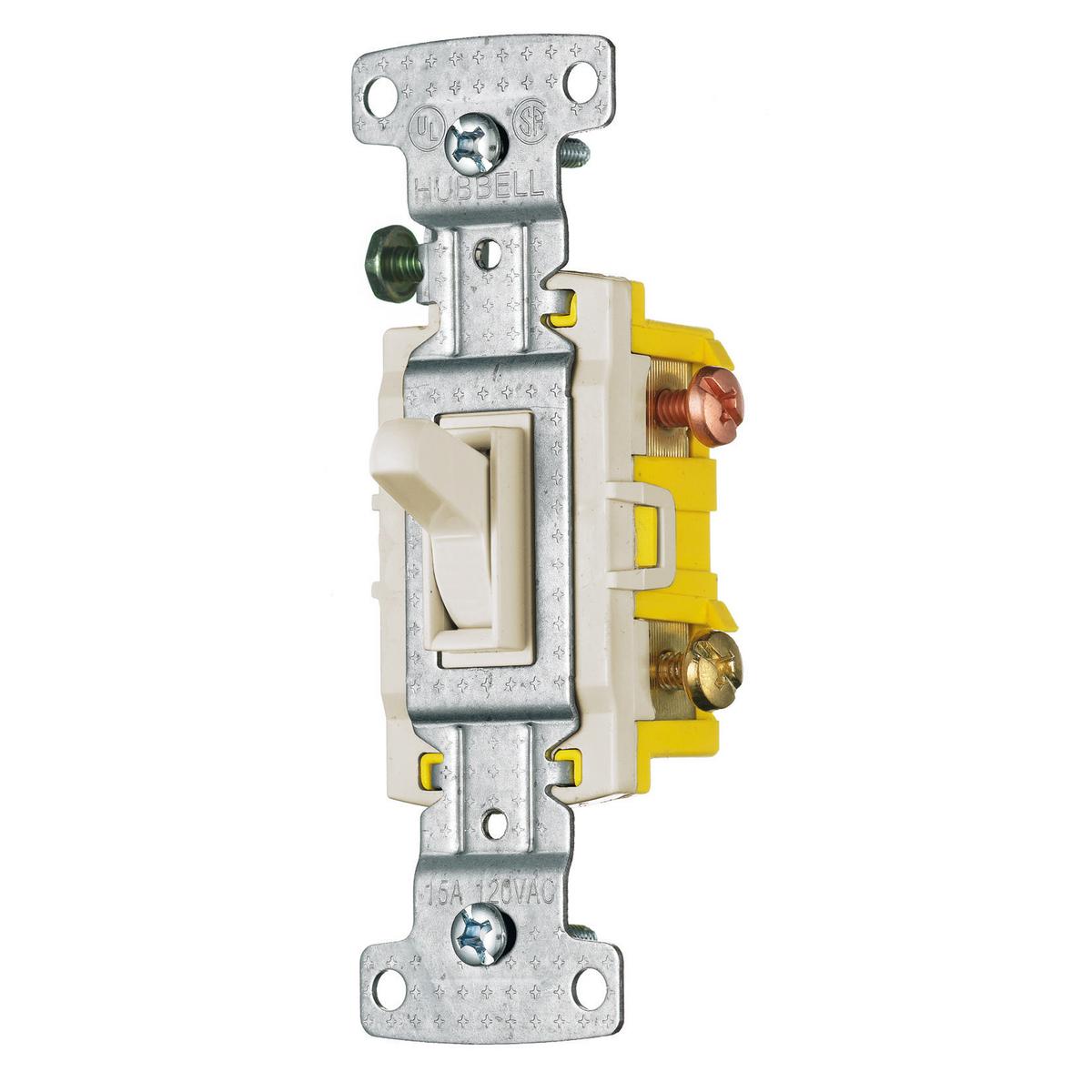

Wiring Device-Kellems RS315LA Toggle Switch 120 V 15 A 1800 W

Product Description

The Wiring Device-Kellems RS315LA is a reliable toggle switch designed for various applications requiring a 2-position configuration. It operates at 120 volts and supports an amperage of 15 A, with a power rating of 1800 W. With its compact design, this switch is suitable for standard installations. It features a toggle actuator with a NEMA WD-1 enclosure for enhanced durability and safety.

• 2-position 3-way compact standard toggle switch
• Durable thermoplastic material
• Operating cycles rated at 10,000

Product Highlights

This switch is ideal for residential or commercial wiring needs, ensuring seamless operation and easy installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Light Almond
• Enclosure: NEMA WD-1
• Environmental Conditions: -20 to 60 degrees Celsius
• Material: Thermoplastic
• Mounting: Threaded
• Number of Poles: 3
• Operating Cycles: 10,000 cycles
• Terminal Type: Push-In/Side Wire
• Type: 2-Position 3-Way Compact Standard
• Voltage Rating: 120 V
• Amperage Rating: 15 A
• Power Rating: 1800 W
• Contact Configuration: 2-Position
