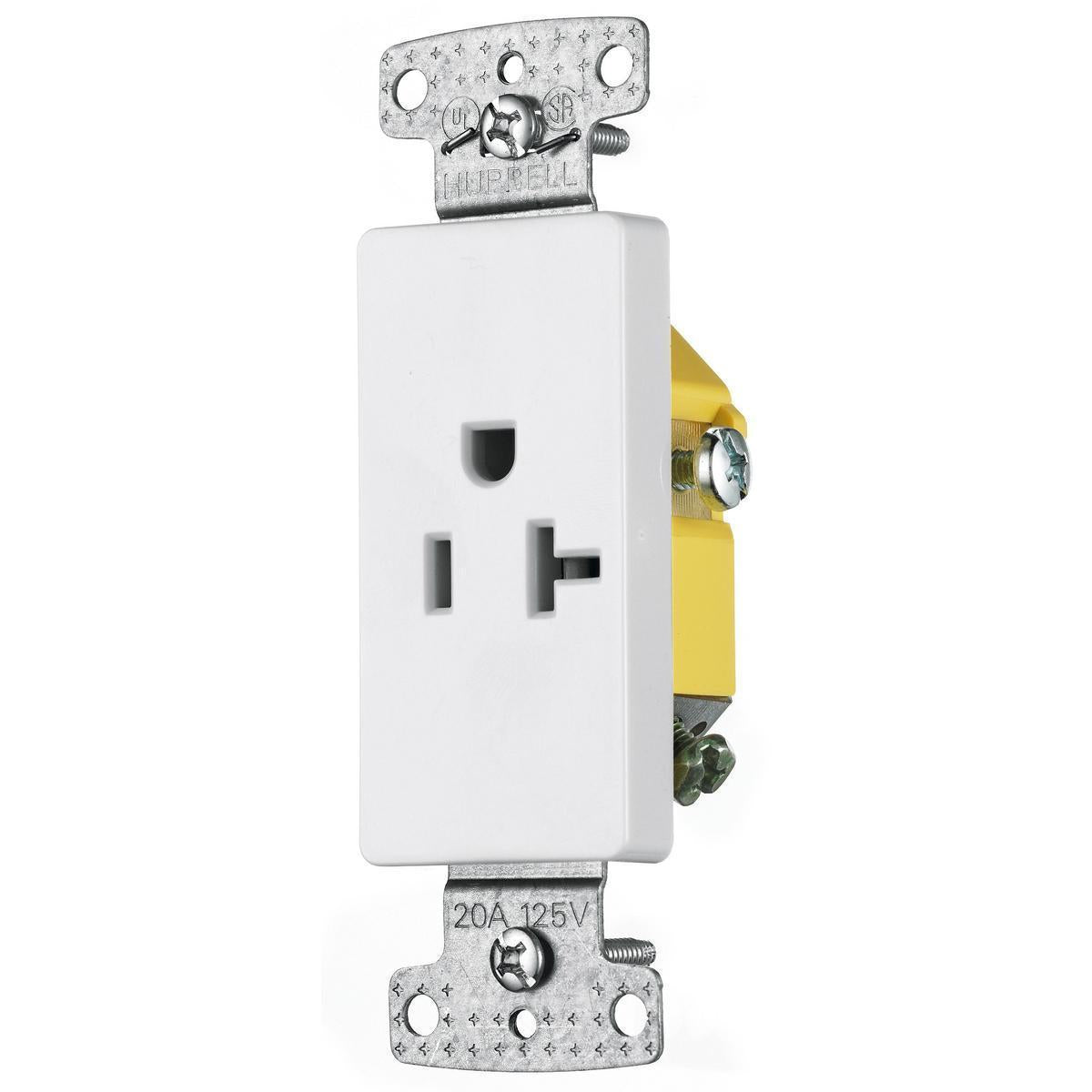

Wiring Device-Kellems RRD201W 1-Phase Decorator Single Self-Grounding Standard Screw Mount

Product Description

The Wiring Device-Kellems RRD201W is a straight blade receptacle designed for a wide range of applications. It features a 1-phase decorator style and is self-grounding. This receptacle operates at a voltage rating of 125 VAC and supports a maximum amperage of 20 A. It includes two poles and three wires, making it versatile for various electrical installations.

• Residential grade receptacle
• NEMA rating of 5-20R
• Compatible with side wire terminals

Product Highlights

This receptacle is suitable for household use and installation in residential settings. The durable thermoplastic construction provides longevity and reliability in use.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Decorator Single Self-Grounding Standard Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Material: Thermoplastic
• Color: White
• Dimensions: 4.2 inches L x 1.3 inches W x 1.01 inches H
