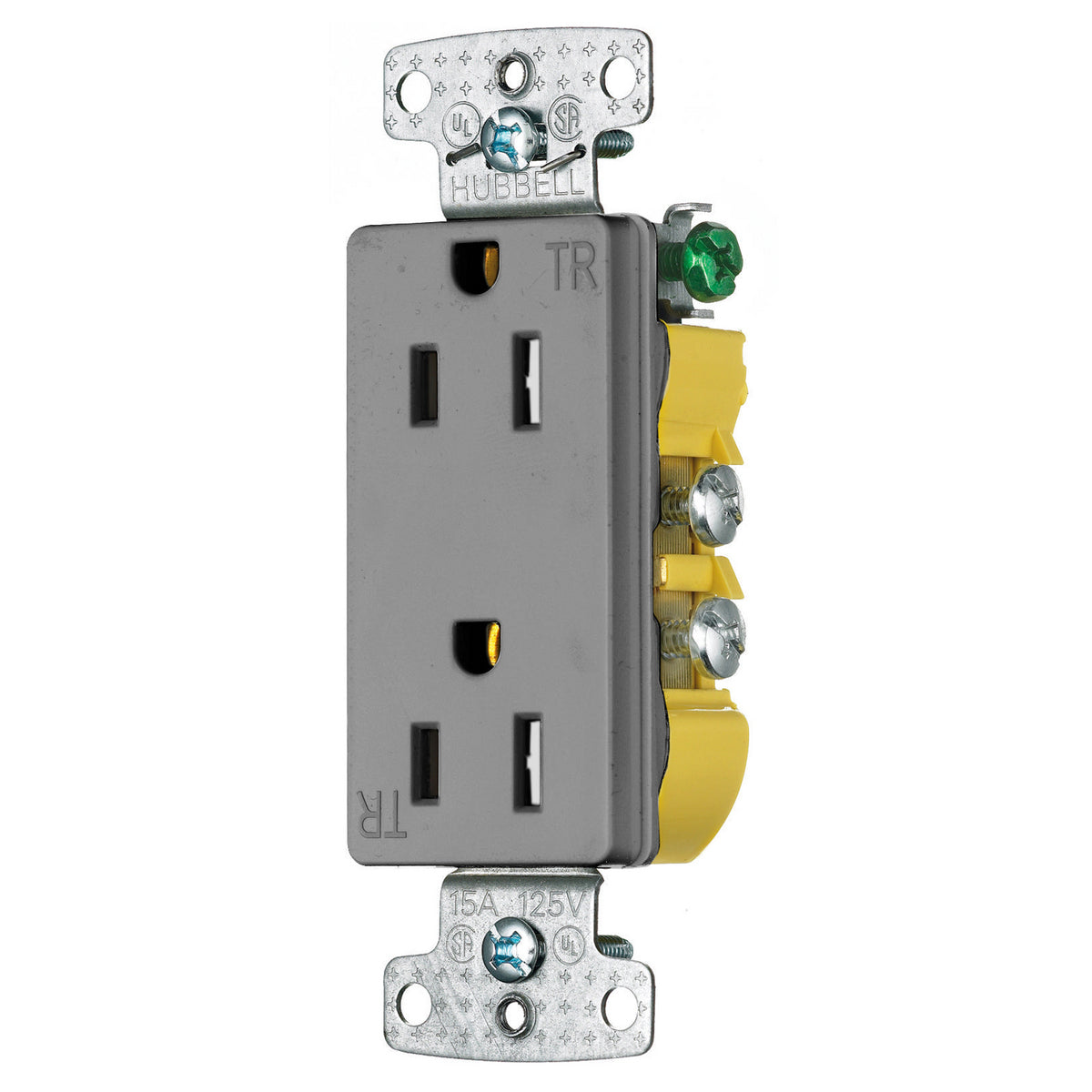

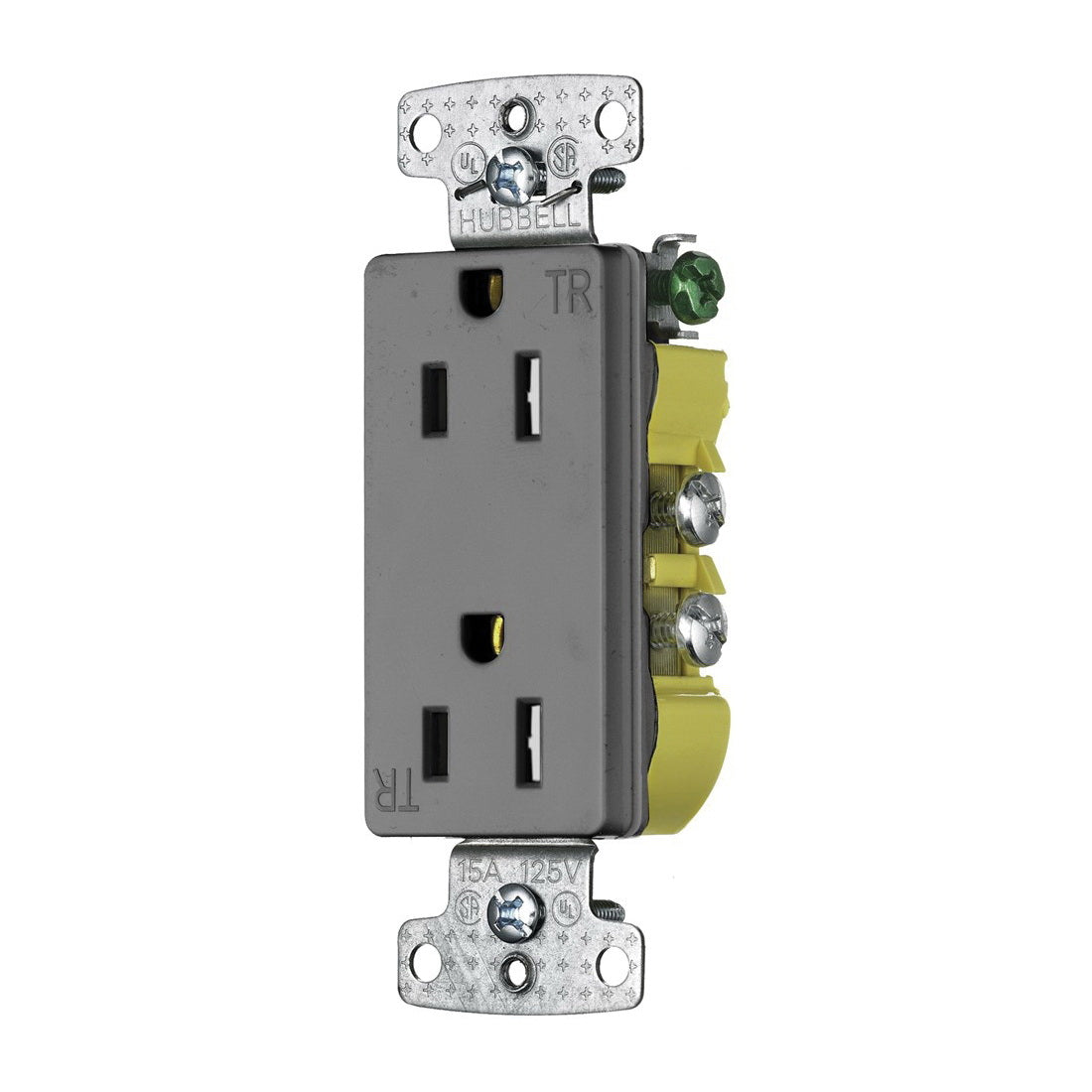

Wiring Device-Kellems RRD15SGYTR Decorator Duplex Standard Tamper-Resistant Screw Mount 125 VAC

Product Description

The Wiring Device-Kellems RRD15SGYTR is a decorator duplex standard tamper-resistant screw mount straight blade receptacle. This device operates at 125 VAC with a current rating of 15 A. It is designed for residential applications and provides reliable performance.

• Self-grounding feature is standard
• Compatible with multiple drive slot, Phillips, and Robertson head screws
• Hi-visibility yellow base for easy installation

Product Highlights

This receptacle features a thermoplastic construction, making it durable and suitable for various installations. It has a NEMA rating of 5-15R and can operate within a temperature range of -20 to 60 degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 1.52 in W x 0.93 in D x 4.19 in H
• Grade: Residential
• Horsepower: 1/2 hp
• Material: Thermoplastic
• NEMA Rating: 5-15R
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Side and Push-In Wired
• Type: 1-Phase Decorator Duplex Standard Tamper-Resistant Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
