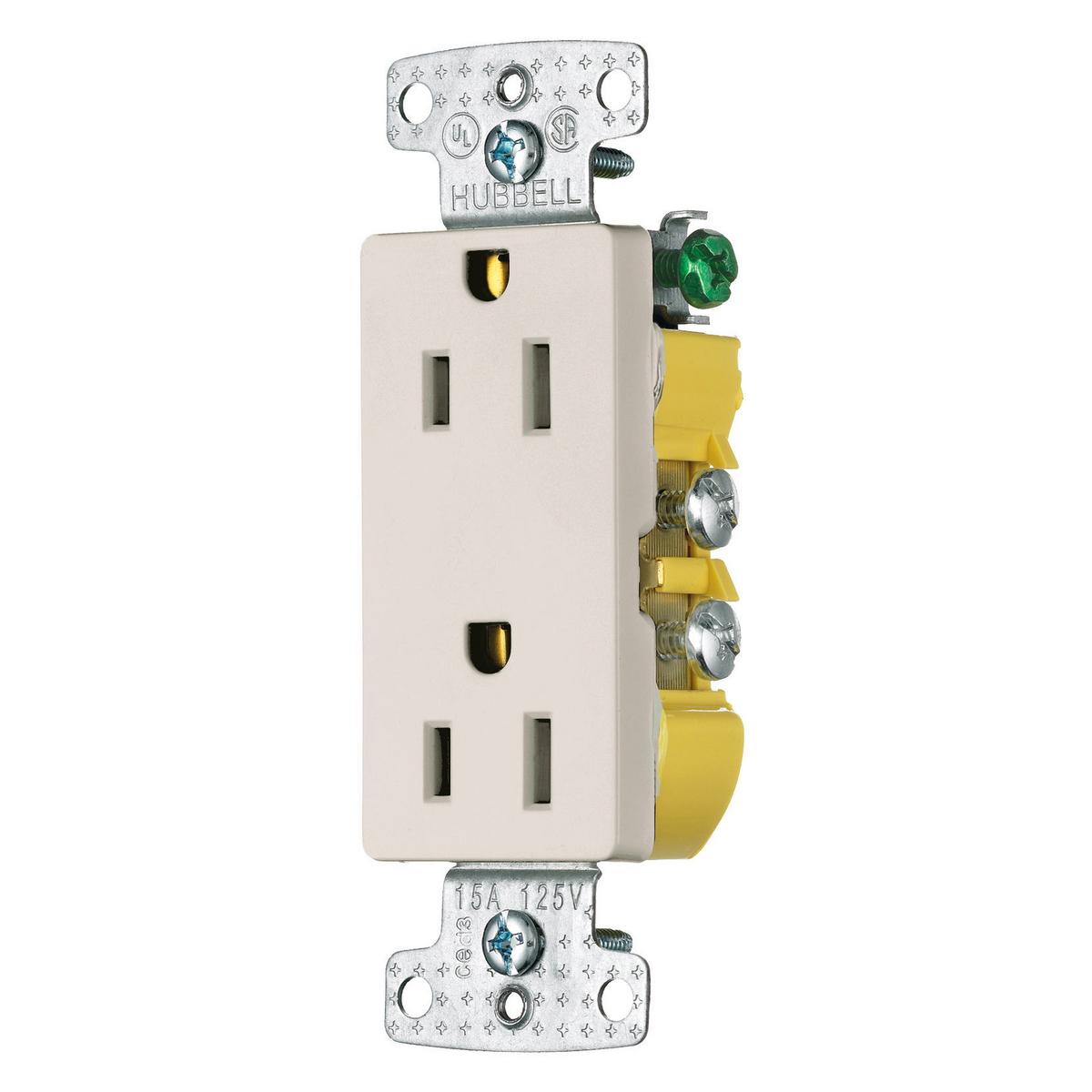

Wiring Device-Kellems RRD15LA 1-Phase Decorator Duplex Grounding Standard Screw Mount

Product Description

The Wiring Device-Kellems RRD15LA is a straight blade receptacle designed for residential use. This model has a 1-phase decorator duplex grounding and features a standard screw mount for easy installation. It operates at 125 VAC and provides a current of fifteen amps. The device consists of two poles and three wires, ensuring reliable functionality with a NEMA rating of five-fifteen R.

• Self-grounding feature is standard.
• Includes multiple drive slot/Phillips and Robertson head screws.
• Hi-visibility yellow base for easy installation.

Product Highlights

This receptacle is suitable for various applications, ensuring safety and convenience. It is made from thermoplastic material, available in light almond color, blending well with standard home decor.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: RRD15LA

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 4.19 inches L x 1.52 inches W x 0.93 inches H
• Material: Thermoplastic
• Color: Light Almond
• NEMA Rating: 5-15R
• Terminal Type: Push-In/Side Wire
