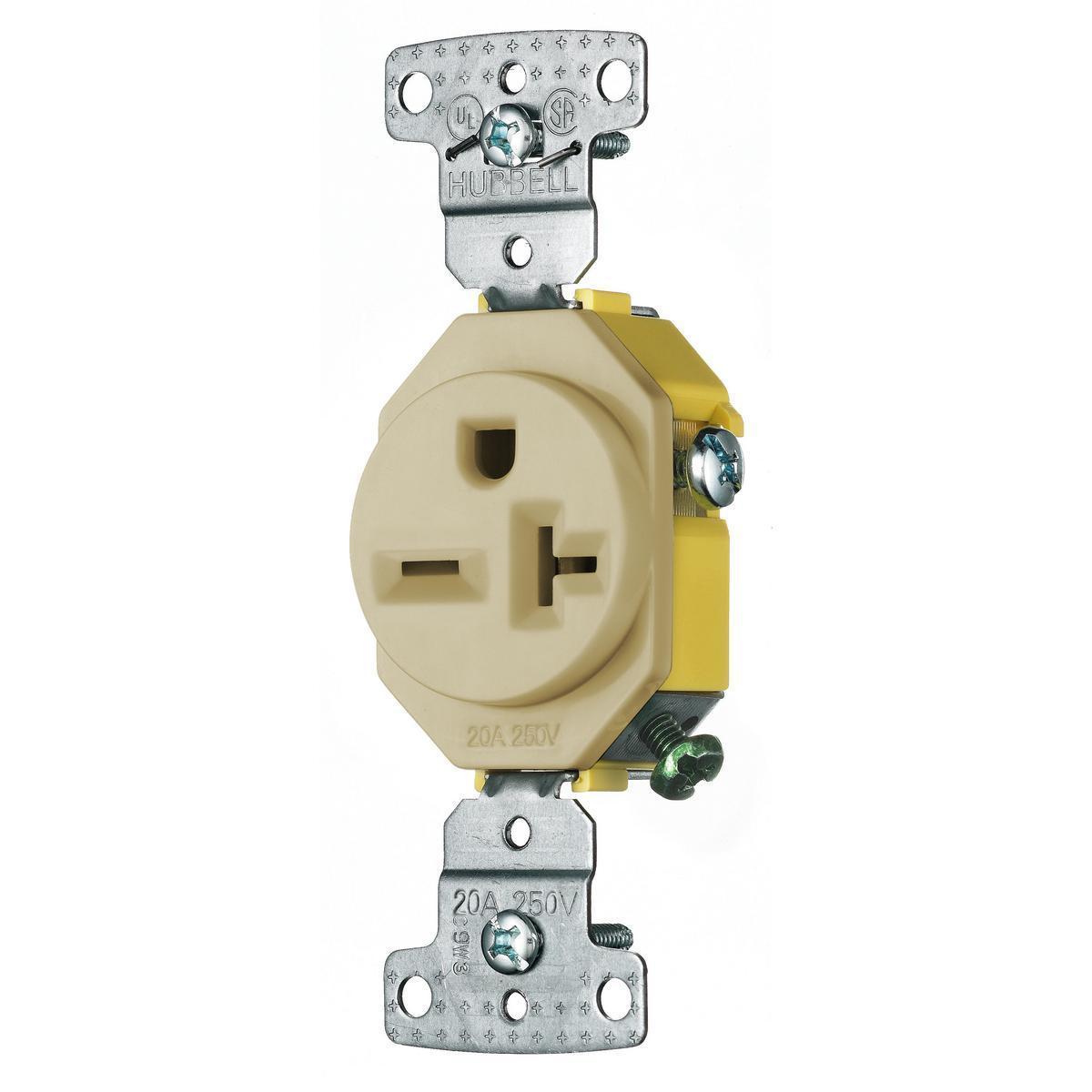

Wiring Device-Kellems RR205I 1-Phase Single Standard Screw Mount

Product Description

The Wiring Device-Kellems RR205I is a straight blade receptacle designed for reliable electrical connections. This receptacle supports a voltage rating of two hundred fifty volts alternating current and an amperage of twenty amps. It features a side wire terminal and is constructed from thermoplastic material for durability.

• 1-Phase single standard screw mount
• NEMA rating of 6-20R
• Dimensions: 1.38 inches wide, 1.01 inches deep, 4.2 inches high

Product Highlights

This device is ideal for residential and commercial applications where individual receptacles are needed.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Single Standard Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• NEMA Rating: 6-20R
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic
• Color: Ivory
• Dimensions: 1.38 inches W x 1.01 inches D x 4.2 inches H
