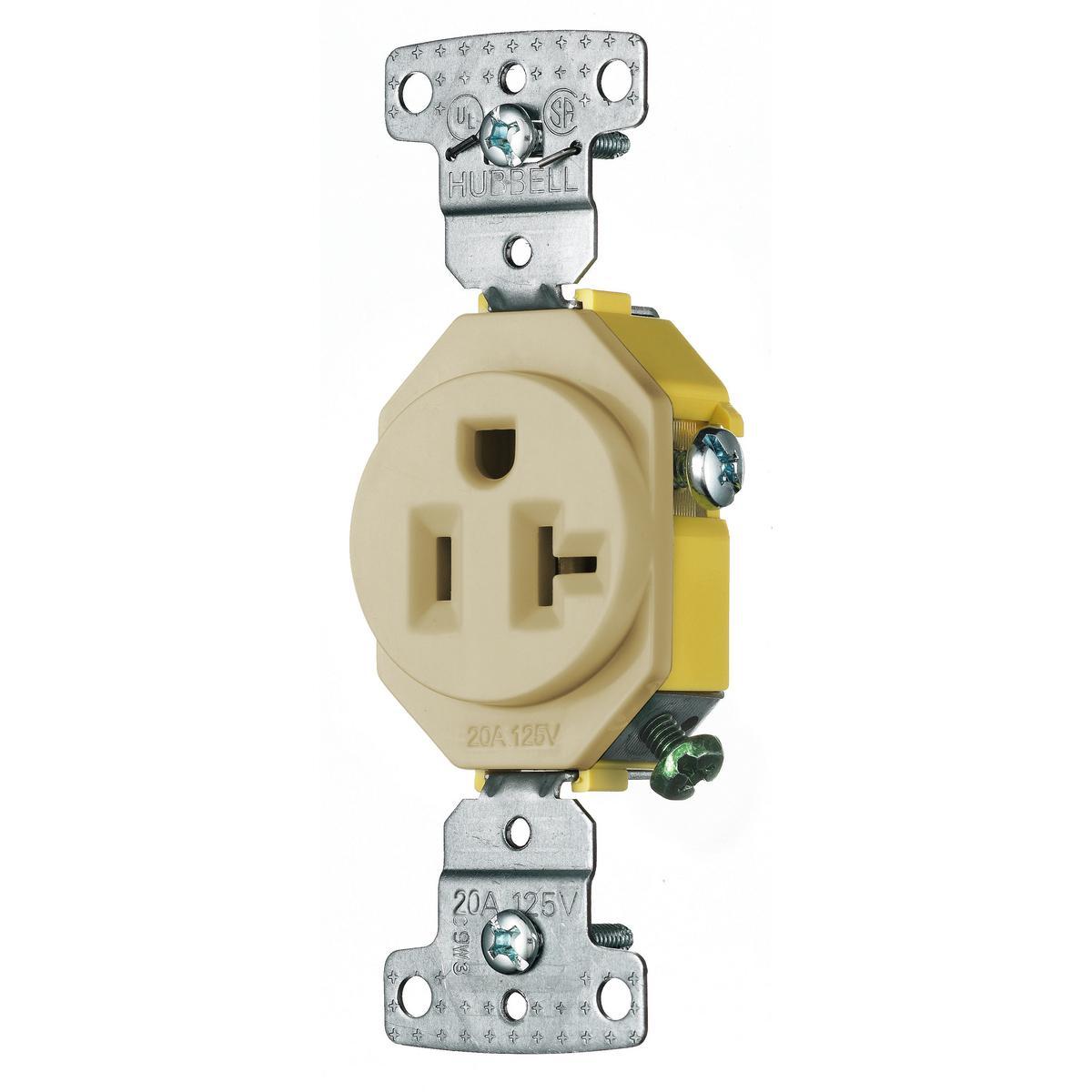

Wiring Device-Kellems RR201I RR201 1-Phase Single Standard Screw Mount 125 VAC

Product Description

The Wiring Device-Kellems RR201I is a straight blade receptacle designed for use in residential settings. This product is rated for one phase with a voltage of one hundred twenty-five volts and an amperage of twenty amps. The RR201I features a two-pole, three-wire configuration.

• Self-grounding receptacle
• 5-20R NEMA rating
• Thermoplastic construction

Product Highlights

This receptacle includes side wire terminals and a residential grade design, making it suitable for various applications. Its compact dimensions ensure a convenient fit.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Series: RR201
• Dimensions: 1.38 inches W x 1.01 inches D x 4.2 inches H
• Grade: Residential
• Material: Thermoplastic
• NEMA Rating: 5-20R
• Type: 1-Phase Single Standard Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Ivory
