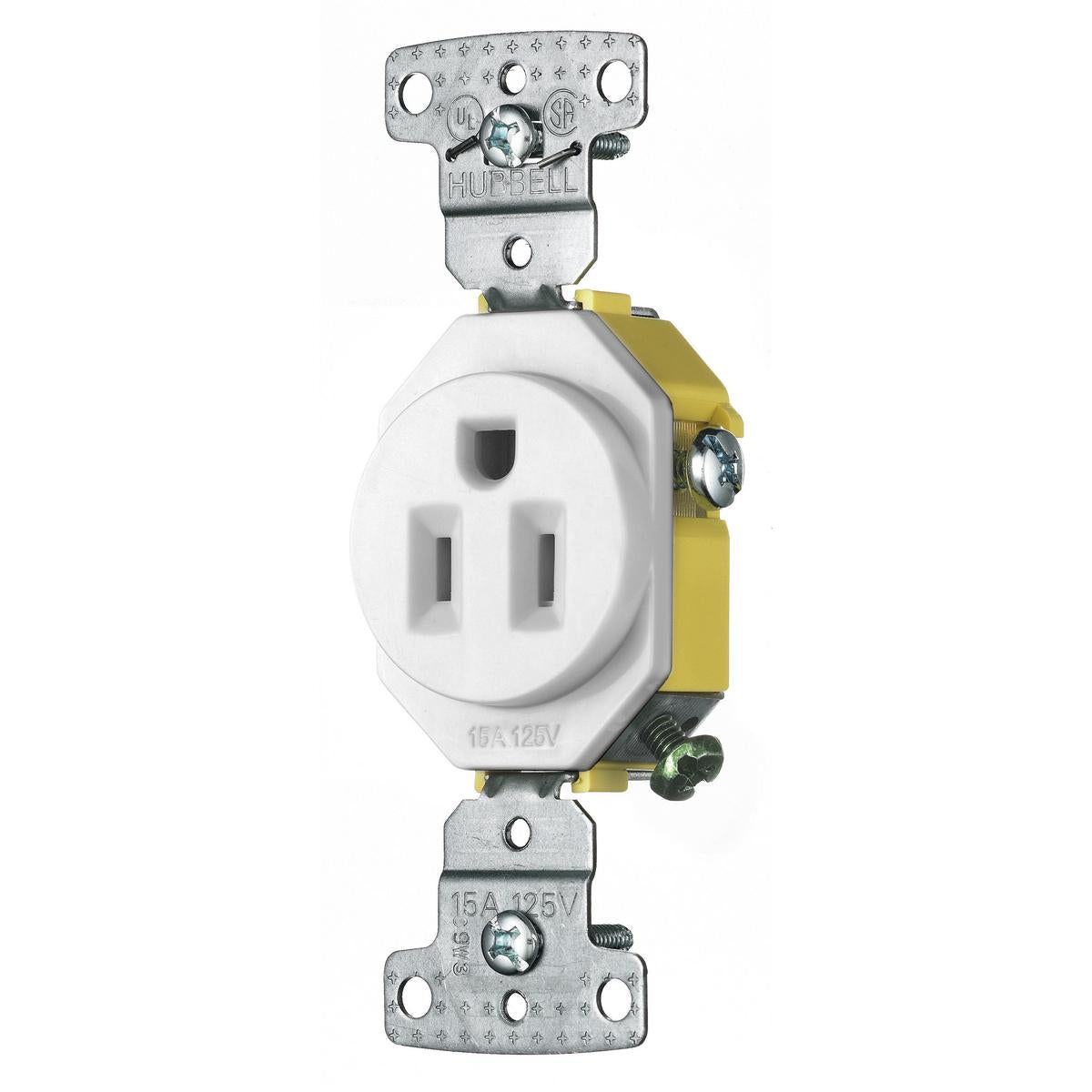

Wiring Device-Kellems RR151W Wiring Device 1-Phase Single Standard Screw Mount 125 VAC

Product Description

The Wiring Device-Kellems RR151W is a reliable straight blade receptacle designed for various residential applications. This device features a single standard screw mount for easy installation. It supports a voltage of 125 VAC and an amperage of fifteen A. Suitable for two poles and three wires, this model is built from thermoplastic material, offering durability in various conditions. Its temperature rating ranges from negative twenty degrees to sixty degrees Celsius.

• Standard screw mount for easy installation
• Designed for residential use with a 125 VAC voltage rating
• Compatible with 14 to 12 AWG wire size

Product Highlights

Self-grounding design enhances safety and ensures effective operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 1.38 inches W x 1.01 inches D x 4.2 inches H
• Grade: Residential
• Material: Thermoplastic
• NEMA Rating: 5-15R
• Series: RR151
• Temperature Rating: -20 to 60 degrees C
• Terminal Type: Side Wire
• Type: 1-Phase Single Standard Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: White
