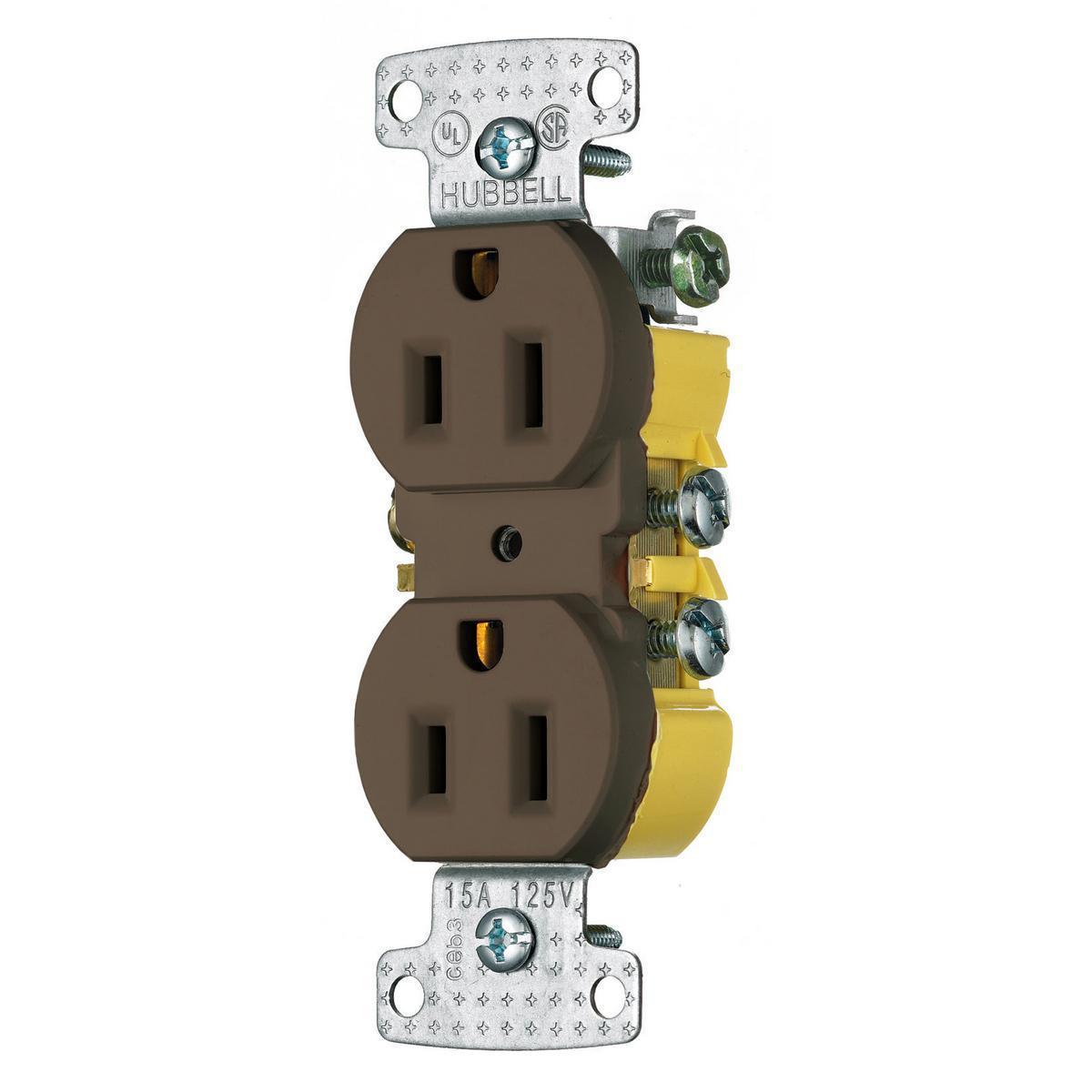

Wiring Device-Kellems RR15 Straight Blade Receptacle

Product Description

The Wiring Device-Kellems RR15 is a straight blade receptacle designed for 1-phase duplex applications. This standard screw mount receptacle operates at 125 VAC, with a current rating of 15 A and is rated for 1/2 horsepower. It features two poles and three wires, ensuring reliable electrical connectivity.

• Standard screw mount design
• Rated for 125 VAC and 15 A
• Thermoplastic construction for durability

Product Highlights

This receptacle is built for heavy-duty performance and can support various electrical systems. Ideal for both residential and commercial applications, it ensures safe power distribution in equipment and appliances.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-Phase Duplex Standard Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• Material: Thermoplastic
• NEMA Rating: 5-15R
• Terminal Type: Push-In/Side Wire
• Dimensions: 1.52 inches W x 0.93 inches D x 4.19 inches H
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
