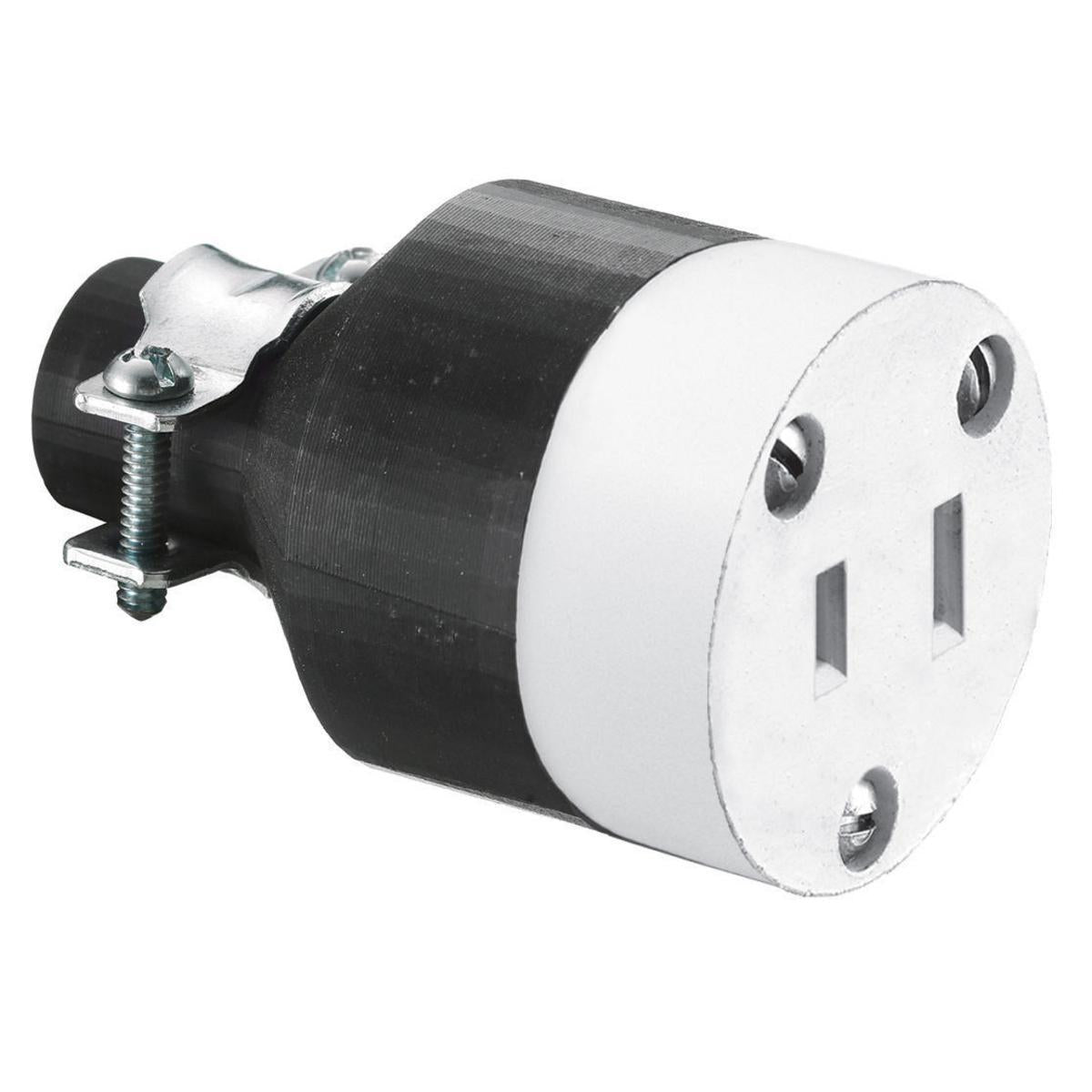

Wiring Device-Kellems RP649 Straight Blade Connector 125 VAC 15 A

Product Description

The Wiring Device-Kellems RP649 is a female heavy duty polarized standard sized cord mount straight blade connector. It operates at 125 VAC and has a 15 A rating with two poles and two wires. This connector features a compatible design suitable for residential use and is ideal for various electrical applications.

• Cord mounted for easy installation
• Temperature rating from -40 to 75 degrees Celsius
• Composite material enhances durability

Product Highlights

This device offers robust construction with a NEMA rating of 1-15R, ensuring it meets safety standards for residential situations.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 2
• Cord Diameter: 0.4 in
• Dimensions: 1.49 in Dia x 2.67 in L
• Grade: Residential
• Material: Composite
• NEMA Rating: 1-15R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Screw
• Color: Black/White
