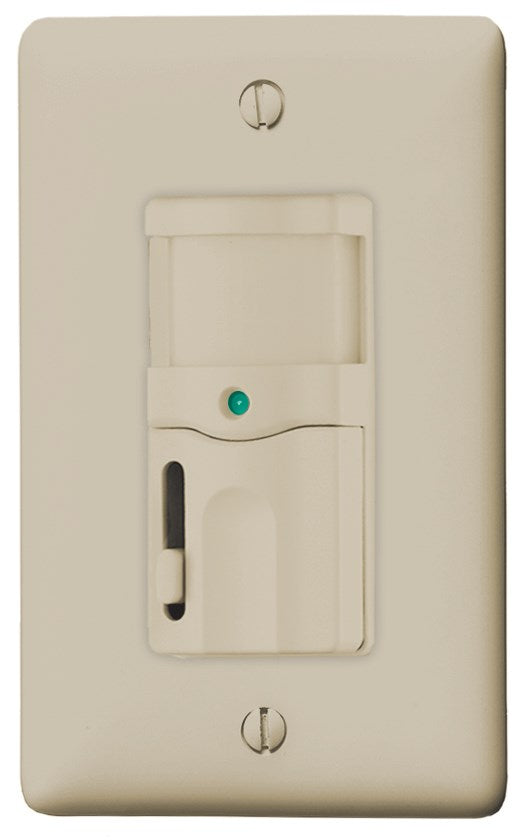

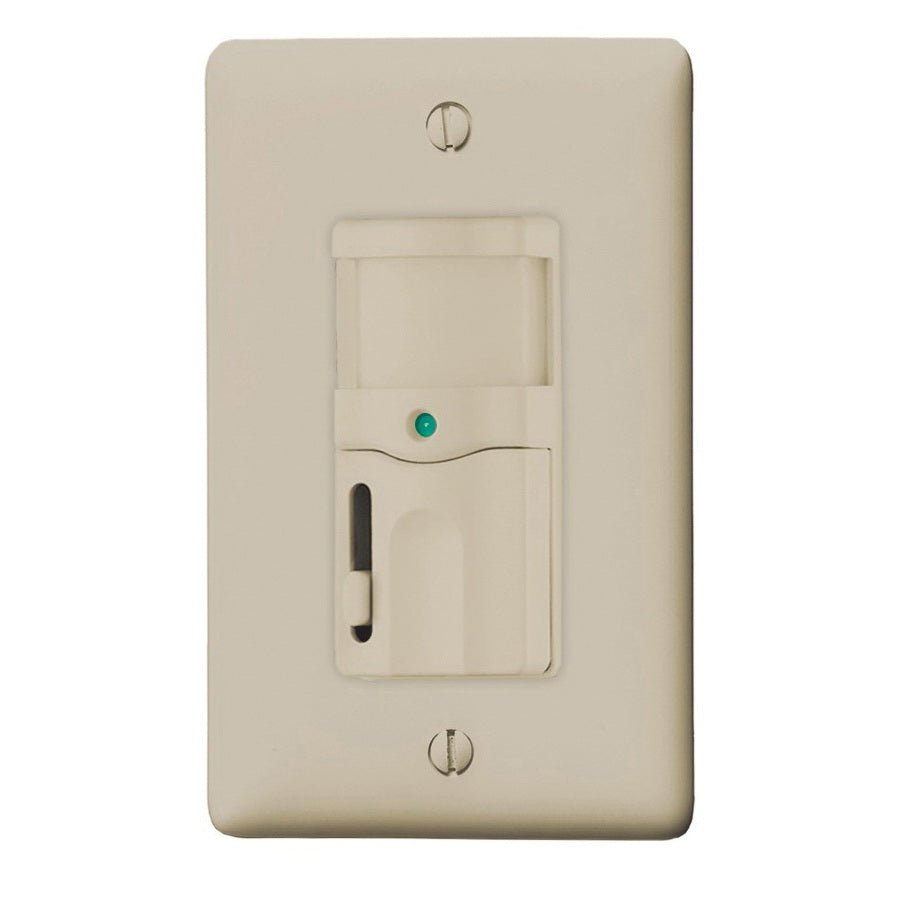

Wiring Device-Kellems RMS121I 1-Pole Adjustable Standard Dimming Sensor Switch 120 VAC

Product Description

The Wiring Device-Kellems RMS121I is a dimming sensor switch designed for efficient lighting control in various settings. This 1-Pole Adjustable Standard Dimming Sensor Switch operates at 120 VAC and utilizes a passive infrared sensor. It has a coverage area of eight hundred square feet and a viewing angle of one hundred fifty degrees, making it suitable for larger rooms.

• Automatic on/off control output for energy savings
• Compatible with incandescent lamps up to five hundred watts
• Adjustable time delay between thirty seconds to thirty minutes

Product Highlights

This sensor switch provides reliable performance with a sensing range of 42 to 54 inches above the floor. It is equipped with a photocell for daylight harvesting, which helps in energy conservation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Color: Ivory
• Connection Type: Wire Lead
• Control Output: Automatic On/Automatic Off
• Lamp Type: Incandescent
• Power Rating: 500 W
• Temperature Rating: 32 to 104 deg F
• Time Delay: 30 s to 30 min
• Type: 1-Pole Adjustable Standard
• Voltage Rating: 120 VAC
• Sensor Type: Passive Infrared
• Coverage: 800 sq-ft
• Viewing Angle: 150 deg
• Mounting Type: Threaded
