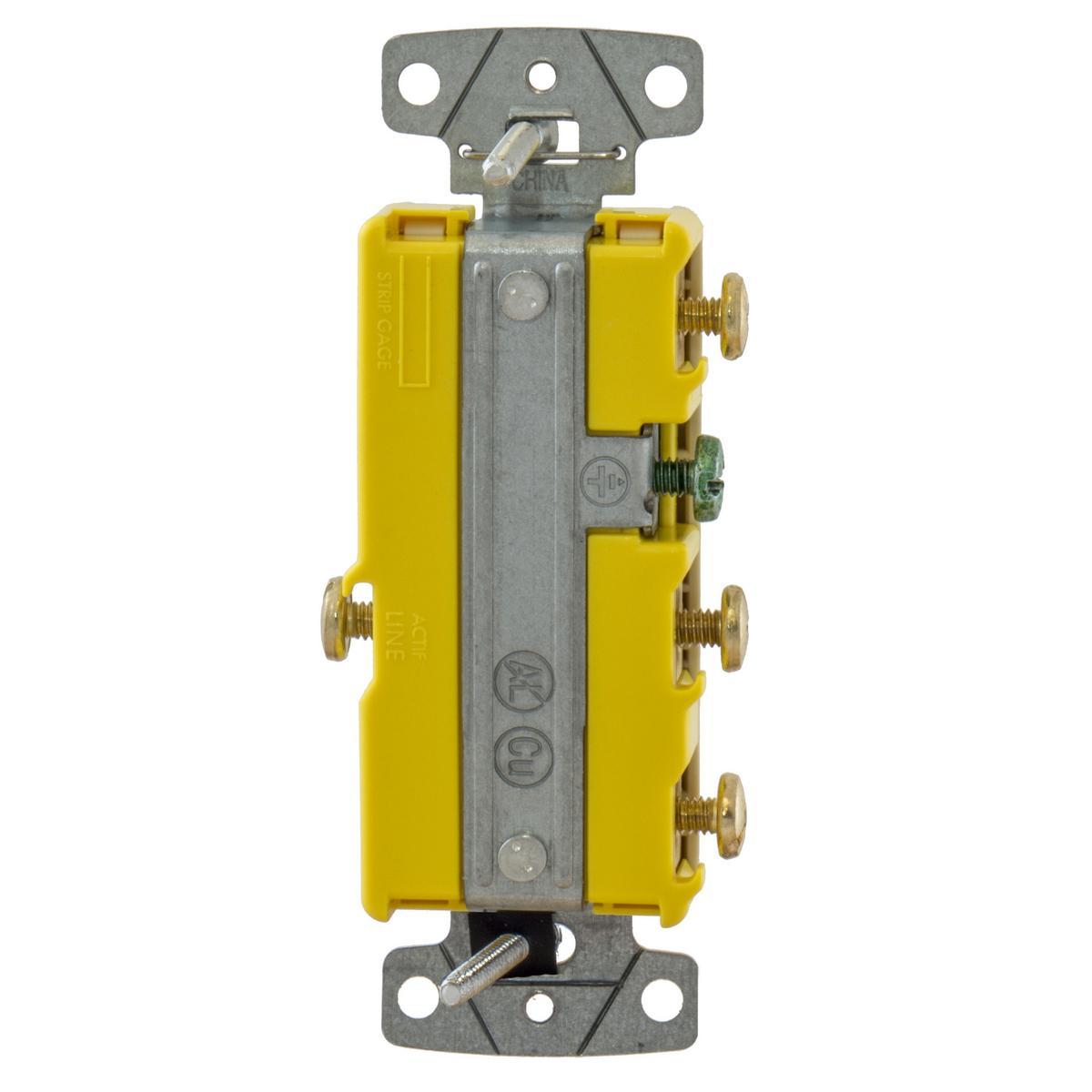

Wiring Device-Kellems RCD111LA standard combination switch 120/277 VAC 3-way 2-position

Product Description

The Wiring Device-Kellems RCD111LA is a combination switch designed for 3-way operation. This switch operates at 120/277 VAC and supports a power rating of up to 4155 W. It features a 2-position contact configuration and is suitable for various applications, including residential and commercial projects.

• 3-way operation allows control from multiple locations.
• Durable design with a composite material that can withstand various environmental conditions.
• Compatibility with 14 to 12 AWG solid and stranded copper wire for easy installation.

Product Highlights

This switch features a rocker actuator for smooth operation and a low-profile design that fits standard display sizes.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Action: Snap Switch
• Actuator: Rocker
• Color: Light Almond
• Dimensions: 1.32 in W x 1 in D x 4.2 in H
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Material: Composite
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 30000 Cycles
• Series: Decorator
• Terminal Type: Side Wire
• Type: 3-Way 2-Position Standard
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
