Wiring Device-Kellems RCD101W Combination Switch 2-Position Standard RCD101W HW

Product Description

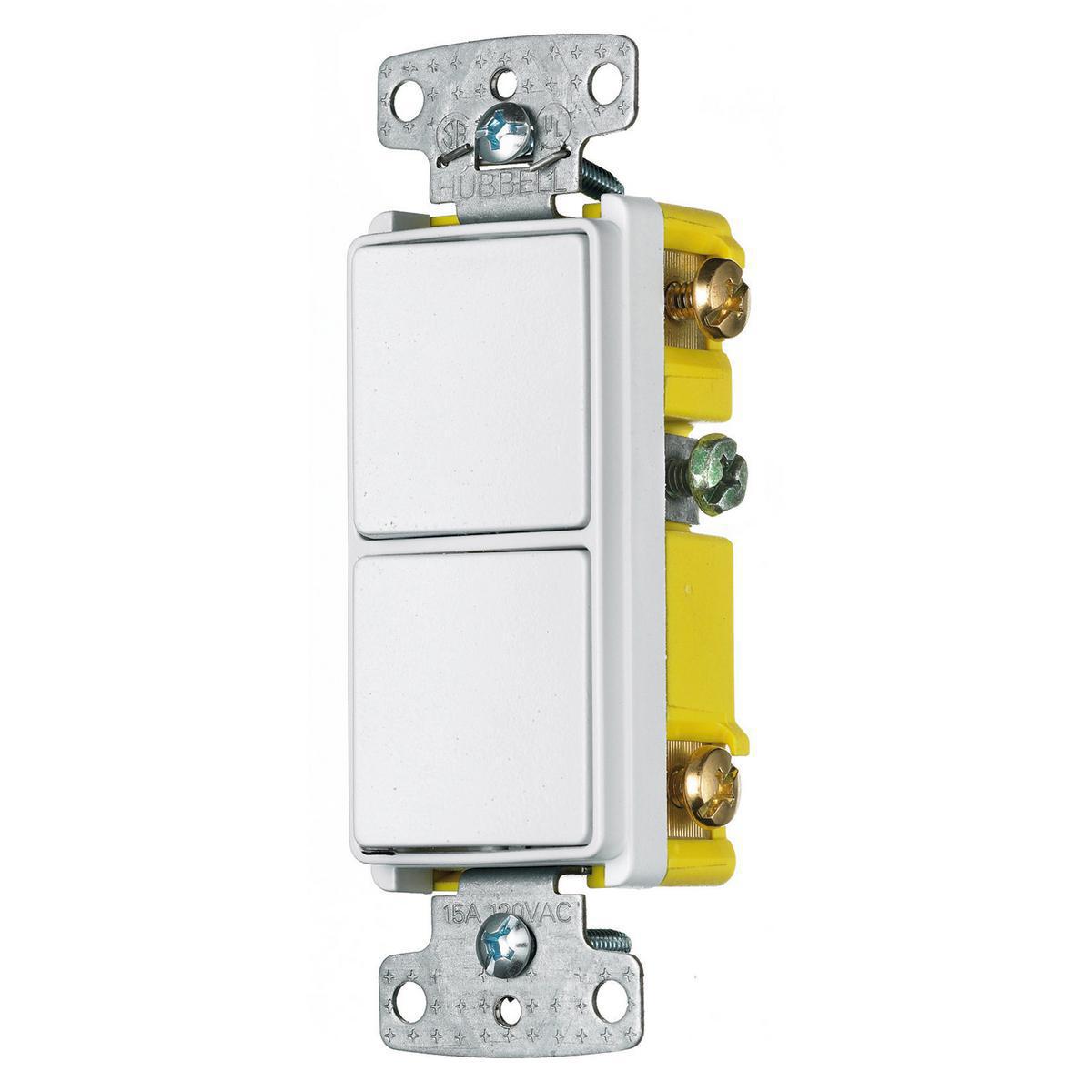

The Wiring Device-Kellems RCD101W is a combination switch with a two-position standard configuration. It supports voltages up to 120/277 VAC and has a current rating of fifteen amperes. Developed by Hubbell, this switch is suitable for various electrical applications.

• Two-position contact configuration
• Snap switch action with rocker actuator
• Operating temperature ranges from -20 to 60 degrees Celsius

Product Highlights

This switch features a side wire terminal and can undergo up to thirty thousand operating cycles. Its compact design fits into a standard single gang box.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Action: Snap Switch
• Actuator: Rocker
• Color: White
• Dimensions: 1.32 in W x 1 in D x 4.2 in H
• Environmental Conditions: -20 to 60 deg C Operating Temperature
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 30000 Cycles
• Series: Decorator
• Terminal Type: Side Wire
• Type: 2-Position Standard
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
• Contact Configuration: 2-Position
