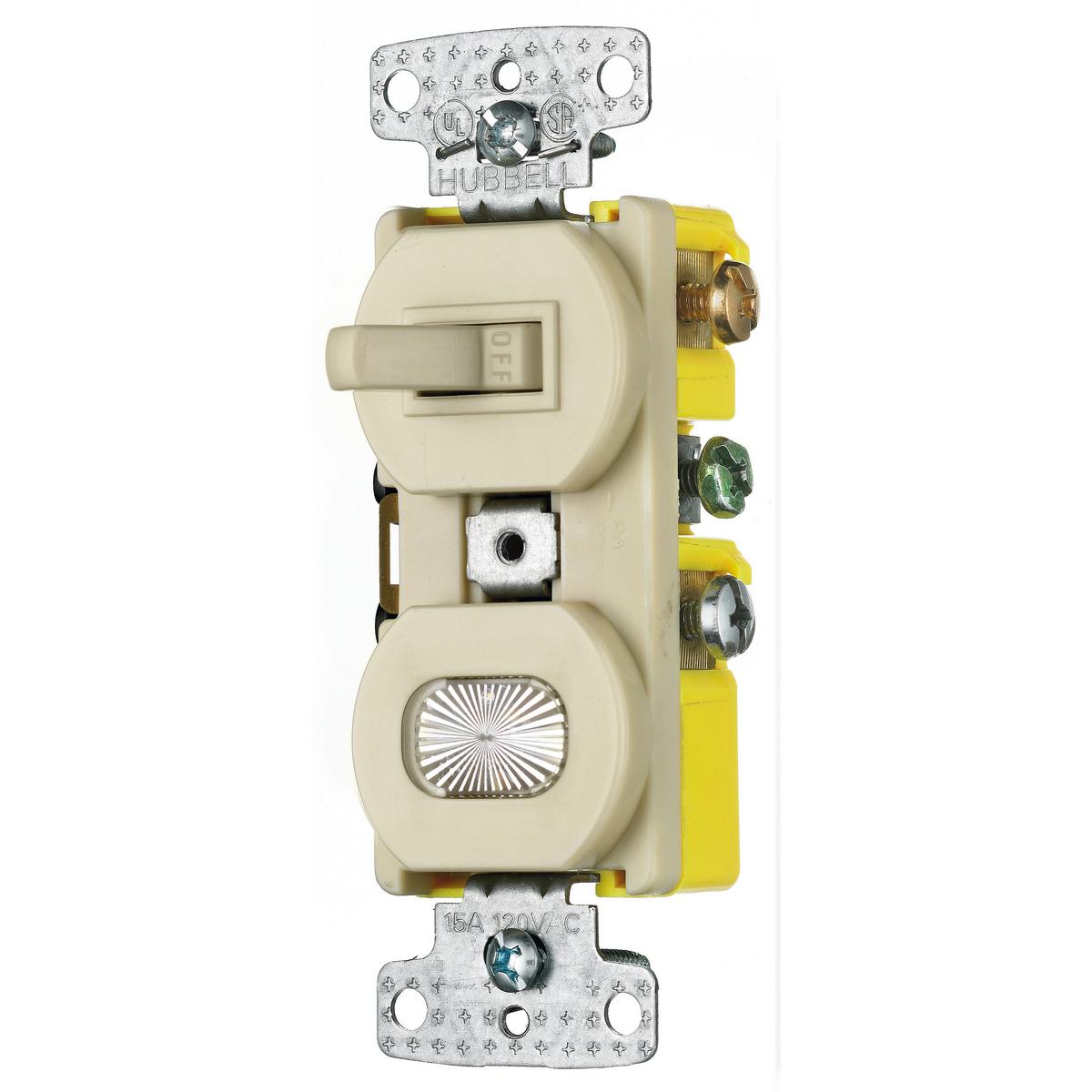

Wiring Device-Kellems RC109I Combination Toggle Switch 120 VAC 15 A

Product Description

The Wiring Device-Kellems RC109I is a combination toggle switch designed for various electrical applications. This switch operates at 120 VAC and can handle a maximum load of 15 A, making it suitable for residential and commercial use.

• Standard-sized combination toggle switch
• Features an amber neon pilot lamp
• Snap action design for reliable performance

Product Highlights

This device is ideal for controlling lights and other fixtures. It comes with a threaded mounting for easy installation and supports side wire connections to enhance versatility.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: Standard Sized
• Color: Ivory
• Action: Snap
• Contact Configuration: 2-Position
• Contact Rating: 15 A
• Voltage Rating: 120 VAC
• Wattage: 1800 W
• Dimensions: 1.32 in W x 1.53 in D x 4.2 in H
• Lamp Type: Amber Neon Pilot
• Material: Composite
• Mounting: Threaded
• Amperage Rating: 15 A
• Number of Poles: 1
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Side Wire
