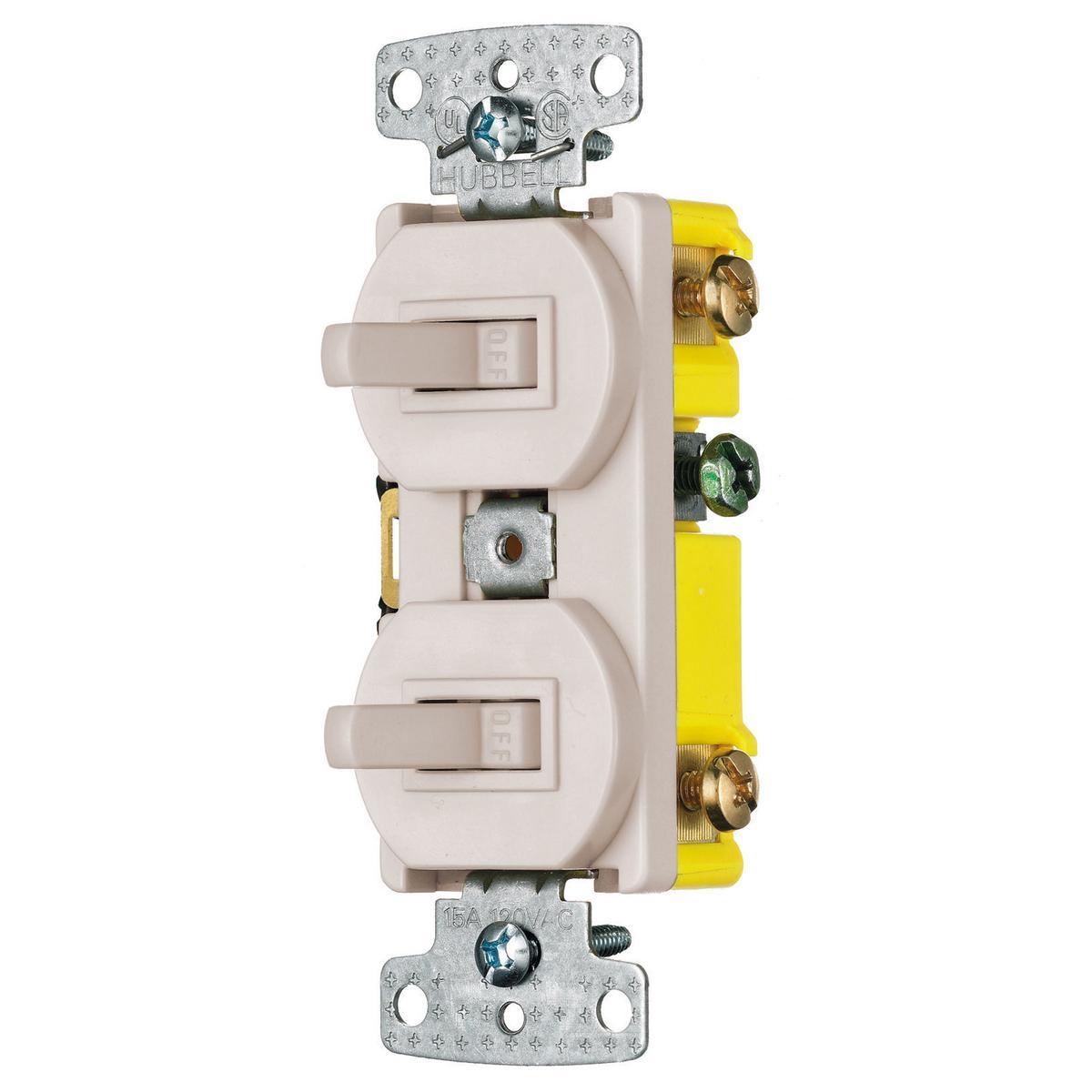

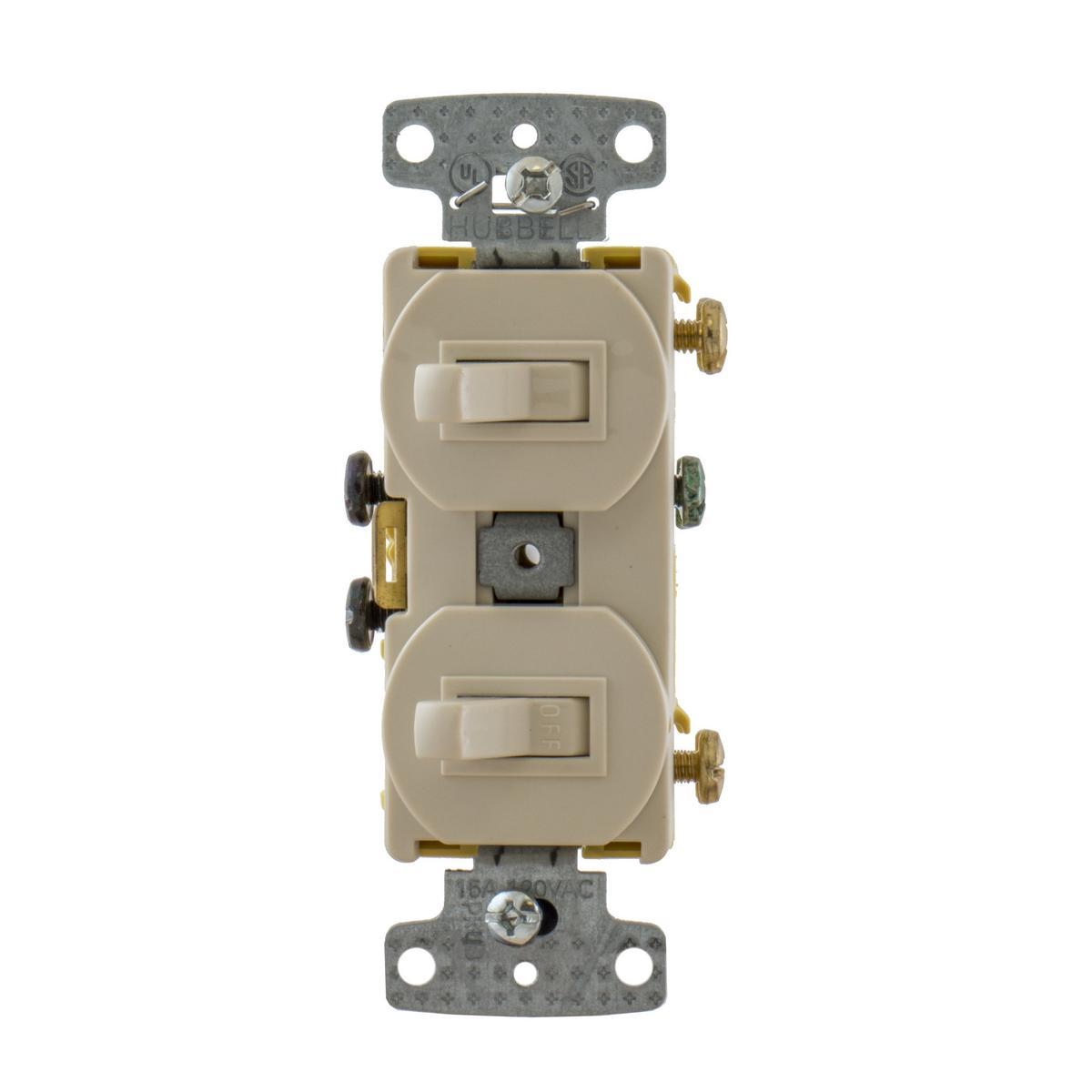

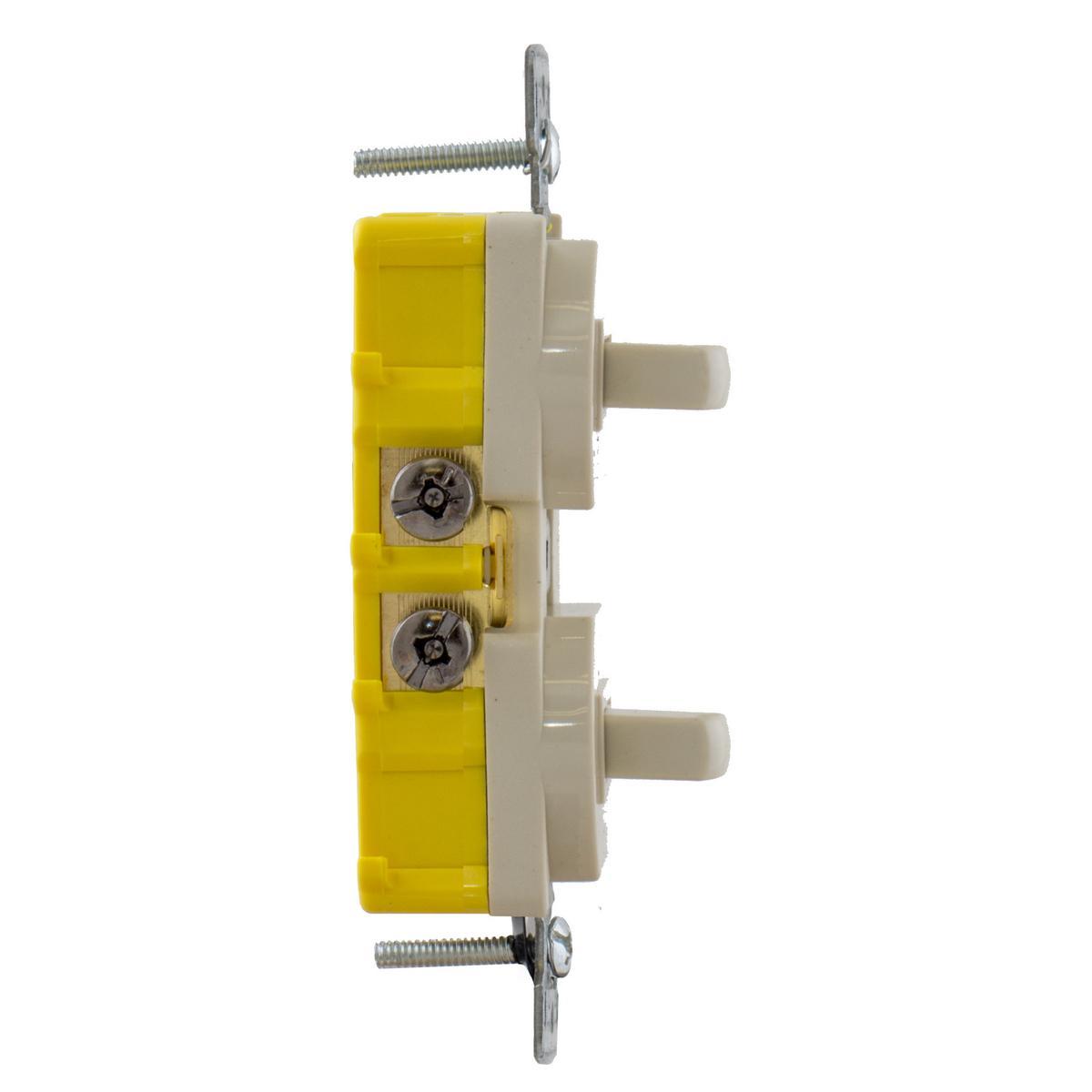

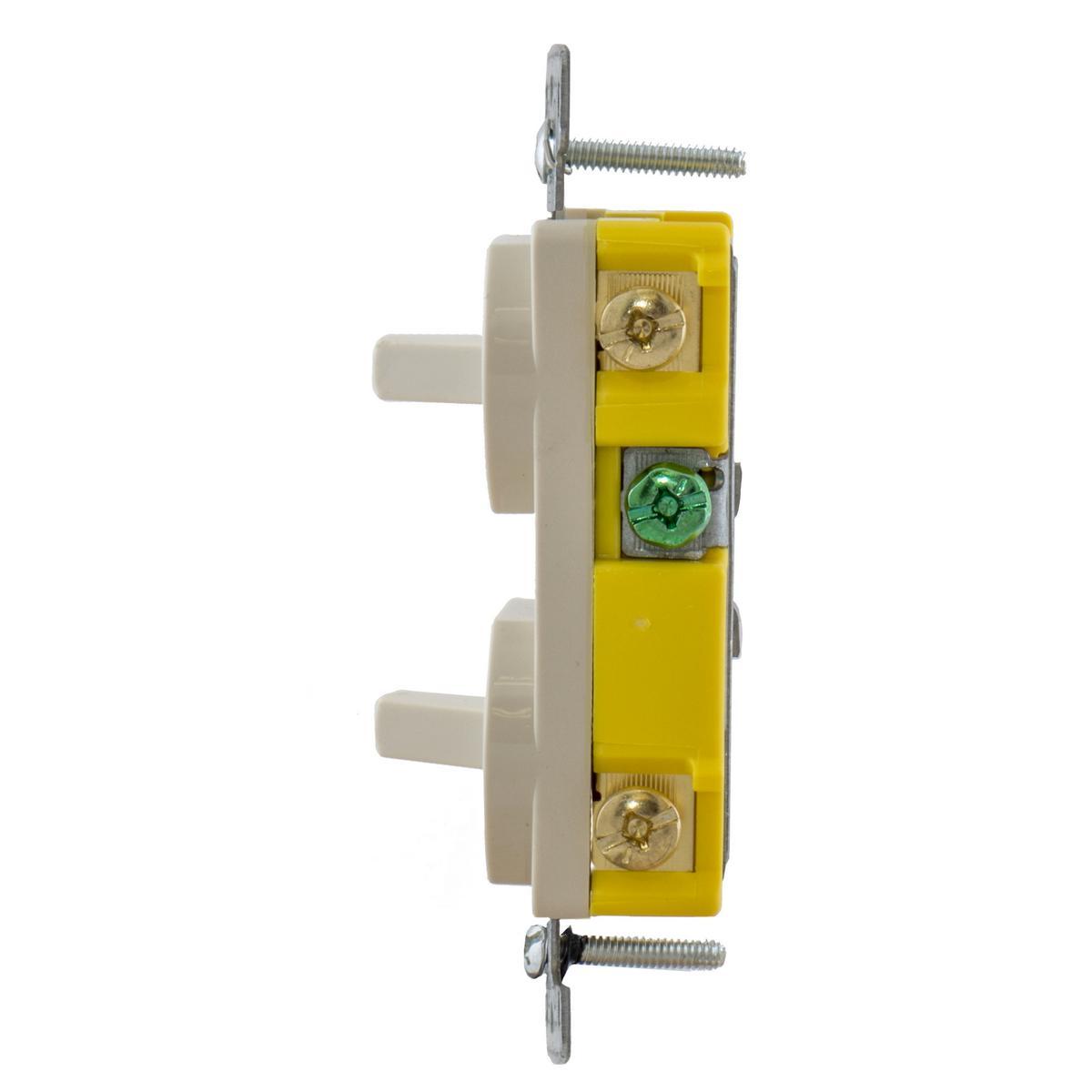

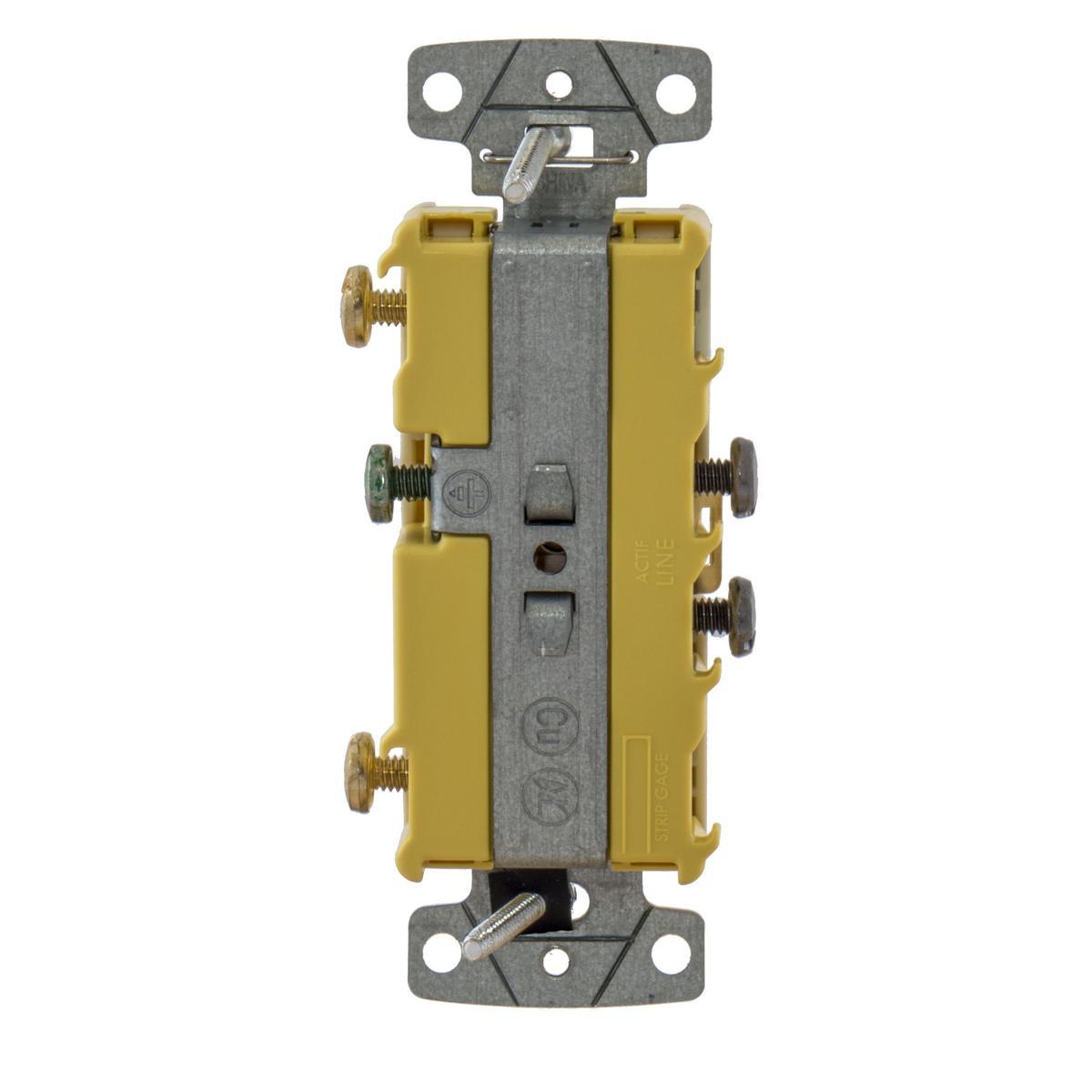

Wiring Device-Kellems RC101LA Traditional 2-Position Standard Switch Combination Device

Product Description

The Wiring Device-Kellems RC101LA is a switch combination device featuring a two-position standard design. This device operates at 120 VAC with an electrical rating of 15 A and a maximum load of 1800 W. It includes a one-pole configuration with two 1-pole toggle contacts. The device is suitable for various applications due to its robust design and reliable performance.

• Electrical Ratings: 120 VAC, 15 A, 1800 W
• Operating Temperature: -20 to 60 degrees C without impact
• Threaded mounting for secure installation

Product Highlights

The RC101LA is designed for indoor use and is ideal for replacing traditional switches. Its composite material ensures durability and consistency in operation.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Size: 4.2 inches H x 1.32 inches W x 1.53 inches D
• Type: 2-Position Standard Traditional
• Material: Composite
• Mounting: Threaded
• Contact Configuration: (2) 1-Pole Toggle
• Contact Rating: 15 A
• Operating Cycles: 30000 Cycles
• Number of Poles: 1
• Environmental Conditions: -20 to 60 degrees C without impact
