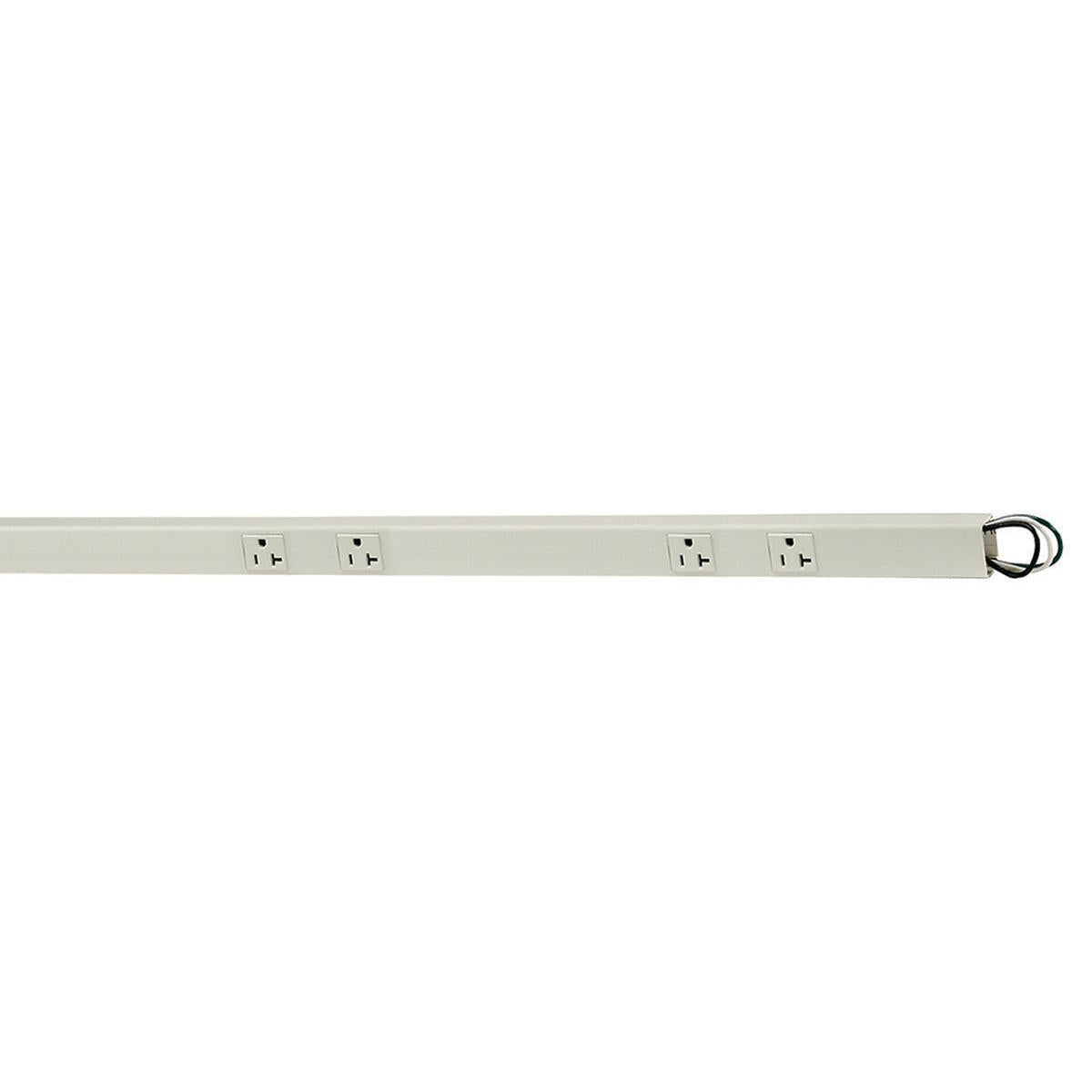

Wiring Device-Kellems PT206112 PlugTrak 1-Phase 1-Circuit Non-Metallic Raceway

Product Description

The Wiring Device-Kellems PT206112 is a non-metallic raceway designed for efficient electrical wiring. It features a fully insulated, pre-wired system for permanent installation. With a length of six feet, a width of one and one-half inches, and a height of one and one-half inches, this raceway supports a variety of electrical applications.

• Permanently installed for safety and reliability.
• Designed with a duplex outlet and a 1-circuit configuration.
• Rated for 20 A and 2500 W operations.

Product Highlights

This raceway offers an operating voltage of 125 VAC and functions well in temperatures from negative twenty-five point six to one hundred fifty-eight degrees Fahrenheit. It is suitable for use in various environments and is easy to install using hole mounting.

Product Information

Standard Information

• Manufacturer: Hubbell
• Part Number: PT206112 HW

Technical Specifications

• Type: 1-Phase 1-Circuit Fully Insulated Pre-Wired Permanently Installed Standard
• Color: Off-White
• Length: 6 ft
• Width: 1-1/2 in
• Height: 1-1/2 in
• Mounting Type: Hole
• Outlet Configuration: 1-Circuit
• Outlet Rating: 20 A, 2500 W, 60 Hz
• Voltage Rating: 125 VAC
• Temperature Rating: -25.6 to 158 deg F
• Series: PT2
