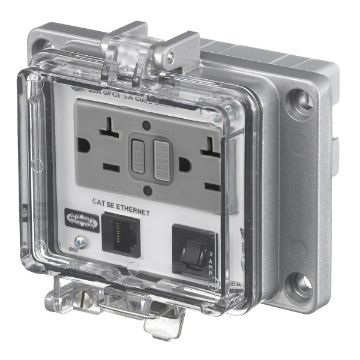

Wiring Device-Kellems PR205EB HWD Plug-In Standard Screw Mount Signal and Control Combination Outlet 125 V 20 A NEMA 12/4

Product Description

The Wiring Device-Kellems PR205EB is a plug-in standard screw mount signal and control combination outlet. This device operates at one hundred twenty-five volts and twenty amps. It has a NEMA twelve/four rating and features a clear/gray composite design.

• Includes a Cat 5e data jack and a twenty amp GFCI receptacle with a three amp circuit breaker.
• Designed for high protection from arc flash hazards and electrical shock.
• Measures four point one inches in width, three point six inches in depth, and five point one inches in height.

Product Highlights

The outlet provides a secure and safe connection for data and control circuits in various applications.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Type: 1-Input/2-Output Plug-In Standard Screw Mount
• Voltage Rating: 125 V
• Amperage Rating: 20 A
• Number of Poles: 1
• Enclosure: NEMA 12/4
• NEMA Rating: 4X
• Material: Composite
• Dimensions: 4.1 in W x 3.6 in D x 5.1 in H
• Country of Origin: US
