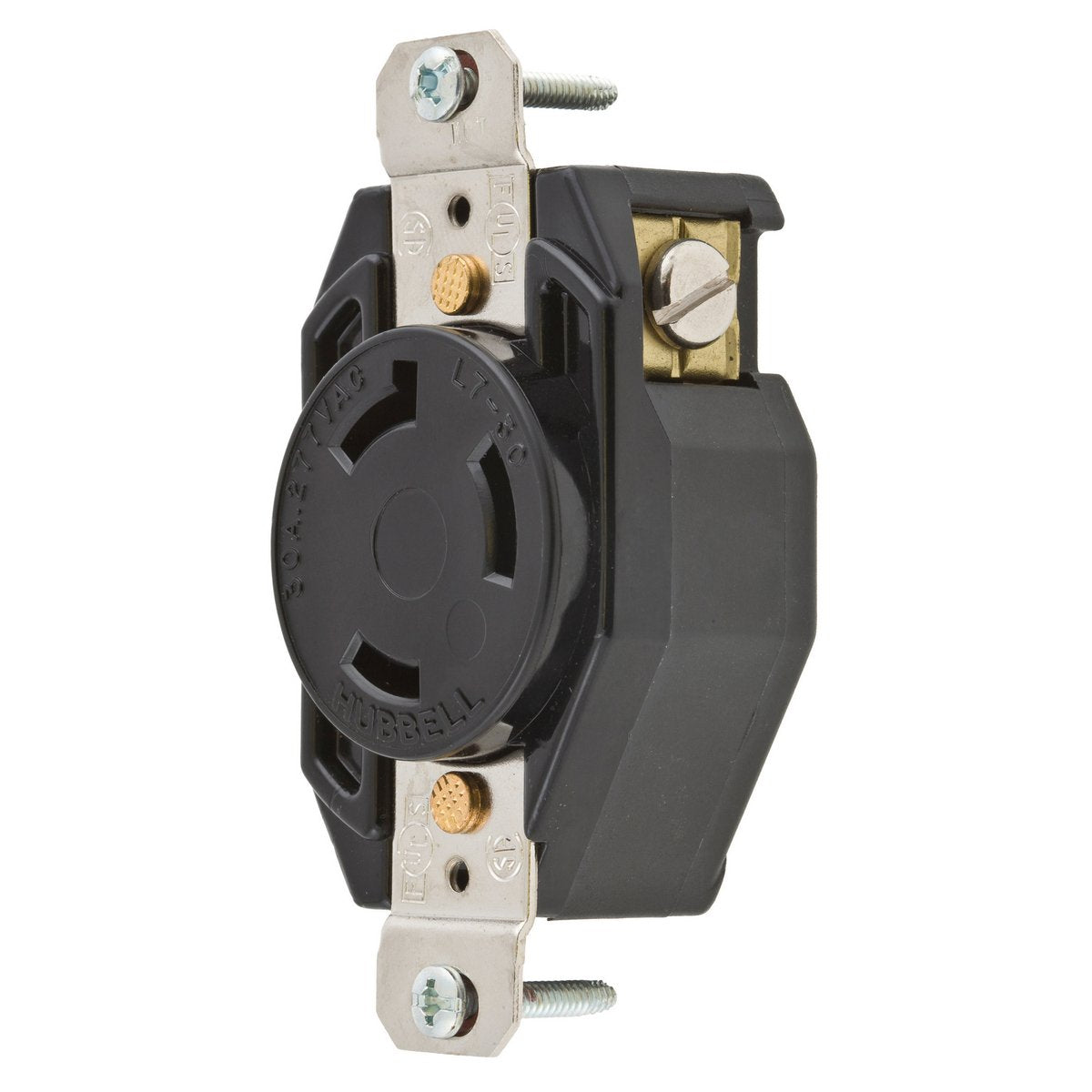

Wiring Device-Kellems L720R Locking Receptacle 277 VAC 20 A 2 Poles 3 Wires

Product Description

The Wiring Device-Kellems L720R is a heavy-duty locking receptacle designed for 277 VAC applications. This receptacle features a two-pole, three-wire configuration and is suitable for various electrical setups. Install it where secure connections are vital in commercial and industrial settings.

• Heavy-duty construction for reliable use
• Temperature range of -40 to 85 degrees Celsius
• Compatible with 14-12 AWG conductor sizes

Product Highlights

The L720R is engineered for both safety and durability. The screw terminal connection allows for straightforward electrical wiring, and the NEMA L7-20R configuration ensures compatibility with specific plugs.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: Twist-Lock Devices

Technical Specifications

• Amperage: 20 A
• Voltage: 277 VAC
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Material: Thermoplastic
• Operating Temperature: -40 to 85 degrees C
• Wattage: 5540 Watt
• Wire Size: 14-12 AWG
