Wiring Device-Kellems L720R HWD Twist Lock Locking Receptacle 277 VAC 20 A

Product Description

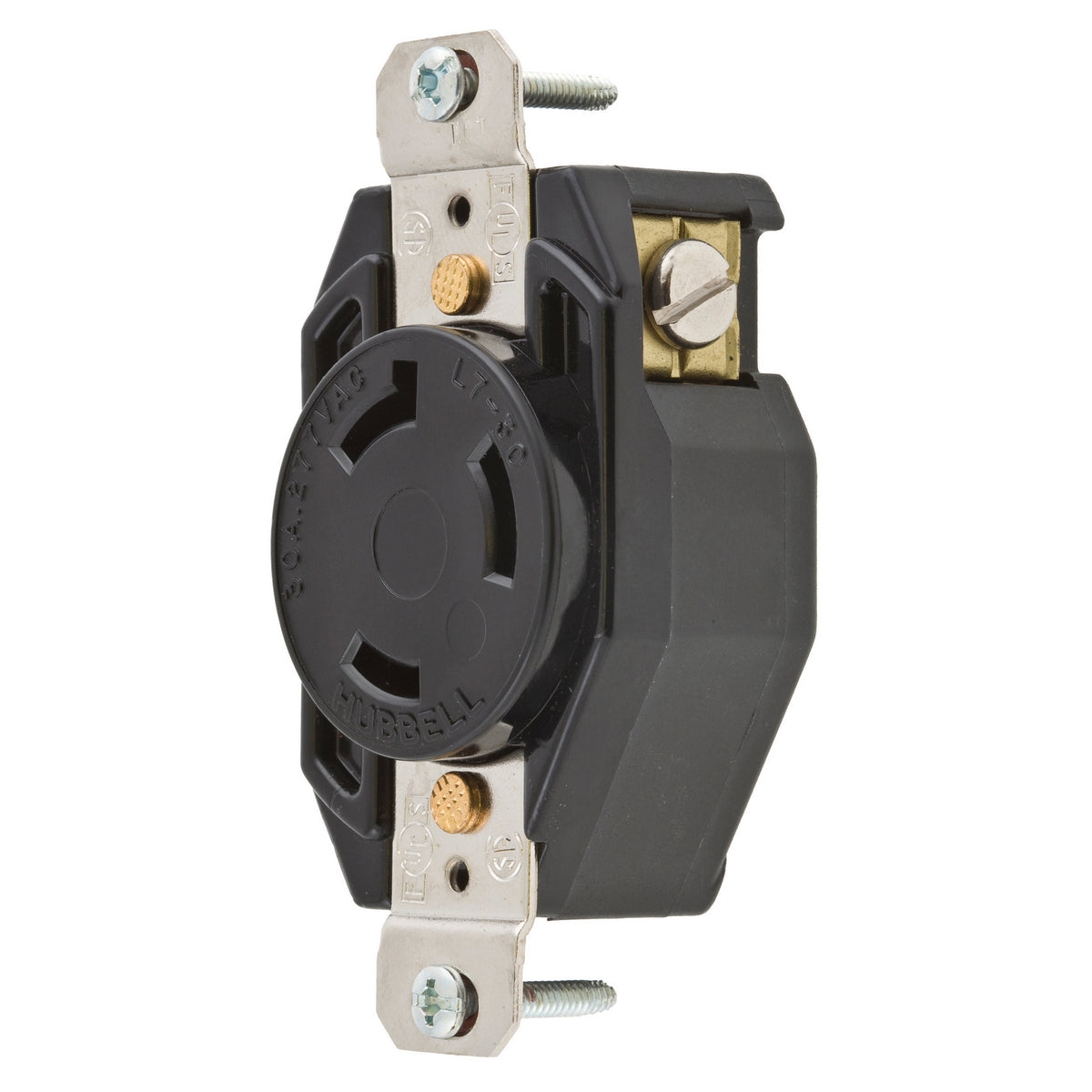

The Wiring Device-Kellems L720R is a heavy-duty locking receptacle designed for industrial applications. It operates at 277 VAC with a current rating of 20 A. The L720R features a two-pole and three-wire configuration, suitable for various wiring needs.

• Durable thermoplastic construction
• NEMA L7-20R rating for reliable performance
• Temperature rating from -40 to 85 degrees Celsius

Product Highlights

This locking receptacle is ideal for use in industrial, MRO, and OEM applications. It is suitable for powering floor equipment, ceiling power drops, and extension cords.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Part Number: L720R HWD

Technical Specifications

• Voltage Rating: 277 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Terminal Type: Screw
• NEMA Rating: L7-20R
• Material: Thermoplastic
• Dimensions: 1.703 inches wide x 1.234 inches deep
