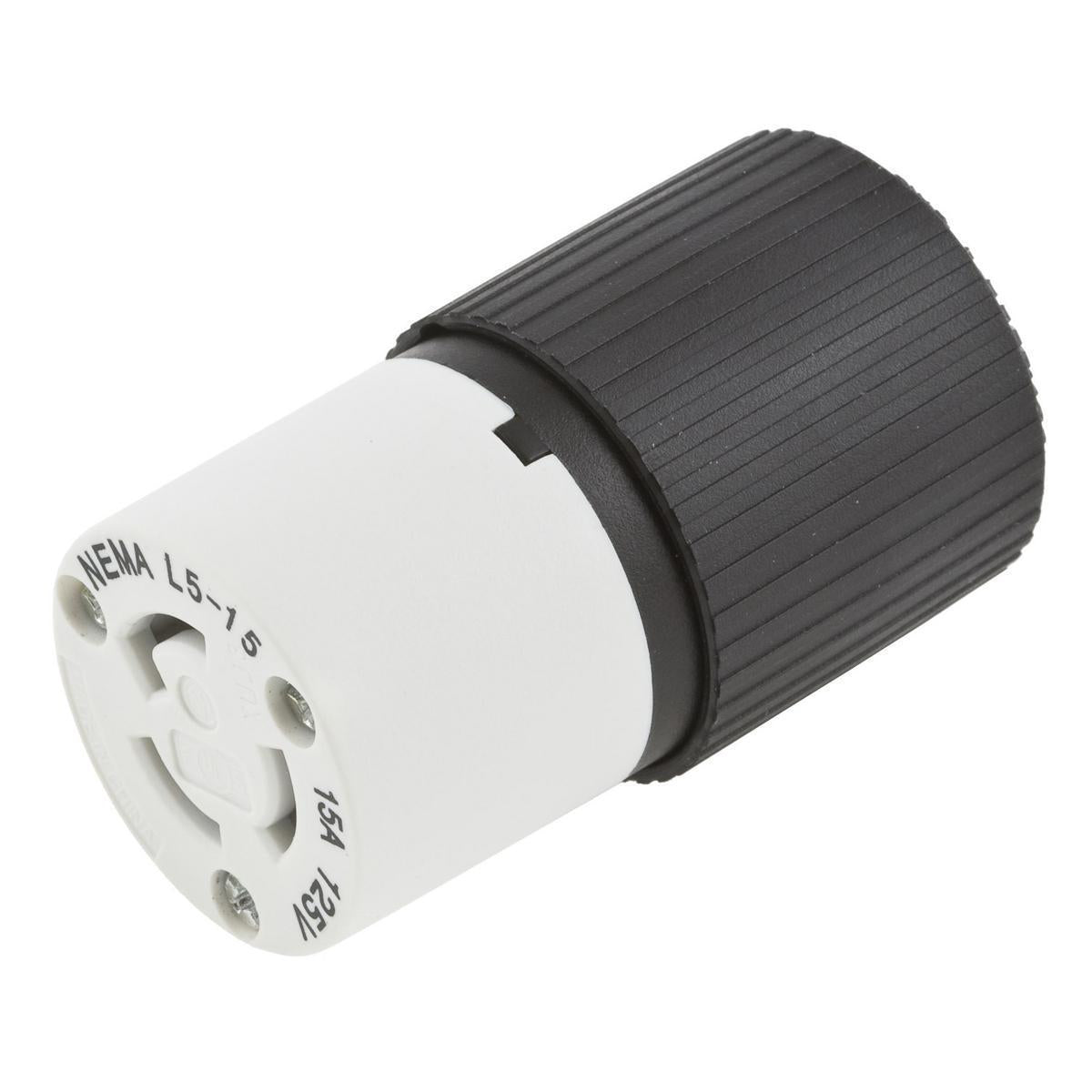

Wiring Device-Kellems L515C wiring device 125 VAC 15 A L5-15R/WD1/WD5

Product Description

The Wiring Device-Kellems L515C is a Twist-Lock® Hubbell-Pro™ Select Spec female connector designed for heavy-duty applications. This connector features isolated grounding and is suitable for standard-sized cord mounting. It operates at 125 VAC and can handle up to 15 A with a rating for two poles and three wires. The L5-15R/WD1/WD5 NEMA rating ensures compatibility with various commercial and industrial setups.

• Voltage rating: 125 VAC
• Amperage rating: 15 A
• Temperature rating: From -40 to 75 degrees Celsius

Product Highlights

This connector is ideal for use in both commercial and industrial environments. It is built with a composite material for durability and long-lasting performance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Grade: Commercial/Industrial
• Material: Composite
• NEMA Rating: L5-15R/WD1/WD5
• Terminal Type: Screw
• Type: Heavy Duty Isolated Grounding Standard Sized Cord Mount
• Number of Poles: 2
• Number of Wires: 3
• Color: Black/White
