Wiring Device-Kellems L1620R 3-Phase Heavy Duty Grounding Single Standard Screw Mount

Product Description

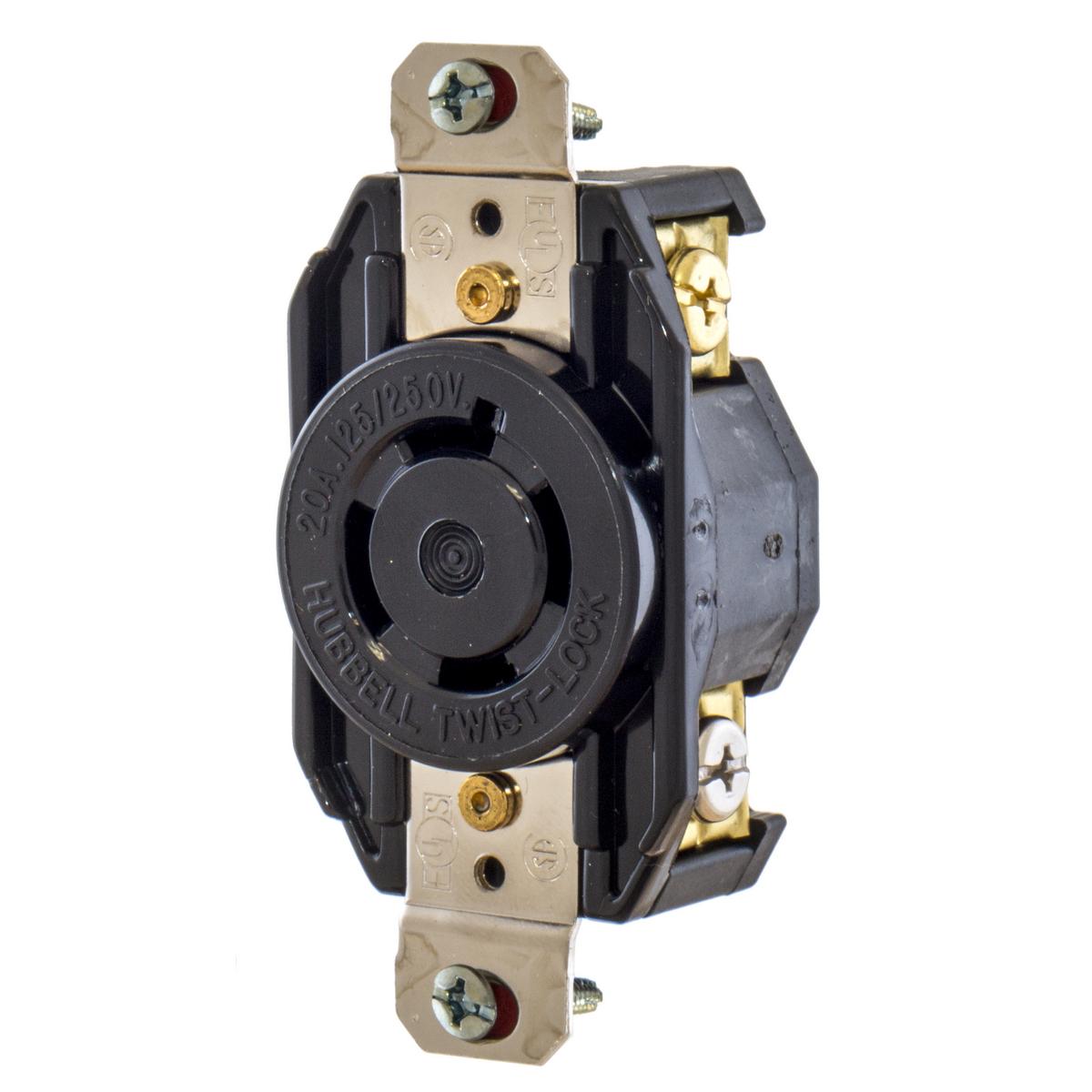

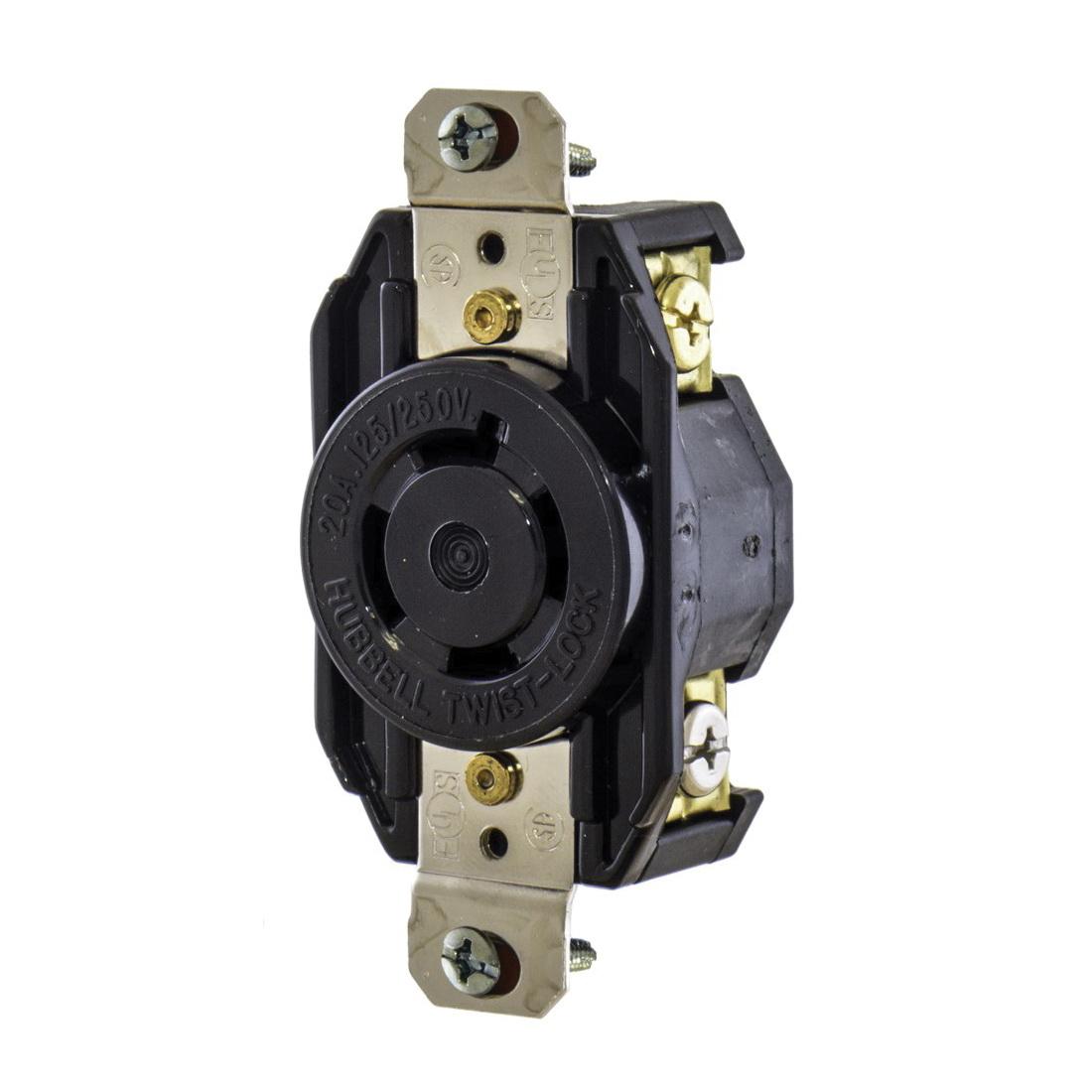

The Wiring Device-Kellems L1620R, manufactured by Hubbell, is a locking receptacle designed for reliable electrical connections. This device is built for a safe disconnect solution between equipment loads and power sources. It features a locking mechanism that engages and disengages through rotation, ensuring a secure connection.

• Voltage rating of 480 VAC
• 20 A amperage rating with three poles and four wires
• Durable thermoplastic construction suitable for industrial use

Product Highlights

This locking receptacle is made for heavy-duty applications and can operate under extreme conditions, with a temperature rating from negative forty to eighty-five degrees Celsius. Its design meets the NEMA L16-20R rating, making it ideal for various industrial environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 3-Phase Heavy Duty Grounding Single Standard Screw Mount
• Color: Black
• Grade: Industrial
• Material: Thermoplastic
• Dimensions: 1.703 inches W x 1.234 inches D
• NEMA Rating: L16-20R
• Temperature Rating: -40 to 85 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
