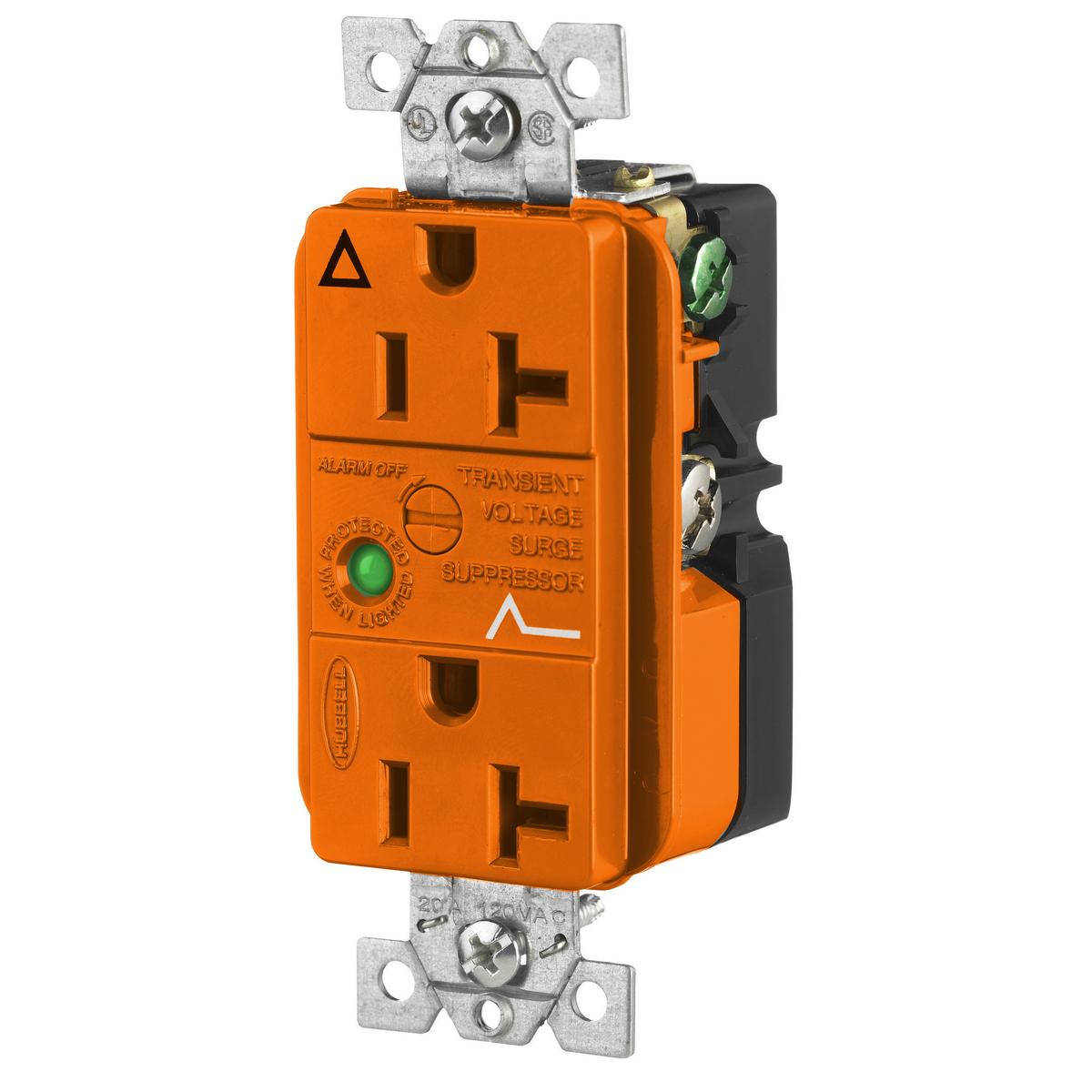

Wiring Device-Kellems IG5362OSA IG Series Isolated Ground Standard Duplex Receptacle 125 VAC 20 A 60 Hz

Product Description

Wiring Device-Kellems IG5362OSA is a duplex receptacle designed for isolated ground applications. This product is made by Hubbell and features a voltage rating of 125 VAC, current rating of 20 A, and operates at a frequency of 60 Hz. The receptacle is suitable for use in various environments, making it an essential component for electrical installations.

• Duplex receptacle features two 22 mm square disc MOVs providing surge protection
• Nylon shield protects PC board from moisture
• LED and audible alarm indicators for power availability

Product Highlights

This wiring device ensures reliable performance in demanding conditions. It includes an automatic self-grounding staple, screw terminal connection, and is UL 94 V-2 flammability rated.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Class: Common/Normal Mode
• Color: Orange
• Connection: Screw Terminal
• Environmental Conditions: UL 94 V-2 Flammability Rated
• Material: Composite
• Mounting: Threaded
• Operating Temperature: 32 to 140 deg F
• Outlet: Straight Blade
• Response Time: 5 ns
• Series: IG Series
• Size: 1.75 in W x 1.23 in D
• Type of Indicators: LED/Audible Alarm
• Type: Isolated Ground Standard
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Frequency Rating: 60 Hz
• Phase: 1 ph
