Wiring Device-Kellems IG5262 HW Wiring Device-Kellems SpikeShield® 125 VAC 1-Phase Duplex Extra Heavy Duty Isolated Ground Standard Traditional Screw Mount

Product Description

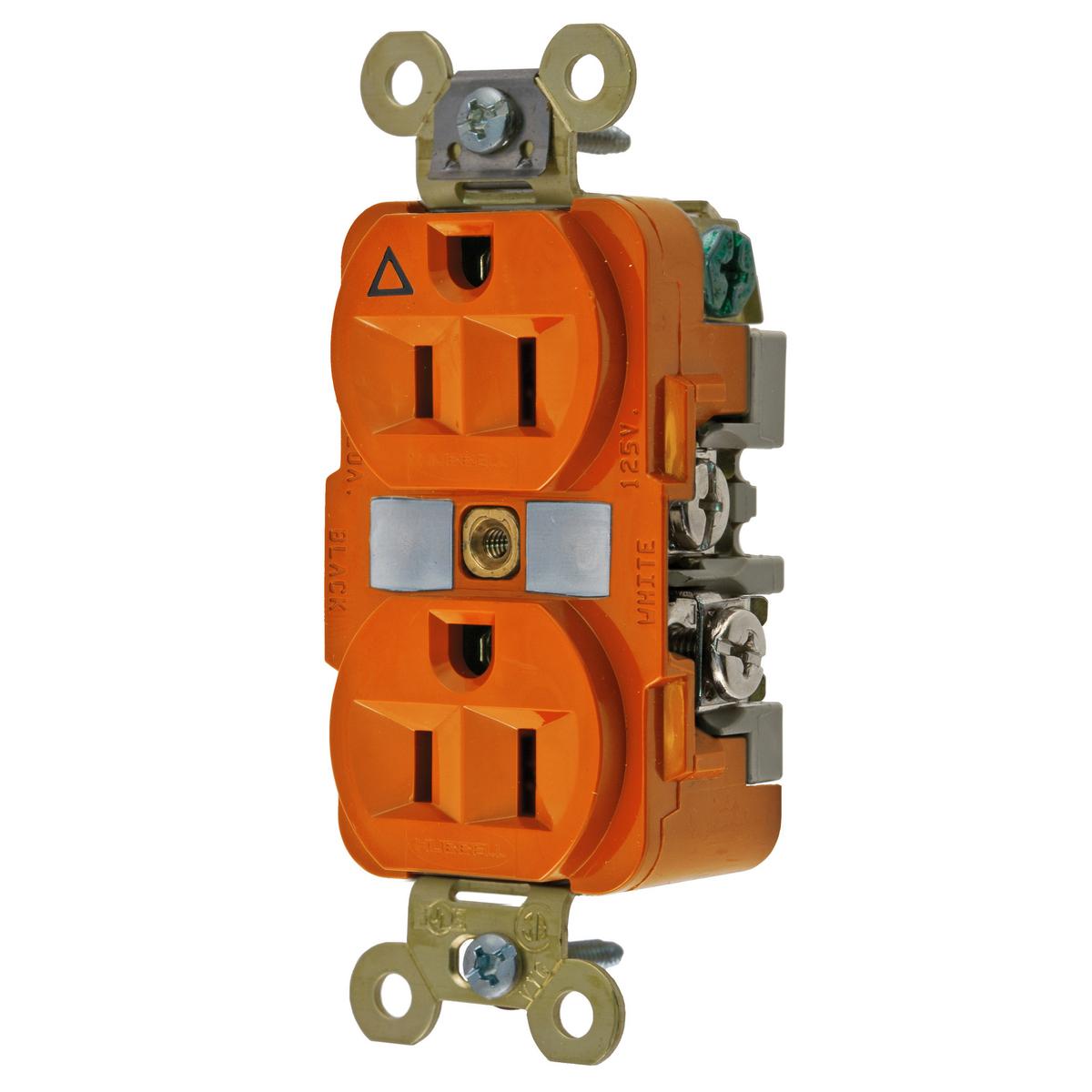

Wiring Device-Kellems IG5262 is a heavy-duty isolated ground receptacle designed for use in various commercial and industrial applications. The device uses patented insulation barrier construction to keep ground contacts separate from the mounting strap. This ensures a clean and noise-free ground, which is essential for many electrical systems. The green grounding screw connects directly to grounding contacts for effective isolation. The dedicated insulated ground wire completes the isolated ground circuit.

Key Features

• Insulation barrier construction isolates ground contacts from mounting strap
• Back and side wire/screw terminal for easy installation
• Temperature rating of -40 to 75 degrees Celsius

Product Highlights

This receptacle is ideal for environments where noise-free operation is critical. Suitable for both commercial and industrial settings, it withstands heavy-duty use.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Duplex Extra Heavy Duty Isolated Ground Standard Traditional Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Horsepower: 1/2 hp
• NEMA Rating: 5-15R
• Dimensions: 3.28 x 1.33 x 1.05 in
• Material: Nylon
• Color: Orange
• Temperature Rating: -40 to 75 degrees Celsius
• Number of Poles: 2
• Number of Wires: 3
• Grade: Commercial/Industrial/Specification
• Terminal Type: Back and Side Wire/Screw
