Wiring Device-Kellems HBLDS6AC Circuit-Lock Non-Fusible Standard Disconnect Switch 600 V 60 A 50 hp

Product Description

The Wiring Device-Kellems HBLDS6AC is a Circuit-Lock enclosed disconnect switch. It features a two-position non-fusible design, suitable for use in various electrical applications. This disconnect switch operates at 600 V with a maximum amperage of 60 A and supports up to 50 horsepower. It is constructed to meet safety standards with a NEMA 4X enclosure, ideal for both indoor and outdoor use.

• Two-position contact form for operational flexibility
• Foot-mounted installation for ease of setup
• Lever actuator for straightforward operation

Product Highlights

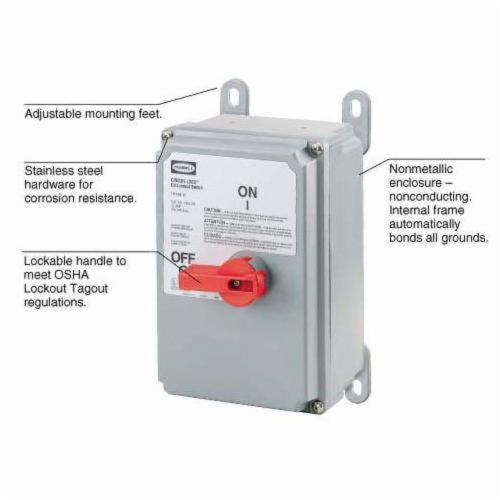

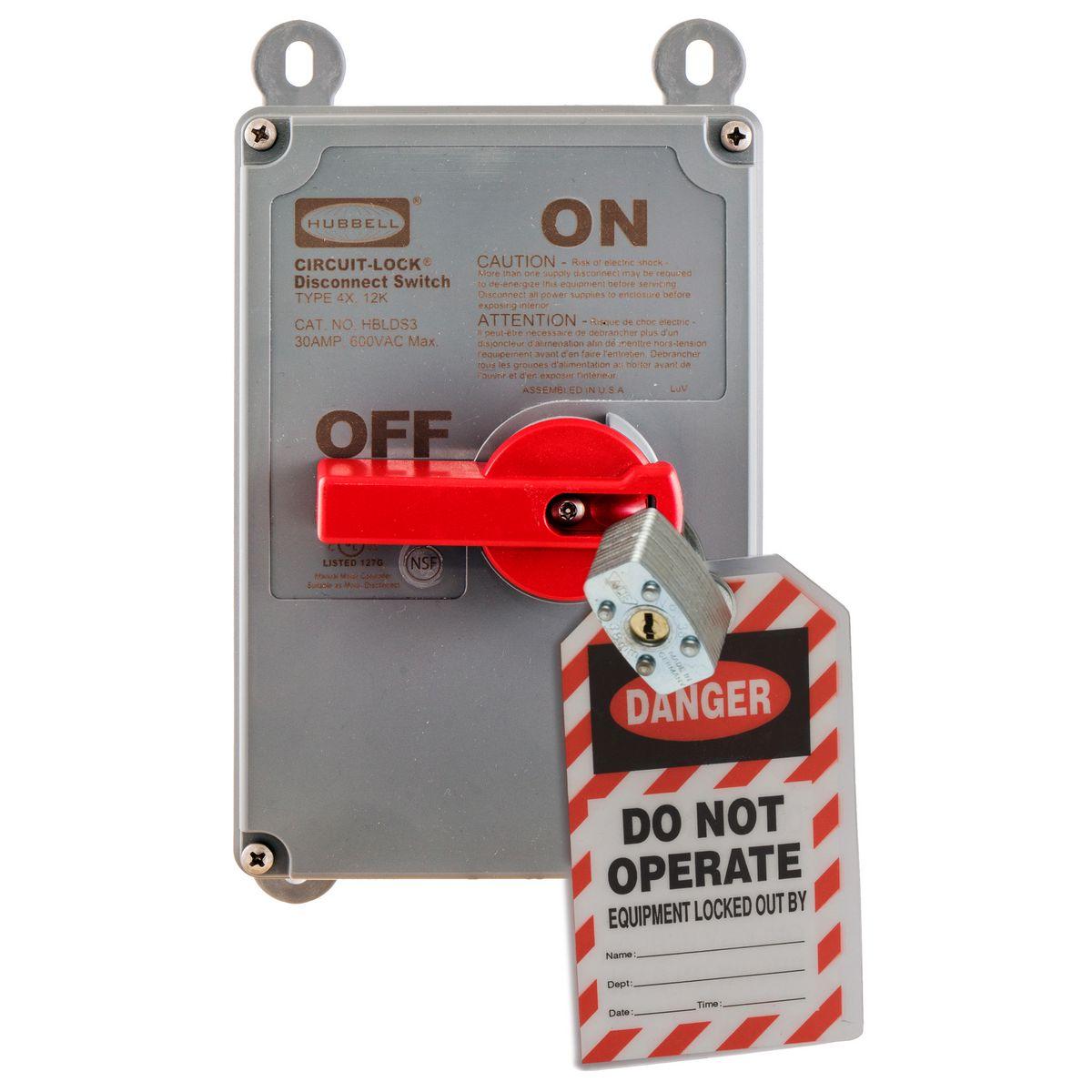

This disconnect switch is designed for both safety and durability, with features like a lockable handle to comply with OSHA regulations and a non-metallic enclosure for corrosion resistance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 2-Position Non-Fusible Standard
• Voltage Rating: 600 V
• Amperage Rating: 60 A
• Horsepower: 50 hp
• Frequency Rating: 60 Hz
• Number of Poles: 3
• Number of Wires: 3
• Enclosure Type: NEMA 4X
• Actuator Type: Lever
• Mounting Type: Foot
• Terminal Type: Screw
• Color: Gray
• Material: Composite
• Temperature Rating: -40 to 75 deg C
• Dimensions: 11 x 7.75 x 5.94 in
