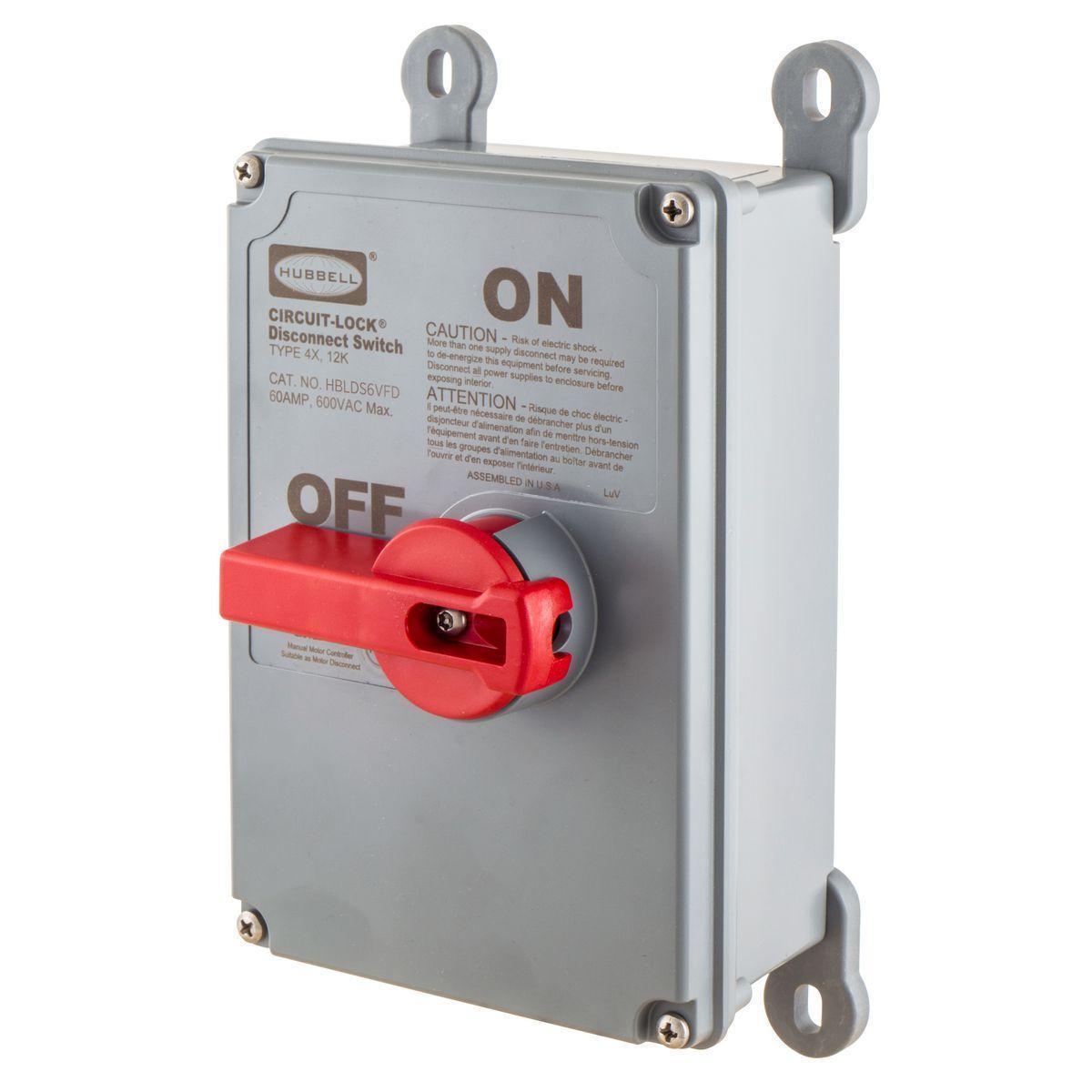

Wiring Device-Kellems HBLDS6 Circuit-Lock 600 V 60 A 40 hp 2-Position Labelless Unfused Standard

Product Description

The Wiring Device-Kellems Circuit-Lock Disconnect Switch HBLDS6 by Hubbell is designed for reliable performance in industrial settings. It offers a labelless, unfused standard disconnect switch rated for six hundred volts and sixty amps. The switch operates at a horsepower of forty and features a two-position contact form. This switch is ideal for applications requiring safety and compliance.

• 2-Position labelless design for ease of use and installation.
• NEMA 4X enclosure suitable for harsh environments.
• Temperature range from -40 to 75 degrees Celsius.

Product Highlights

The HBLDS6 is built to withstand demanding work conditions and features highly visible operation controls. The laser-marked covers ensure that ratings are permanently displayed, enhancing safety and compliance.

Product Information

Standard Information

• Type: 2-Position Labelless Unfused Standard
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator Type: Lever
• Color: Gray
• Dimensions: 11 x 7.75 x 5.94 inches
• Enclosure Type: NEMA 4X
• Frequency Rating: 60 Hz
• Material: Composite
• Mounting Type: Foot
• Number of Wires: 3
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Voltage Rating: 600 V
• Amperage Rating: 60 A
• Horsepower: 40 hp
• Contact Form: 2-Position
• Number of Poles: 3
