Wiring Device-Kellems HBLDS3VFD 2-Position Industrial Grade Labelless Non-Metallic Standard Unfused 600 V

Product Description

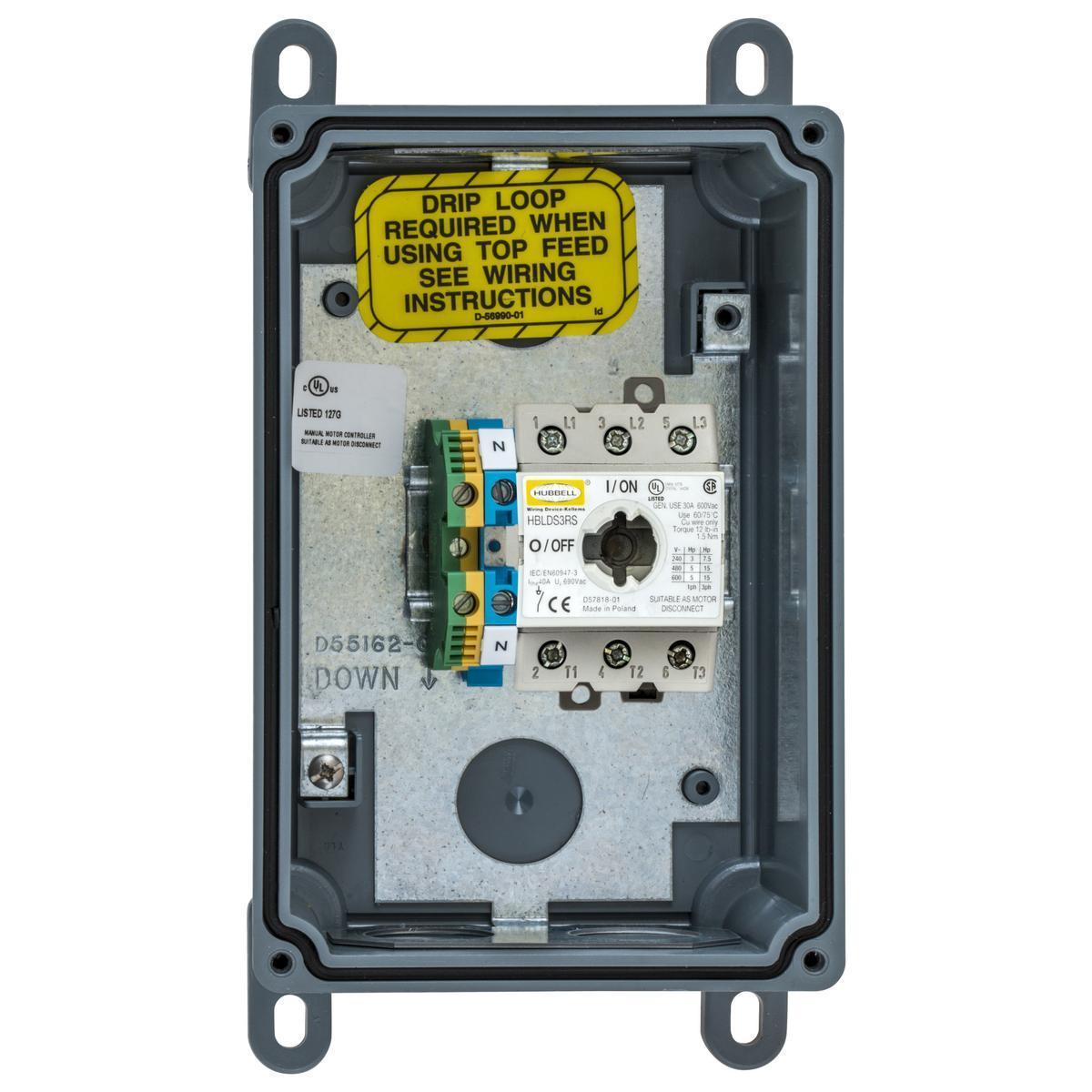

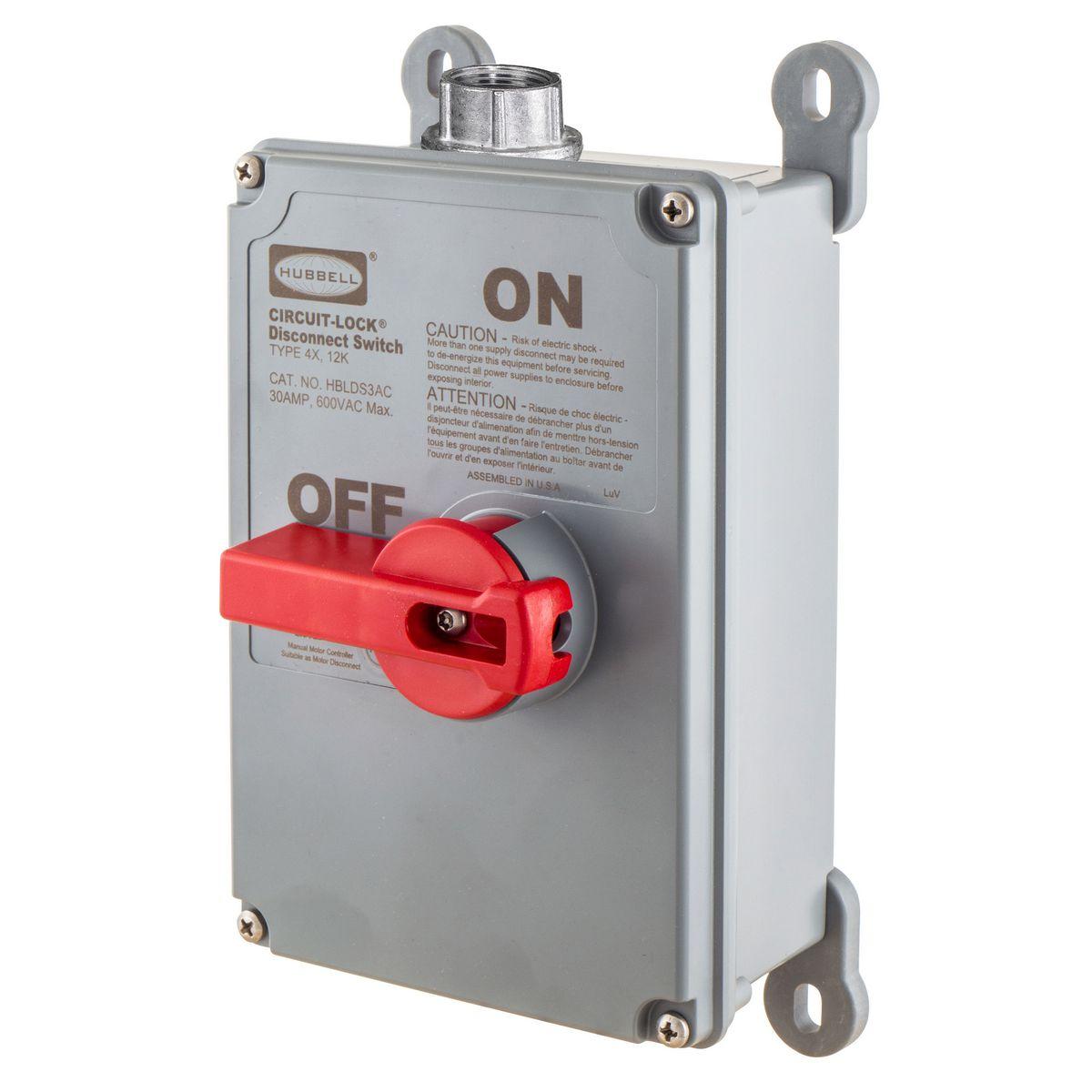

Hubbell Circuit-Lock HBLDS3VFD is a 2-Position Industrial Grade Labelless Non-Metallic Disconnect Switch. This device is suitable for disconnecting power in various industrial applications. It can handle a maximum voltage of six hundred volts and has an amperage rating of thirty amps, making it adequate for most machinery needs.

• Durable non-metallic design suitable for harsh environments
• Meets OSHA lockout/tagout compliance
• Internal frame ensures bonding of all grounds

Product Highlights

Built for challenging conditions, this switch features a molded enclosure that is resistant to corrosion and UV rays. Designed for foot mounting, it includes a lever actuator for easy operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 2-Position Industrial Grade Labelless Non-Metallic Standard Unfused
• Voltage Rating: 600 V
• Amperage Rating: 30 A
• Horsepower: 15 hp
• Number of Poles: 3
• Frequency Rating: 60 Hz
• Dimensions: 8.5 x 6 x 4.12 in
• Material: Composite
• Temperature Rating: -40 to 75 deg C
• Short Circuit Current Rating: 65 kA
• Enclosure Type: NEMA 4X
• Actuator Type: Lever
• Mounting Type: Foot
• Terminal Type: Screw
