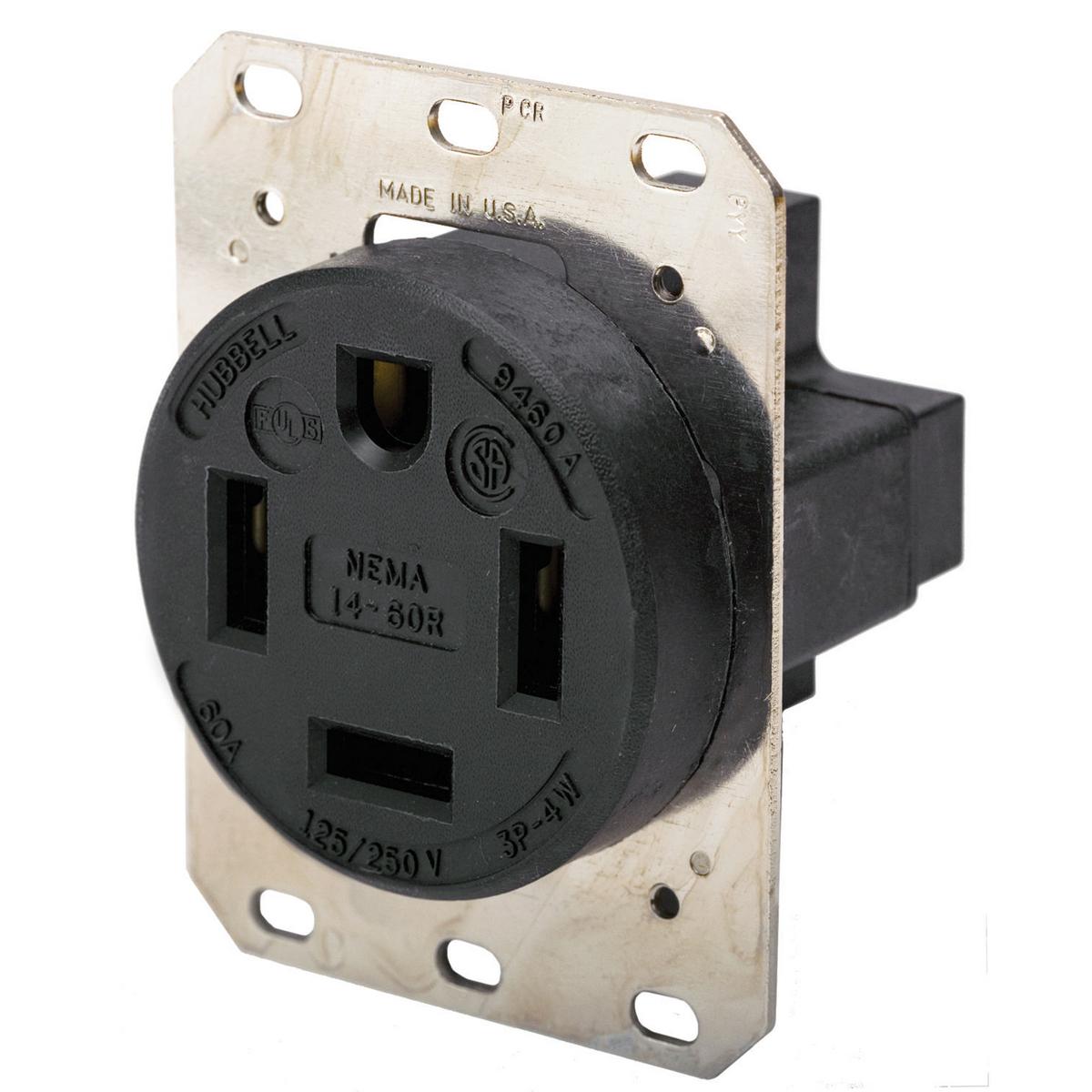

Wiring Device-Kellems HBL9460A 1-Phase Grounding Heavy Duty Standard Single Screw Mount Receptacle 14-60R

Product Description

The Wiring Device-Kellems HBL9460A is a straight blade receptacle designed for heavy-duty applications. This model supports one-phase grounding and features a standard single screw mount. Rated at 125/250 VAC and sixty amperes, it is suitable for various industrial tasks.

• Heavy-duty design for demanding environments
• Supports back and side wire connections
• Compatible with different wire types and sizes

Product Highlights

Ideal for industrial use, the HBL9460A is built to withstand tough conditions. It operates effectively in temperatures ranging from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• MPN: HBL9460A
• Voltage Rating: 125/250 VAC
• Amperage Rating: 60 A
• Dimensions: 3.28 x 2.75 x 2.44 inches
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: 14-60R
• Temperature Rating: -40 to 75 degrees Celsius
• Material: Thermoplastic/Composite
• Type: 1-Phase Grounding Heavy Duty Standard Single Screw Mount
• Grade: Industrial
