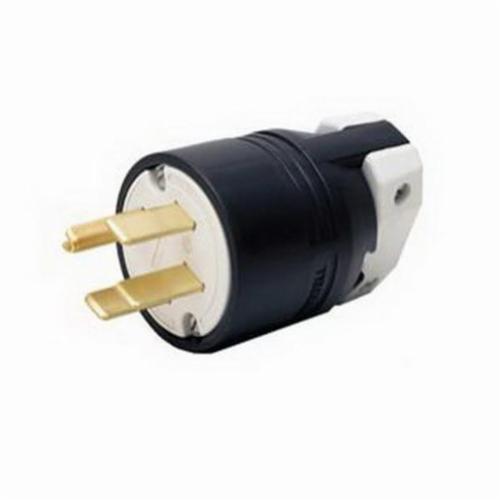

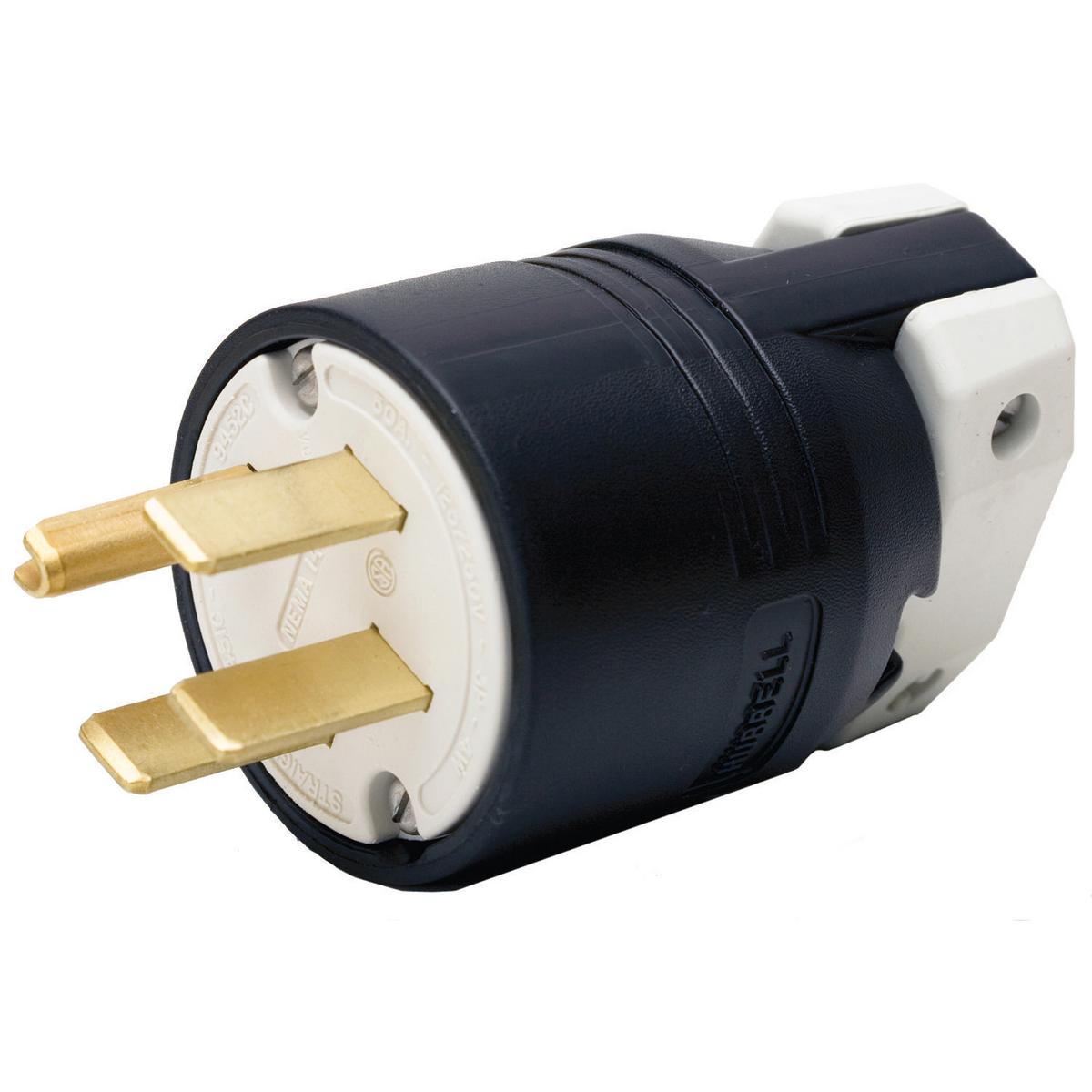

Wiring Device-Kellems HBL9451C 1-Phase Grounding Male Standard Cord Mount Straight Blade Plug 125/250 VAC 50 A

Product Description

The Wiring Device-Kellems HBL9451C is a straight blade plug designed for 1-phase grounding applications. This male standard cord mount plug operates at a voltage of 125/250 VAC and has a current rating of 50 A. It features three poles and four wires and is suitable for use in commercial and industrial settings.

• Suitable for cords ranging from zero point six two five to one point three one inches in diameter
• Constructed with nylon for durability and performance
• Maintains performance from negative forty to seventy-five degrees Celsius

Product Highlights

This plug is built for heavy-duty use. Its high-quality materials ensure reliable connections in various environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Horsepower: 3 hp
• Voltage Rating: 125/250 VAC
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Black
• Material: Nylon
• NEMA Rating: 14-50P
• Enclosure: IP20
• Cord Diameter: 0.625 to 1.31 in
• Dimensions: 4.13 x 2.88 x 2.88 in
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
