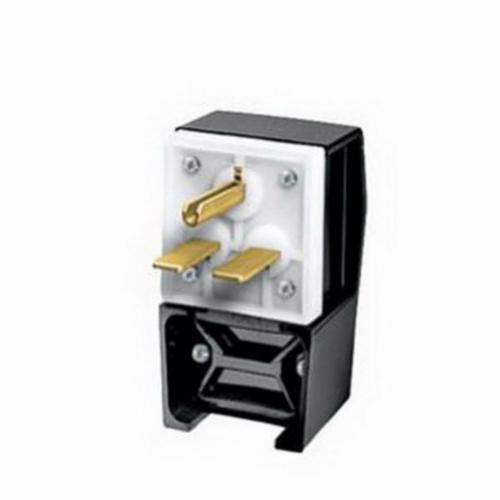

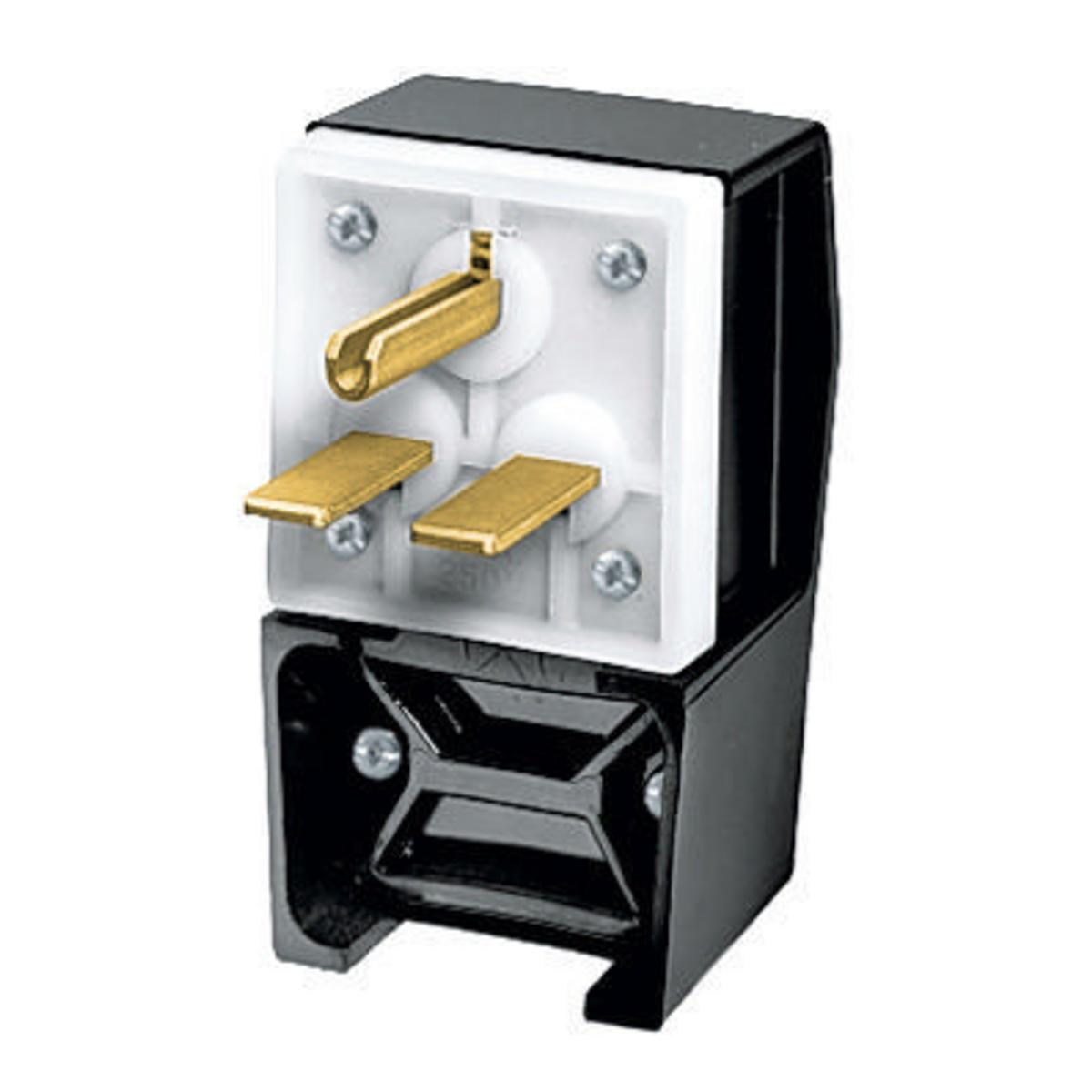

Wiring Device-Kellems HBL9331 Insulgrip Power Plug 250 VAC 30 A 2 Poles 3 Wires

Product Description

The Wiring Device-Kellems Insulgrip HBL9331 is a 1-phase grounding male standard cord mount straight blade plug rated for 250 VAC and 30 A. This plug is designed for use in commercial and industrial settings. It features a NEMA 6-30P rating, making it suitable for a variety of applications.

• IP20 enclosure rating for durability
• Temperature range from -40 to 75 degrees Celsius
• Compatible with cords of 0.625 to 1.187 inches in diameter

Product Highlights

This plug provides reliable connections and is built to withstand heavy usage, ensuring safety and efficiency in electrical systems.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Grounding Male Standard Cord Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Horsepower: 2 hp
• Number of Poles: 2
• Number of Wires: 3
• Enclosure: IP20
• Dimensions: 4.34 x 2.75 x 1.88 inches
• Cord Diameter: 0.625 to 1.187 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Material: Thermoplastic/Composite
• NEMA Rating: 6-30P
• Terminal Type: Screw
