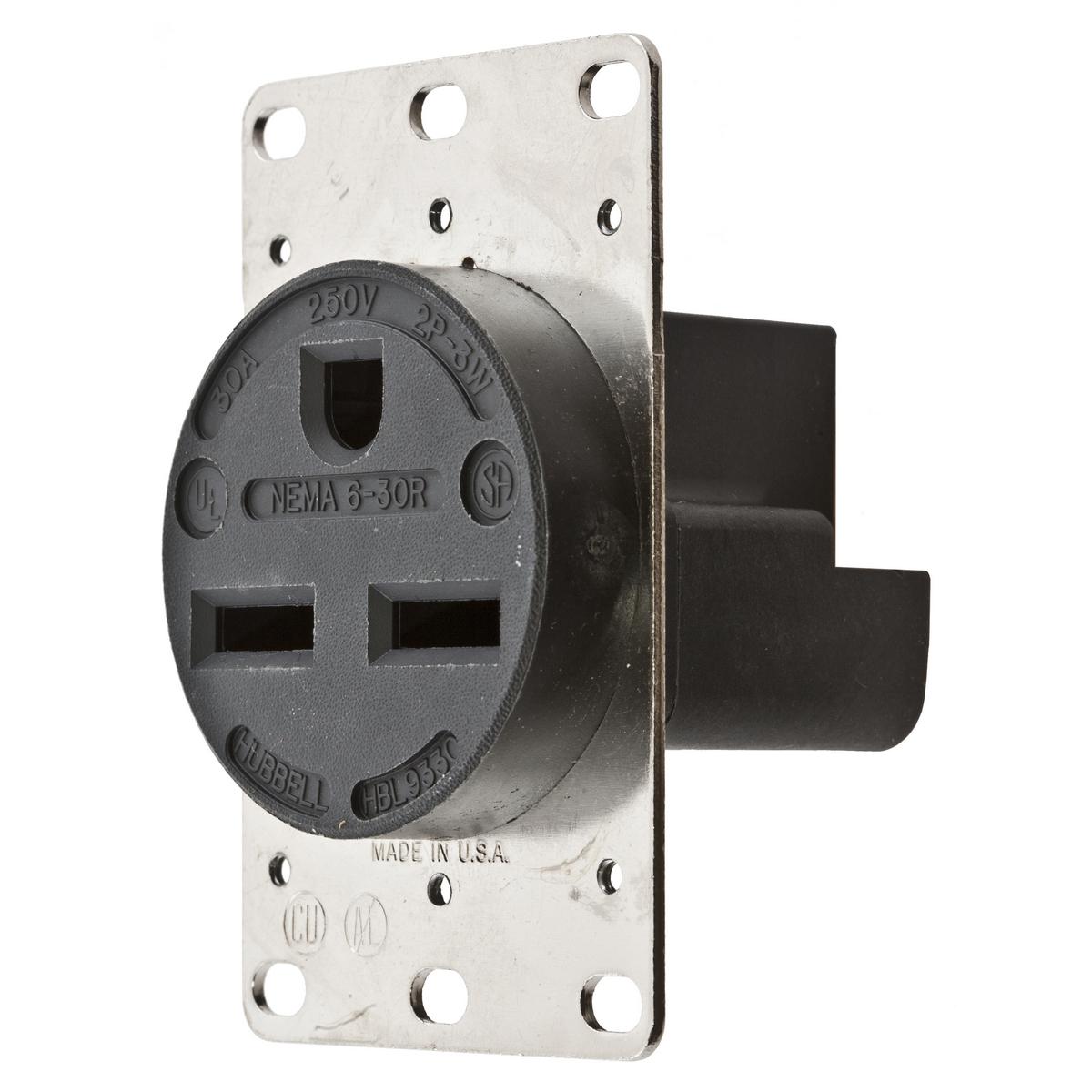

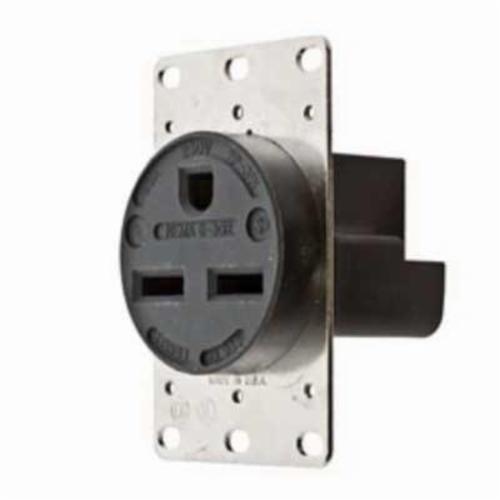

Wiring Device-Kellems HBL9330 Heavy Duty Receptacle 250 VAC 30 A 2 Poles 3 Wires

Product Description

The Wiring Device-Kellems HBL9330 is a heavy-duty single screw mount receptacle designed for reliable electrical connections. It operates at 250 VAC with a current rating of 30 A, featuring two poles and three wires. The receptacle is suitable for use in various applications that require robust electrical performance.

• Heavy duty construction for longevity
• Compatible with 10 to 4 AWG conductor terminals
• IP20 rated enclosure for environmental protection

Product Highlights

This wiring device is ideal for industrial settings where a secure and efficient power supply is necessary. The device is rated for full load current interruptions and features a temperature tolerance from -40 to 75 degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 3.28 x 2.25 x 2.23 inches
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 2 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 6-30R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Back and Side Wire/Screw
• Type: 1-Phase Grounding Heavy Duty Standard Single Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Black
