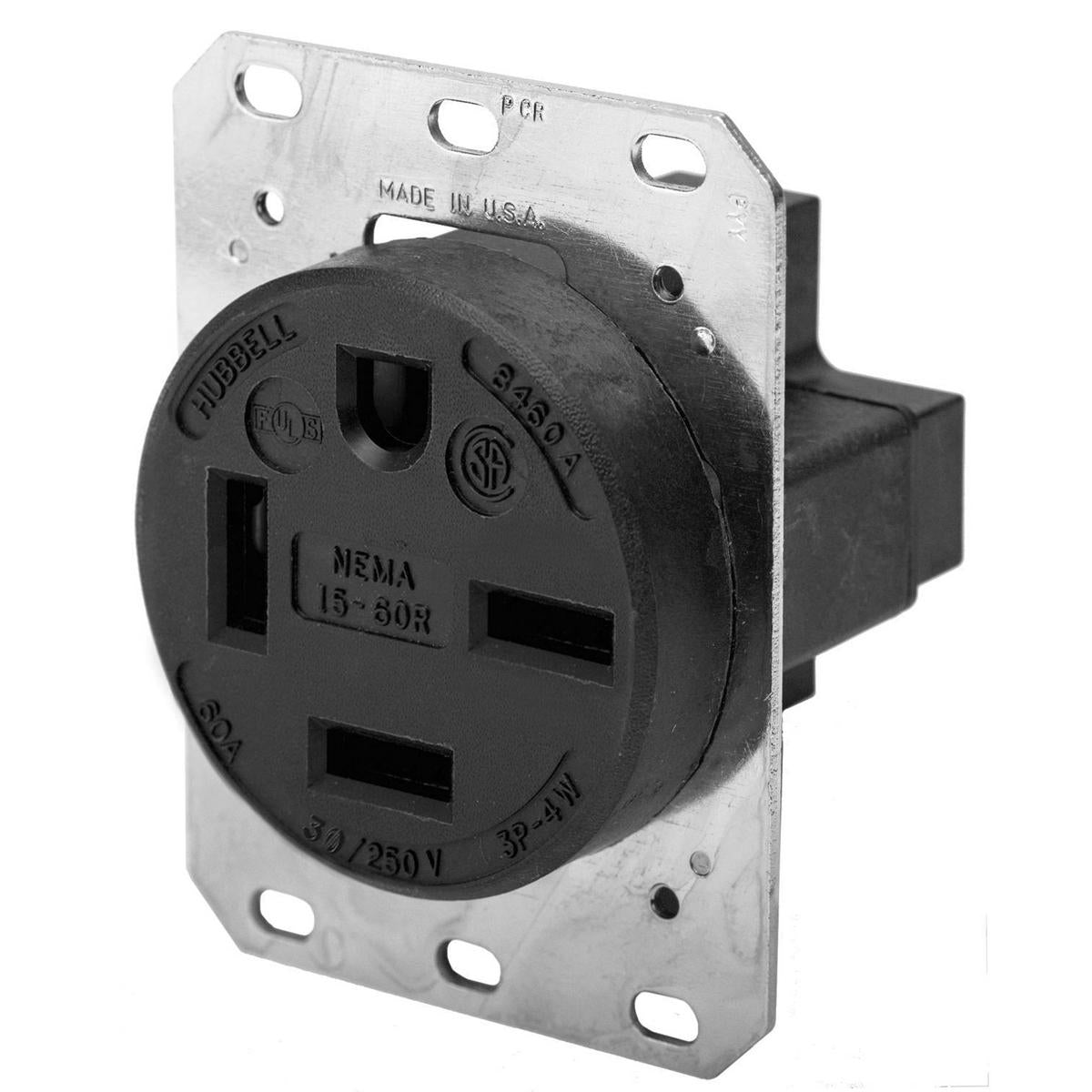

Wiring Device-Kellems HBL8460A 250 VAC 60 A Straight Blade Receptacle

Product Description

The Wiring Device-Kellems HBL8460A is a reliable straight blade receptacle designed for heavy-duty applications. It supports 3-phase electrical systems with a voltage rating of two hundred fifty volts alternating current (VAC) and an amperage rating of sixty amps. This receptacle is suitable for industrial environments, featuring a robust design that incorporates thermoplastic and composite materials.

• 3-Phase heavy-duty grounding
• Back and side wired screw terminals
• Temperature rating from minus forty to seventy-five degrees Celsius

Product Highlights

This model is equipped with a NEMA rating of fifteen-sixty R and supports conductors from twelve to six American Wire Gauge (AWG). It has an industrial-grade IP20 enclosure, ensuring durability and safety in demanding conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 2.75 in W x 2.44 in D x 3.28 in H
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 10 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 15-60R
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Back and Side Wire/Screw
• Type: 3-Phase Heavy Duty Grounding Single Standard Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 60 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Black
