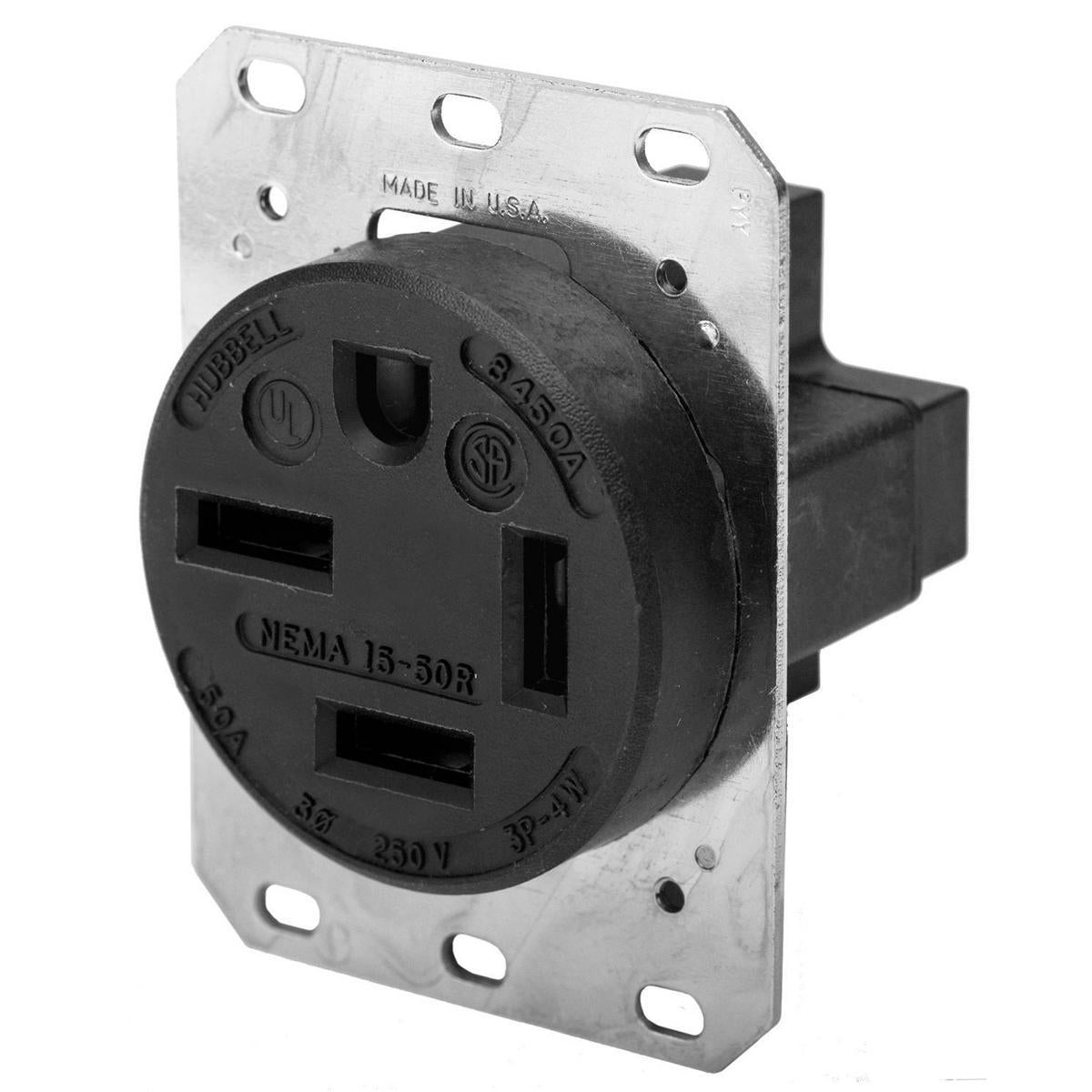

Wiring Device-Kellems HBL8450A HBL® 3-Phase Heavy Duty Single Standard Grounding Screw Mount

Product Description

The Wiring Device-Kellems HBL8450A is a straight blade receptacle suitable for heavy-duty applications. It is designed for three-phase power with a voltage rating of two hundred fifty volts AC and a current rating of fifty amps. This receptacle features a single standard grounding screw mount.

• 3 poles and 4 wires configuration
• Back and side wire/screw terminal for ease of installation
• Durable thermoplastic/composite construction

Product Highlights

The HBL8450A is ideal for industrial environments where reliable power distribution is needed. With its robust design, it can withstand harsh conditions while maintaining safety and performance.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Dimensions: 2.75 in L x 2.44 in W x 3.69 in H
• Enclosure: IP20
• Grade: Industrial
• Horsepower: 7.5 hp
• Material: Thermoplastic/Composite
• NEMA Rating: 15-50R
• Series: HBL®
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Back and Side Wire/Screw
• Type: 3-Phase Heavy Duty Single Standard Grounding Screw Mount
• Voltage Rating: 250 VAC
• Amperage Rating: 50 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Black
