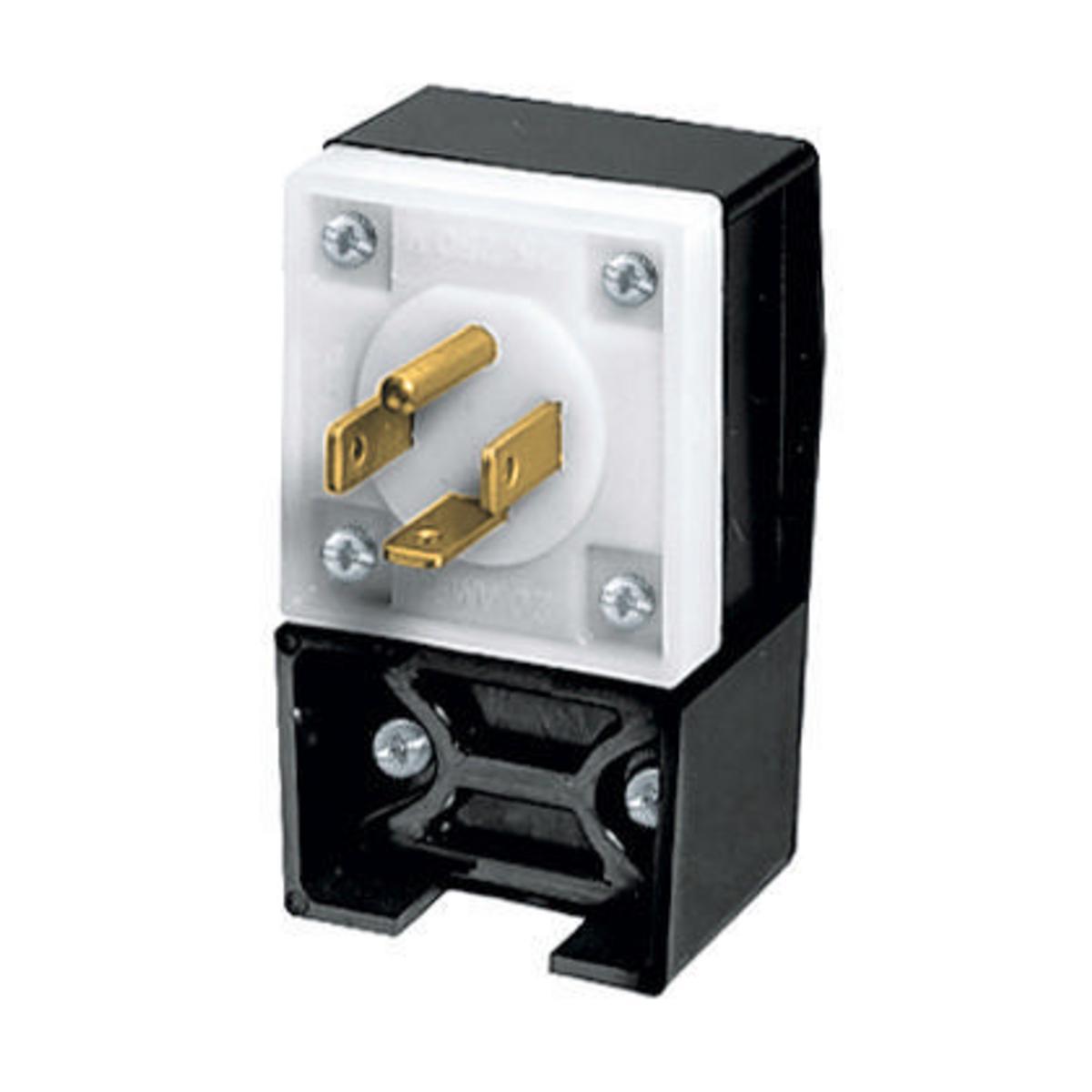

Wiring Device-Kellems HBL8411C Straight Blade Plug 1-Phase Grounding Male Standard Cord Mount 14-20P

Product Description

The Wiring Device-Kellems HBL8411C is a straight blade plug designed for reliable connectivity in various applications. This plug features a one-phase grounding male standard cord mount suited for use at voltages of one hundred twenty-five to two hundred fifty VAC and a current rating of twenty amperes.

• Compatible with 14-20P NEMA rating
• Commercial and industrial grade components
• Constructed for use in temperatures ranging from -40 to 75 degrees Celsius

Product Highlights

This plug serves as a durable connection point for heavy-duty electrical devices, ensuring efficient power delivery in challenging environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Cord Diameter: 0.39 to 0.775 inches
• Dimensions: 3.64 x 2.34 x 1.61 inches
• Enclosure: IP20
• Grade: Commercial/Industrial
• Horsepower: 2 hp
• Material: Composite
• NEMA Rating: 14-20P
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Type: 1-Phase Grounding Male Standard Cord Mount
• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• Color: Black
